- Page 1 Countertop Dishwasher HME010393N...
- Page 2 Defective product should be clearly marked or stored where it cannot be used again by mistake. Failure to retain the product may impede hOme ’s ™ ability to correct any legitimate problem and may limit the extent to which hOme may provide recourse.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions Installation Parts Description Operating Instructions 10-20 Cleaning and Maintenance 21-22 Troubleshooting 23-24 Specifications Warranty Manufacturing Info Contact Us... - Page 5 Congratulations on bringing home your new appliance! Don’t forget to register your product at homelabs.com/reg for updates, coupons, and other relevant information. Although greatly appreciated, product registration is not required to activate any warranty.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS / HOUSEHOLD USE ONLY GROUNDING INSTRUCTIONS • This dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. This dishwasher is equipped with a cord with grounding conductor and a grounding plug. -
Page 7: Installation
INSTALLATION POSITIONING THE DISHWASHER ATTENTION! All pipe and electrical equipment installation should be done by professionals. WARNING! ELECTRICAL SHOCK HAZARD Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock. Position your dishwasher in your desired location with its back resting against a wall and the sides adjacent to cabinets or walls. - Page 8 INSTALLATION WATER CONNECTION Back of Dishwasher: 1. Drain Port 2. Power Cord 3. Inlet Port Your dishwasher comes equipped with a ‘quick connect’ assembly that includes an inlet and drain hose. The faucet adapter must be installed on the faucet before you can connect the dishwasher. This adapter is included inside your dishwasher.

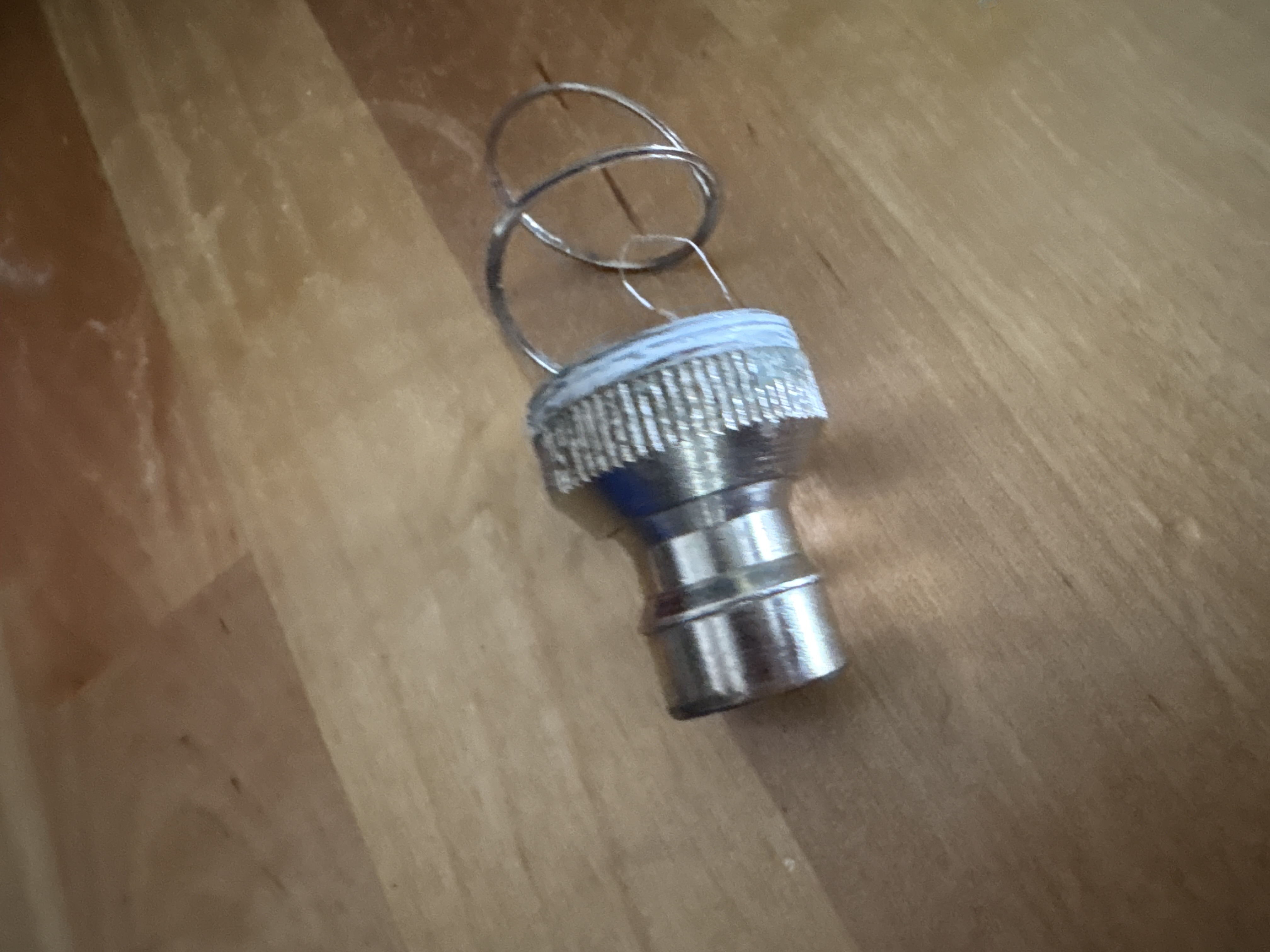

- Page 9 INSTALLATION POSITIONING THE DISHWASHER WATER CONNECTION 1. S crew the faucet adapter onto or into the faucet tap. Check for leaks. If there are any leaks, use Teflon tape to seal them. Faucet adapter has thread size of 55/64''–27 female or 15/16''–27 male threads, if the supplied faucet adapter is not fitting with your faucet, please find another adapter in local hardware store. 2. Connect the hexagonal connector of the drain hose to the drain port on the back of the dishwasher. Do not over tighten to avoid damage to its threads. 3.
-
Page 10: Parts Description
PARTS DESCRIPTION GETTING TO KNOW YOUR DISHWASHER IMPORTANT: to get the best performance from your dishwasher, read all operating instructions for the dishwasher prior to first use. CONTROL PANEL Control Buttons 1. Power: Turn on or turn off the dishwasher. 2. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS DISHWASHER FEATURES 1. Cup Shelf 4. Filter 7. Spray Arms 2. Basket 5. Cutlery Basket 8. Inlet Pipe Connector 3. Detergent Dispenser 6. Rinse Aid Dispenser 9. Drain Pipe Connector IMPORTANT: If the display shows E4 and/or water leaks from the base of the dishwasher, unplug the power, tilt the product at a slight angle to drain the water, and then remove and clean the filter. - Page 12 OPERATING INSTRUCTIONS HOW TO USE THE RINSE AID DISPENSER What is the Rinse Aid Dispenser? The rinse aid dispenser holds and releases a special liquid during your dishwasher’s final rinse cycle to help dishes dry quickly and without any streaks. You can find the rinse aid dispenser inside your dishwasher next to the detergent dispenser.
- Page 13 OPERATING INSTRUCTIONS ADJUSTING THE RINSE AID DISPENSER NOTE: Increase the level if there are water droplets or lime spots on your dishes after a wash cycle. Reduce it if there are white spots on your dishes, or a blue film on glassware and cutlery. Adjust lever (Rinse) HOW TO USE DETERGENT Why is Detergent Important? Detergent is necessary to clean your dishes. It’s important to only use detergent specifically made for dishwashers.
- Page 14 OPERATING INSTRUCTIONS HOW TO USE DETERGENT DISPENSER How Do I Use the Detergent Dispenser? Refill the dispenser before the start of each wash cycle, following the instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent than a conventional dishwasher, so you generally only need one tablespoon of detergent for a normal load. Note that dirtier dishes will need more detergent. Always add the detergent just before starting the dishwasher.
- Page 15 OPERATING INSTRUCTIONS HOW TO LOAD THE DISHWASHER BASKETS Recommendations • Buy dishwasher-proof utensils. • Use a mild detergent. If necessary, check your detergent manufacturer to make sure it is safe for all dishware. • For delicate items, choose a low temperature program. •...
- Page 16 OPERATING INSTRUCTIONS HOW TO LOAD THE DISHWASHER BASKETS Position the dishes and cookware so that they will not be moved by the spray of water. Cups Serving Bowls Glasses Saucers Fruit Bowls Oval Platter Small Plates Dinner Plates Cutlery Basket Basket Plate Racks The basket is fitted with plate racks that can be stowed horizontally if required.
- Page 17 OPERATING INSTRUCTIONS HOW TO LOAD THE DISHWASHER BASKETS How Do I Load the Cutlery Basket? Cutlery should be placed in the basket with their handles facing downward towards the bottom. If there are side baskets, use them to load spoons individually into the appropriate slots. It’s important that long utensils are placed horizontally at the front of the basket.
- Page 18 OPERATING INSTRUCTIONS HOW TO SELECT A WASH CYCLE NOTE: ( ) THIS MEANS YOU NEED TO FILL THE RINSE AID DISPENSER. ( ) THIS IS THE TEST CYCLE. THE RINSE AID DISPENSER LEVEL IS RECOMMENDED AT “3.” WASH CYCLE TABLE Program Cycle Selection Description...
- Page 19 OPERATING INSTRUCTIONS HOW TO SELECT A WASH PROGRAM How Do I Change the Wash Program? You can change your wash cycle only if it has been running for a short time and the detergent has not yet been dispensed. If the detergent has already been dispensed, you will need to refill the dispenser again. See "How to Use Detergent" section for detailed instructions. To change the wash program, hold Start/Cancel button over three seconds.
- Page 20 OPERATING INSTRUCTIONS FILTERING SYSTEM INSTRUCTIONS How Does the Filtering System Work? The filter prevents larger remnants of food and other objects from getting inside the pump. Main filter Food particles trapped by this filter are pulverized by a special jet on the spray arm and washed down the drain. Fine filter This filter holds food residue in the sump area and prevents it from being deposited on the dishes during the wash cycle. Coarse filter This filter traps larger items, such as pieces of bone or glass, that could block the drain.
-
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE FILTERING SYSTEM IMPORTANT: Keeping your dishwasher filter clean is key to keeping your dishes clean. Make sure the filter is clean EVERY TIME before you using the dishwasher. Cleaning the filter helps prevent buildup and clogs and ensures your dishwasher run smoothly. • Inspect the filters for blockage after each wash cycle. • T o remove blockages, unscrew the coarse filter to remove the filter system. Remove any food and clean the filters under running water. • Clean the entire filter assembly once a week. • Use a cleaning brush to clean the coarse and fine filter. WARNING! When cleaning the filters, do not knock them against surfaces. This can contort the filters and affect the performance of your dishwasher. CARING FOR THE DISHWASHER • Use a lightly dampened cloth to clean the control panel. Dry thoroughly. •... - Page 22 CLEAN AND MAINTENANCE CARING FOR THE DISHWASHER How Do I Clean the Spray Arms? The spray arms can be easily removed for periodic cleaning to prevent possible clogging. To remove the spray arms, pull the middle of the arms upwards. Wash the spray arms under running water and carefully replace them in the dishwasher.
-
Page 23: Troubleshooting
TROUBLESHOOTING Review the following troubleshooting procedures before contacting the customer service. PROBLEM CAUSES SOLUTIONS Dishwasher doesn't Fuse blown, or Replace fuse or reset circuit breaker. Remove any other start circuit breaker tripped appliances sharing the same circuit with the dishwasher. Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely. - Page 24 POSSIBLE CAUSES Longer inlet time Faucets are not opened, water intake is restricted, or water pressure is too low. Some part of the dishwasher is leaking. Overflow Water is not being pumped Check Troubleshooting. from the dishwasher properly. WARNING! If overflow occurs, turn off the main water supply before calling hOme Customer Service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
-
Page 25: Specifications
(“warranty period”) on all of our products purchased new and unused from ™ hOme Technologies, LLC or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacturing, parts or workmanship during one-year warranty period. -
Page 26: Manufacturing Info
MANUFACTURING INFO This manual is to be used with all items with the model number HME010393N SKU# : HME010393N WARNING Keep all plastic bags away from children. CONTACT US CALL U S CHAT W ITH U S EMAIL US homelabs.com/chat 1-(800)-898-3002 help@homelabs.com... - Page 28 For Household 1-800-898-3002 © 2020 hOme Technologies, LLC help@homelabs.com 37 East 18 Street, 7th Floor Use Only homelabs.com/help New York, NY 10003...
