Red Stone GD9315BCW-5JA Owner's Manual

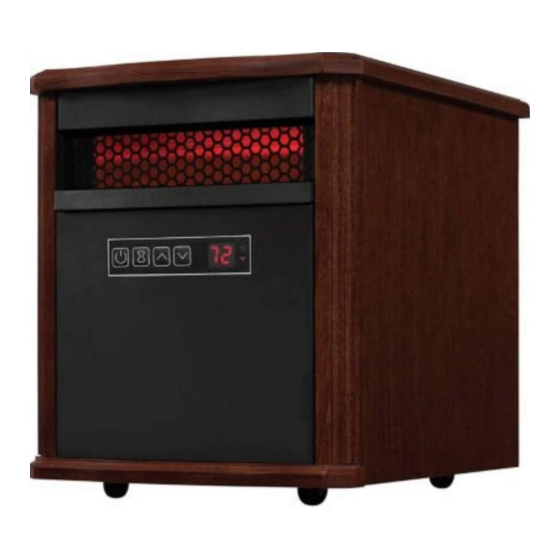

Infrared cabinet heater
Hide thumbs

Advertisement

Table of Contents

RedStone Infrared Cabinet Heater
OWNER'S MANUAL
Model No. GD9315BCW-5JA
SKU No. 1360375
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GD9315BCW-5JA and is the answer not in the manual?

Questions and answers

Tim Gulseth
February 13, 2025

Can’t find the reset button on the back of the unit

User image 67ad534264635
0
Don Shelly
February 20, 2025

when heater reaches set temp **** stops but heating elements stay on causing heater to trip reset switch

0

Related Manuals for Red Stone GD9315BCW-5JA

Summary of Contents for Red Stone GD9315BCW-5JA

  • Page 1 RedStone Infrared Cabinet Heater OWNER’S MANUAL Model No. GD9315BCW-5JA SKU No. 1360375 PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.
  • Page 2 Thank you for choosing our infrared cabinet heater. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS, BEFORE USING THE HEATER WARNING! ! POTENTIAL FOR ELECTRICAL HAZARD IF NOT ADHERED TO! When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read ALL instructions before using this unit.
  • Page 4 12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames. 13. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

  • Page 5: Specifications

    SPECIFICATIONS Voltage Rating 120 V (60Hz) Power 1500W Consumption Unit Size 13.39in. (W) ×11.81 in. (D) ×15.04in. (H) Unit Weight 17.24 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off.

  • Page 6: Product Diagram

    IN THE BOX ·INFRARED ZONE HEATING SYSTEM ·REMOTE CONTROL (2 AAA batteries not Included) ·INSTRUCTION BOOKLET PRODUCT DIAGRAM Air Intake Air Outlet Cord Clamp Wood cabinet Rolling Casters Power Switch...
  • Page 7 Control Panel 1、 ON/OFF button: Powers the display on and off.” 2、 Mode button: To select between High、Low and Eco modes.. 3、 Energy-saving mode indicator: Will be lit when energy-saving mode is engaged. 4、 Timer button: Used to engage timer mode and to set hour value for the timer. 5、...
  • Page 8 PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet. and turn on the power switch in the rear of the unit. Only operate heater in upright position with caster wheels attached. Insert 2 AAA batteries into the remote control before using (Batteries Not Included) OPERATING INSTRUCTIONS 1、Start and select working mode...
  • Page 9 2 、 Setting Desired Temperature Adjust the desired temperature by pressing the Up/Down arrows on the control panel or remote control. Desired temperature options vary from 59℉ to 86℉, or from 15℃ to 30℃. Once you have chosen the desired temperature, the heater will remain on until the room temperature increases to the temperature on the digital display.
  • Page 10 3 、 Setting the POWER OFF TIMER Function Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can only be set while the heater’s display is in the “On” position. Turn the heater to the “On” position. Press the Timer button on the heater’s control panel or the remote.

  • Page 11: Maintenance

    5 、 Setting electro lock The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking mechanism can be set in both the ON and OFF modes. Press Temp Up and Temp Down buttons at the same time for 3 seconds.
  • Page 12 The unit 2) Remove Air filter 1) Remove bracket screws (4X) 8. If you do not use the heater for a long time, please take out the remote batteries (to prevent corrosion) as shown below. Store the remote in a safe place. PUSH Battery...

  • Page 13: Troubleshooting

    TROUBLE SHOOTING If the heater will not operate, please check the following before seeking repair advice: 1. Check if the power cord is plugged into an electrical outlet, if not, plug in. 2. Check if electricity to the main power switch (in the back) is working. 3.
