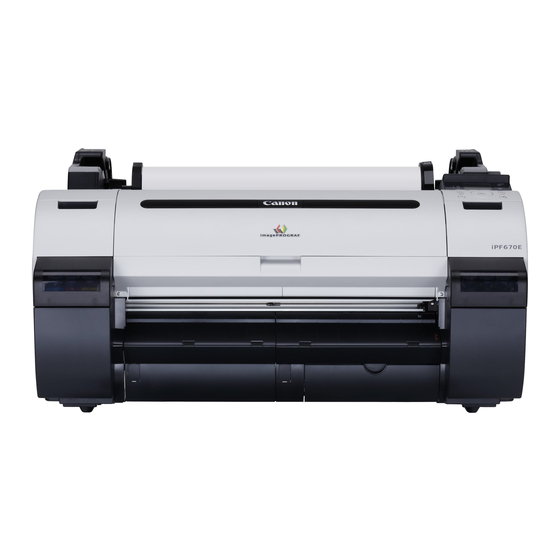

• Instructions in this Setup Guide show the iPF770 printer. Note that your printer may look different from these illustrations in some cases.
Caution
Introduction
Overview of Setup
When using the optional stand, the stand needs to be assembled first.
Refer to the Stand Setup Guide included with the stand for details on how
to assemble the stand.
Preparations
Install the Ink Tanks
Install the Printhead
Install the Software
How to Display the Electronic
Manuals
Details for each step are given in this Setup Guide. Simply follow the instructions to
install the printer.
If an error message is displayed during setup or other problems occur, refer to
"Responding to Messages" on page 6.
Preparations
Prepare to use the printer such as by connecting the power cord.
1
Have 3 or more people grasp the printer carrying handles and place the printer on a flat location
such as a table where it will be used.
• When moving the printer, always have 3
or more people firmly grasp the carrying
Important
handles.
Holding the printer at other positions is
dangerous, and may cause injury and
damage if the printer is dropped.
QT6-2153-V01
XXXXXXXX
A space larger than the following dimensions needs to be allocated when
setting up this printer.
* The optional "Printer Stand ST-27" can be used with the iPF670E/iPF671E.
(P.1)
(P.2)
(P.3)
(P.4)
(P.5)
a. Printer
b. Roll holder: Already attached to printer
c. Starter ink tanks (for first-time
d. Printhead
• The way to set the printer down or to carry
with the load only to the center of the printer,
may cause damage to the printer.
1
© CANON INC. 2016
Read this manual before attempting to operate the printer.
Keep this manual in a handy location for future reference.
Space Required for Installation
Printer only
With stand(*) mounted
Package Contents
c
e
b
a
installation) C, M, Y, MBK x2, BK
2
Remove the orange tape used to secure
the roll holder to the printer.
3
Plug the power cord into the power supply
connector on the right of the printer and
plug the other end into the outlet.
PRINTED IN XXXXXXXX
ENG
Installation space (W x D x H mm)
1397 × 1308 × 807
1397 × 1700 × 1362
d
f
g
e. Cautions When Using the iPF670E/
iPF671E, Setup Guide (this document)
f. CD-ROM (for Windows 64-bit)
g. Power cord
