Summary of Contents for Vibrafit MINI WALK 3
- Page 1 MINI WALK 3 User Manual...
-
Page 3: Table Of Contents
Table of Contents MINI WALK 3 by Vibra Fit User Manual Congratulations on choosing the MINI WALK 3 by Vibra Fit. Read this user manual carefully before starting your MINI WALK 3 . This manual provides important tips about operating the MINI WALK 3 . - Page 5 In addition to professionals, it is strictly forbidden to Obtain a medical exam before beginning any exercise adjust the electrical control part of the MINI WALK 3. program. Care should be used when mounting or dismounting Inspect the treadmill for incorrect, worn, or loose the treadmill.
- Page 6 Usage environment Do not use this product in humid or excessive dusty environment so as to avoid product failure. Do not use this product at room temperature above 40 °C. Do not place the product outdoors or near water source. Do not place the product near electric heaters, stoves or areas with direct sunlight.
-
Page 7: Support
Support Overview Walking machine serial number The purpose is to quickly know about the walking Copy the walking machine serial number (located machine and understand the meaning of the serial around the power switch) to the serial number field number and symbol of the user manual. It is important below and then save this user manual. -
Page 8: Set Up Your Mini Walk 3
Set Up Your MINI WALK 3 Unpacking Overview 1.Make sure the top cover of the carton is facing up Be sure to place the walking machine carton on a flat and open the top cover. surface. Please be careful to carry it. Never unpack from the side of the carton. - Page 9 Specifications 4.Put the filter back into the box, fasten the upper and lower covers of the box and store them. Description Unfloding dimension(mm) 1430x735x1030 Folding dimension(mm) 1475x735x93 Running area (mm) 1200x460 Net Weight Max load(kg) Applicable ages(year) 14-60 Fixed Lifting slope(%) 5.We recommend leaving at least 0.5 m of space on both sides of the walking machine and a 2 m safe Motor power (W)
- Page 10 Unfold the Handrail Overview MINI WALK 3’s handrail uses gas-liquid buffer technology and will automatically unfold when the handrail unfolds and reaches a particular angle. Use the following steps to unfold the MINI WALK 3 ’s handrail. Unfolding steps To adjust the handrail to unlock mode, move the 2.Raise the armrest A_3/A_4 up to a certain angle...
- Page 11 Adjust the unfold angle and change the two-way lock mechanism switch to the locked position. When the handrail is folded, the maximum speed MINI WALK 3 is 6km/h; when the handrail is in unfolded mode, the maximum speed of MINI WALK 3...
- Page 12 Fold the Handrail Overview This MINI WALK 3 is fully foldable and requires no installation tools. The handrail uses a gas-liquid cushioning technique when you fold the handrail. Follow the steps below to fold the walking machine. The thickest section is no more than 10cm when the walking machine is fully folded, it can accommodate any space that meets this size, such as under the sofa or under the bed (where the space permits).
- Page 13 LOCK position to lock the handrail. After folding is completed, move the bi-directional locking mechanism to the locked position so that the handrail and the MINI WALK 3 are fixed tightly together to facilitate moving your MINI WALK 3...
-
Page 14: Move The Mini Walk 3
Move the MINI WALK 3 Overview The net weight of the machine is 35kg. Use the two-way locking mechanism to fasten the body when the handrail is folded to facilitate moving. Please follow the steps below to move MINI WALK 3... -
Page 15: Power Supply 29 Troubleshooting
Grounding instructions Overview This product must be grounded. If the product fails, MINI WALK 3 comes with a power cord and a power grounding provides a minimum resistance path for the switch. The power cord and the power switch are current and thus reduces the risk of electric shock. -
Page 16: Use The Mini Walk 3
Use the MINI WALK 3 Overview By introducing MINI WALK 3 parts, buttons, remote control (optional) and movement parameters window, you can get familiar with the working principle of different workout modes quickly. MINI WALK 3 has three control modes, namely manual control mode, automatic control mode and remote control mode (optional). - Page 17 The walking belt is located at E_2. Warm up before the exercise, check the walking belt’s condition prior to use, adjust the tightness and perform the lubrication maintenance of the MINI WALK 3 time. Side rail The side rails are located at E_3/E_4.
-
Page 18: Handrail Buttons
SPEED SPEED SWITCH START The function button panel is at F_1. Stop button Deceleration button MINI WALK 3 gradually decelerates Press this button to decrease the speed STOP to stop and the display is cleared. SPEED in increments of 0.1km/h. -
Page 19: Display Window
Display Window Power on MINI WALK 3 , turn on the power switch, and the display will illuminate. The display window uses white matrix numbers to display the speed, number of steps, time, and mileage motion parameters, and simultaneously displays the two operational modes. -
Page 20: Remote Control(Optional)
Front of the remote control Back of the remote control Remote control matching steps You will need to match the remote control with the Key Function MINI WALK 3 the first time you use it, the matching operations are as follows: Name Description 1. -
Page 21: Manual Control Mode
Manual Control Mode Manual control mode provides the user to control No-load function MINI WALK 3 with the handrail buttons. After starting the MINI WALK 3 , if you do not walk on it for 10 seconds, it stops automatically. -
Page 22: Remote Control Mode(Optional)
Remote Control Mode(Optional) The remote control is optional, it allows you to control Switch modes MINI WALK 3 ’s running mode using the remote Press the “Mode Switch” button on the remote control to switch the exercise mode. There are control. -
Page 23: Automatic Control Mode
Automatic Control Mode Automatic control mode uses AUTO RUN2.0 Walking operation intelligent speed control system that controls MINI WALK 3 ’s running mode without buttons. Start Continuously walk 3 steps from the back of the Motor cover walking belt at a normal walking pace. Maintain 5- 10cm space between each foot as shown in the figure. - Page 24 If you encounter an emergency during operation, press the Stop button or the Emergency Motor cover stop switch, and MINI WALK 3 cancels Automatic control mode and stops. You can use this mode completely without the handrail buttons or remote control and we recommend it for users with better motor coordination or experience with a treadmill.
-
Page 25: Sleep And Wakeup
Sleep and wake up After MINI WALK 3 is powered on, if you do not use the function buttons for a long time or walk on the During the wake-up process, the middle area of the walking belt, MINI WALK 3... -
Page 26: Bluetooth Speaker
Bluetooth Speaker MINI WALK 3 is equipped with a Bluetooth speaker, Use the speaker which connects to cell phones through the Bluetooth function of the phone. You can control the speaker You can control the playback of songs with a mobile through the phone. - Page 27 Maintainance Centering the Walking Belt Before the shipment, the walking belt on the walking machine has been adjusted to be centered for you. During the transportation process, the walking belt may be off-center. Before you start using the walking machine, you must ensure that the walking belt is already centered to ensure smooth running of the walking machine.
- Page 28 Storage Add Lubricant The running board and walking belt of MINI WALK 3 When not in use, please store the product in a safe, have been pre-coated with lubricating silicone oil. dry, ventilated and cool place. The friction between the running board and the walking Do not twist the power cord.
- Page 29 Troubleshooting Error code Possible reason Solution ERR 02 Burst protection Replace the controller or check the motor cable ERR 05 Overcurrent protection Walking with excessive frictional resistance, need to add oil; or controller is damaged ERR 06 Overload protection Walking with excessive frictional resistance, need to add oil;...
Need help?
Do you have a question about the MINI WALK 3 and is the answer not in the manual?
Questions and answers

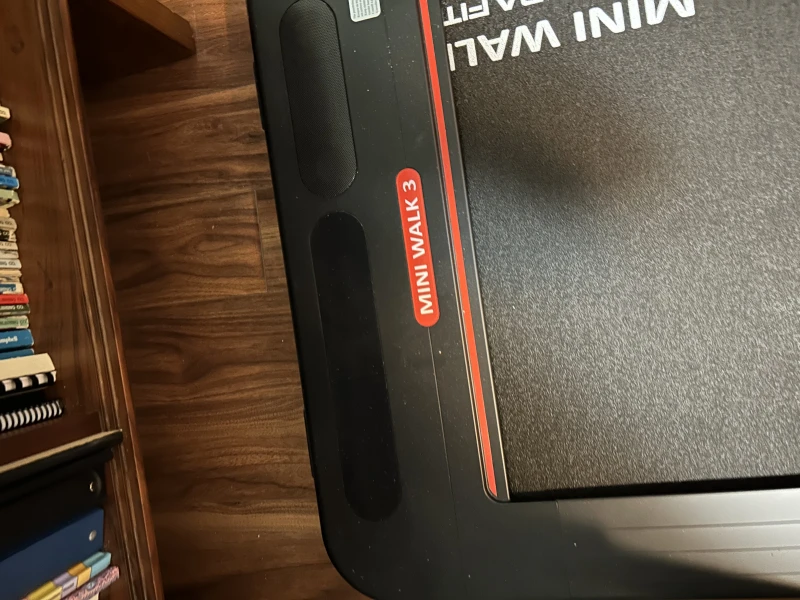

Problème --> E 2
What is the button for that says switch
The switch button on the Vibrafit MINI WALK 3 changes the motion mode between manual and automatic control. Pressing the "Mode Switch" button on the handrail switches from manual to automatic mode. When in automatic mode, pressing any button on the handrail or remote control (if available) switches back to manual mode and executes the corresponding command.
This answer is automatically generated
turn on and belt starts and then stops. what is the problem and how to solve?
If the Vibrafit MINI WALK 3 starts and then stops when weight is applied, the likely problem is that the walking belt needs lubrication. Greasing the walking belt can solve this issue.
This answer is automatically generated
