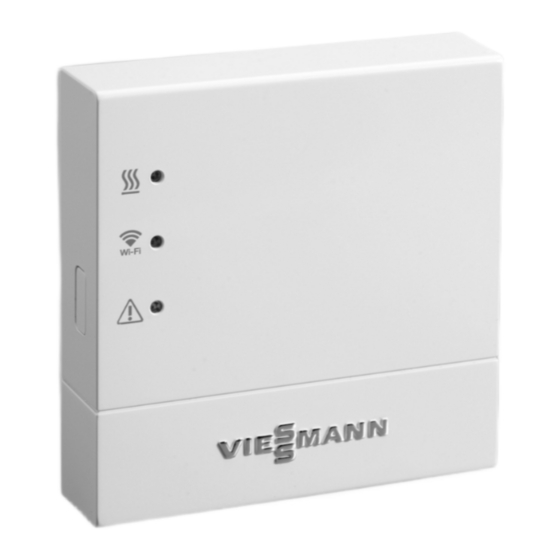

Viessmann Vitoconnect 100 Operating Instructions For The System User
Communication interface for remote monitoring and control of heating systems via the internet, for the following user interfaces
Hide thumbs
Also See for Vitoconnect 100:
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Viessmann Vitoconnect 100
Summary of Contents for Viessmann Vitoconnect 100
- Page 1 VIESMANN Operating instructions for the system user Vitoconnect 100 Type OPTO1 Communication interface for remote monitoring and control of heating systems via the internet, for the following user interfaces: ■ ViCare app Vitoguide ■ VITOCONNECT 100 Please keep safe. 5785665 GB...
- Page 2 Other direct thermal radiation Auxiliary components and individual parts For replacement, use only spare parts supplied or Danger approved by Viessmann. If unsuitable power supply units are connected, this poses a fire risk. Only connect the power supply unit provided.
-
Page 3: Table Of Contents
Liability ....................2. Introductory information Disposal of packaging ................Symbols ....................Contractor ....................Intended use ..................Product information ................Data connections with Vitoconnect 100, type OPTO1 ......■ Spare parts lists .................. ■ Operation via app .................. ViCare app ..................■... -
Page 4: Operational Reliability
The Vitotronic control units and the Vitoconnect 100 toring for water damage. ■ must be connected and configured correctly. ■ The Vitoconnect 100 is connected to the internet via a wireless router. ■ Internet access must be available at all times. ■... -
Page 5: Disposal Of Packaging
Vitoconnect products are designed exclusively for exclusively in conjunction with the electronic control operation in buildings of a domestic or business units and controllers of the supported Viessmann heat nature. Incorrect use of the devices is prohibited and and power generators. -
Page 6: Product Information
Settings and scanning are carried out generator. via the ViCare app. Alternatively, remote control of the The Vitoconnect 100, type OPTO1 can be used for sin- heating system by the contractor is carried out via Vito- gle boiler systems with an Optolink interface. -
Page 7: Operation Via App
Any pending messages from the heating system, e.g. Content of messages sensor or burner faults, are transmitted to the ■ Message type Vitoconnect 100 via the Optolink cable. The Message code ■ Vitoconnect 100 transmits these messages to the Message text ■... -
Page 8: System Requirements
Internet connection with "flat rate" (tariff independ- app: See page 13. ent of time and data volume) and high availability, i.e. the Vitoconnect 100 is permanently linked to the Control device for the ViCare app Viessmann server. Have dynamic IP addressing (DHCP, factory setting) The ViCare app supports mobile devices with the fol- ■... - Page 9 On their way between transmitter and receiver, WiFi To ensure a good WiFi connection, we recommend signals are damped, e.g. by air or when penetrating keeping the distance between the Vitoconnect 100 and walls. the wireless router as short as possible.
-
Page 10: Overview Of The Installation And Commissioning Process
Fit the wall mounting bracket for the Heating contractors Vitoconnect 100. System user Connect Vitoconnect 100 to heat source. Heating contractors System user Insert Vitoconnect 100 into wall mounting bracket. Heating contractors System user Connect power supply. Heating contractors System user Commissioning Check network settings. -
Page 11: Vitoconnect Power Supply
Installation sequence Vitoconnect power supply 1. Insert the USB plug for the Optolink/USB cable into Vitoconnect connection Fig. 3 2. Insert the Optolink plug of the Optolink/USB cable into Optolink interface on the control unit of the heat generator. Connection at heat generator Fig. -
Page 12: Display And Controls
Interpreting the LED indicators Communication with the heat generator – Flashes yellow. Connection between Vitoconnect 100 and heat source being established Illuminates green. Connection between Vitoconnect 100 and heat source successfully established Flashes red. No connection to the heat generator: See page 16. -
Page 13: Checking The Network Settings
LED , All are illuminated white. The Vitoconnect 100 starts. All are illuminated yellow. The Vitoconnect 100 has been reset to the factory setting and can be commissioned again. Note Flashing: LED 0.5 s on and 0.5 s off Pulsating: LED 0.1 s on and 0.9 s off... -
Page 14: Android Operating System: Setting Up The Wifi
Commissioning Registering the user and setting up the heating… (cont.) Android operating system: Setting up the WiFi Connection is automatically established with WiFi "VITOCONNECT-<xxxx>". iOS operating system: Setting up the WiFi 1. Call up the WiFi settings on your smartphone. 3. -
Page 15: Access Point Mode
Control functions Access point mode In access point mode, open source licences can be Enable access point mode, e.g. after replacing the scanned and wireless router settings can be carried wireless router. out. Activating access point mode Press reset button and hold down for longer than 5 seconds, but no longer than 30 seconds: See chap- ter "Display and controls". -
Page 16: Troubleshooting Measures
Flashes green. A new Vitoconnect 100 firmware is being installed. Please note Take care not to damage the Vitoconnect 100. Do not disconnect the Vitoconnect 100 from the power supply while in- stalling the firmware. Faults without LED indicator Fault... -
Page 17: Maintenance Mode
The factory settings have been reinstated for the Vitoconnect 100. Maintenance mode With this function, the transfer of messages from the heating system to the Viessmann server is sup- pressed, e.g. during maintenance work on the heating system. Activate service mode... -
Page 18: Service
Maintenance Service The Vitoconnect is maintenance-free. Cleaning You can clean the surfaces of the device with a microfi- bre cloth. Never use cleaning agents. - Page 19 Specification Specification Vitoconnect 100 Rated voltage WLAN frequency 2.4 GHz WLAN encryption Unencrypted or WPA2 Internet protocol IPv4 IP allocation DHCP Rated current Power consumption Protection class IP rating IP 30 to EN 60529; ensure through design/installation. Permissible ambient temperature Operation 5 to +40 °C...
-
Page 20: Information On Disposal
(Altstoff Recycling Austria AG, licence num- ber 5766). Final decommissioning and disposal of the heating system Viessmann products can be recycled. Components DE: Operating fluids (e.g. heat transfer medium) can and fluids from your heating system do not belong in be disposed of at municipal collection points. - Page 21 Certification Certification...
- Page 22 Keyword index Keyword index Access point mode.............15 Network................ 7 Ambient temperature............8 Network operator............4 App................7 Network settings............13 Network settings, resetting.........17 Cleaning..............18 Commissioning.............12, 13 Operating system............8 Connection, establishing Operation..............7 – WiFi Android operating system....... 14 Operational reliability............4 – WiFi iOS operating system........14 Contractor, identification..........5 Control device for ViCare app........
- Page 24 Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
