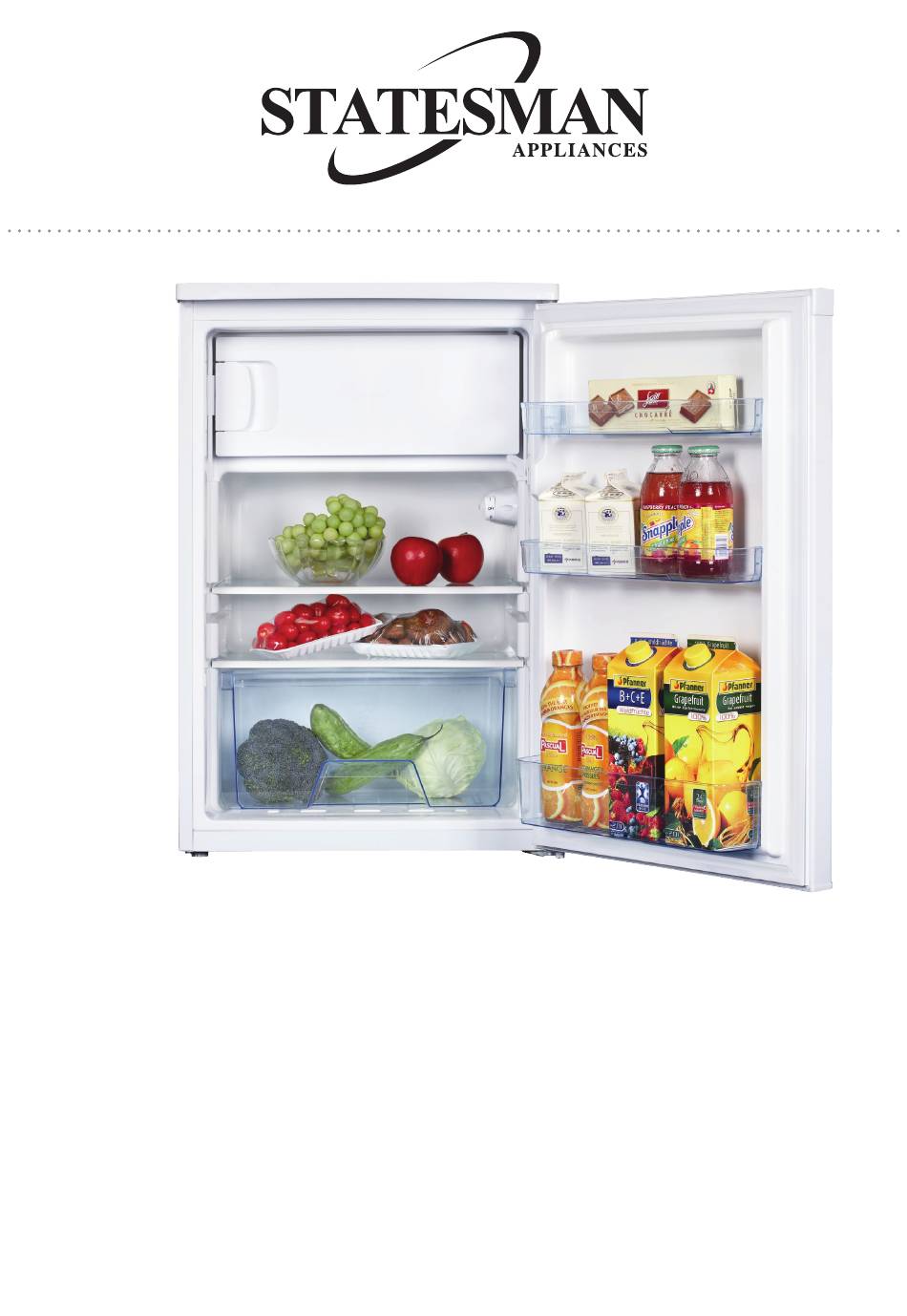

- Page 1 For models R155W, R155B and R155S 55CM UNDER COUNTER FRIDGE WITH 4* ICE BOX Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3 Specification ..............4 Appliance Overview ............5 Installation ..............5-7 Operating Instructions ...........7 Cleaning and Maintenance ........8-9 Fuse Replacement ............9 Trouble Shooting Guide ..........10 Disposal Information ...........11... -
Page 3: Important Safety Instructions
SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for indoor domestic use, for refrigerated and frozen food storage only. -
Page 4: Specification
SPECIFICATION Supplier Name / Trade Mark Statesman Model Number R155 Category Type Refrigerator with one or more fresh-food storage compartments Energy Efficiency Class EU Eco-Label Award Annual Energy Consumption 136kWh/annum Freezing Capacity 2kg/24h Fridge Storage Volume (Litre) and Applicable Star Rating Compartment Freezer Storage Volume (Litre) Applicable Star Rating Compartment 4 Star Refrigeration System (Frost Free, Static, Totally No Frost) Static Temperature Rise Time 900min Climate Class ST/N This appliance is intended to be used at an ambient temperature between “16” (lowest temperature) -
Page 5: Appliance Overview
APPLIANCE OVERVIEW Freezer Compartment Internal Light and Thermostat Control Dial Door Shelves Adjustable Glass Shelf Glass Shelf Salad Drawer Bottle Shelf Levelling Feet INSTALLATION Location and air circulation • The appliance must stand vertically on a flat, even surface, to level the appliance use the levelling feet by turning them until the appliance is as level as possible. • This appliance has been designed to operate in ambient temperatures between 16°C and 38°C. - Page 6 To change the direction of the door, please follow these instructions: 1. Ensure the appliance is unplugged and empty. 2. Remove the 2 Screws on the back of the top cover (Fig 1). 3. Lift the rear of the lid and push forward to remove from the front locators. The top hinge now is accessible (Fig 2). 4. Unscrew the top door hinge located on the top of the door and then remove the top hinge that is holding the door in place. (Fig 3) 5. With help, carefully tilt the unit backwards and rest the unit on something solid to stop slipping. 6. Lift the door off the hinge pin and place in a safe place where it will not get damaged 7.
-
Page 7: Operating Instructions
15. Put the top cover back and screw it into place securely (Fig 10). 16. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. 17. Re-adjust the levelling feet as needed. 18. Allow 5 hours for the appliance to stand upright before turning on the appliance to allow coolant gases time to settle after the appliance is in place. OPERATING INSTRUCTIONS Before using your appliance • This appliance must be left to stand in an upright position for at least 5 hours before being... -
Page 8: Cleaning And Maintenance
CLEANING AND MAINTENANCE Switch off the electrical supply and remove the plug from the mains socket before cleaning. Interior 1. Remove all food from the appliance and cover to help keep cool. 2. Remove all the shelves and salad crisper carefully from the appliance and wash in warm clean water with a soft cloth and dry thoroughly. Never replace the shelves or salad crisper into the appliance if wet. -
Page 9: Fuse Replacement
Drainage channel • The drainage channel must be cleaned regularly to prevent a build-up of impurities; this can be found on the interior back wall of your appliance. • Use a damp clean cloth and wipe the channel clean, then use a pipe cleaner or similar flexible object to clean the drainage hole to prevent blockages. Going away If you are going away and do not want to leave the appliance left on, switch off at the mains socket and remove the plug ensuring not to pull the cord. Remove any food and follow the cleaning instructions in the “Cleaning and Maintenance” section. Important: Leave the door ajar as this will prevent odours and mould accumulating in the appliance and will allow the appliance to dry completely. Power Cut In the event of a power cut keep the appliance door closed to maintain the temperature inside. -
Page 10: Trouble Shooting Guide
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Fault Possible cause Solution Temperature control dial is Set the dial at other number to Appliance does set at number “0”. -
Page 11: Disposal Information
DISPOSAL The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. - Page 12 38 Bluestem Road, Ransomes Europark Ipswich, IP3 9RR 0844 848 5861...
