STIHL RE 110
2 - 23
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RE 110 and is the answer not in the manual?

Questions and answers

Related Manuals for Stihl RE 110

Summary of Contents for Stihl RE 110

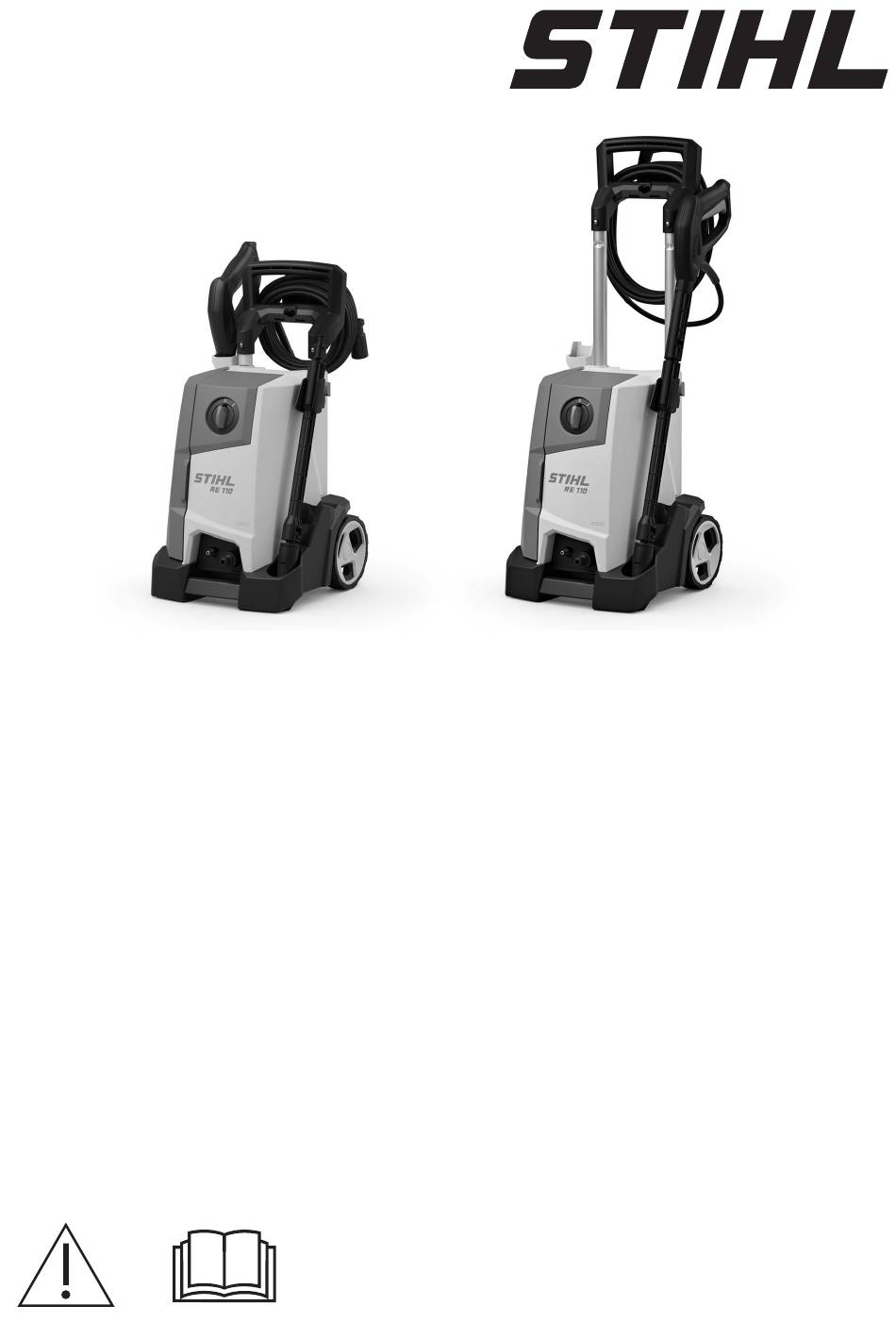

  • Page 1 STIHL RE 110 2 - 23 Instruction Manual...

  • Page 2: Table Of Contents

    STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

  • Page 3: Overview

    3 Overview English Overview 7 Bracket The bracket is used for releasing and storing Pressure washer the connecting cord. The bracket rotates. 8 Flap The flap covers the nozzles, the connecting cord and the cleaning pin. 9 Mount The mount is used for storing the spray gun. 10 Retainer The retainer is used for storing the spray attachment.

  • Page 4: Safety Precautions

    Their meaning is as follows: In this position the retaining latch unlocks Intended Use the lever. The pressure washer STIHL RE 110 is used for In this position the retaining latch locks the example to clean vehicles, trailers, patios, paths lever.
  • Page 5 ► Always use the high-pressure washer as expert before operating described in this user manual. The high-pressure washer STIHL RE 110 is not the pressure washer for designed to be used for: the first time. – Cleaning asbestos cement and similar surfa‐...
  • Page 6 ■ If you work in the rain or in a damp environ‐ the high-pressure washer. ment, an electric shock may occur. The user ► Fit original STIHL accessories for this high- may be seriously injured or killed and the pres‐ pressure washer.
  • Page 7 4 Safety Precautions English high-pressure washer is then in stand-by ► Vehicles or machinery should only be mode and is still switched on. If the spray gun cleaned at places where there is an oil trap trigger is squeezed, the high-pressure pump in the water drain.
  • Page 8 ► Keep electrical appliances and the high- ► STIHL recommends the use of genuine pressure washer away from the surface to STIHL detergents. be cleaned.
  • Page 9 4 Safety Precautions English 4.10 Connecting to the power supply the data on the rating plate of the pressure washer. Contact with live parts can occur for the following ■ Electrical components may be overloaded dur‐ reasons: ing operation if more than one electric power –...

  • Page 10: Safety Instructions - Accessories

    Have the connecting cable replaced ► Switch off pressure washer. by a STIHL dealer. ► If the high-pressure washer needs to be serviced or repaired: Contact a STIHL ► Unplug the mains plug of the pressure dealer. washer from the socket.

  • Page 11: Preparing The Pressure Washer For Operation

    – Switch off pressure washer ► If it is not possible to carry out these steps: Do – Turn off water supply not use the pressure washer. Consult a STIHL – Actuate spray gun: The water pressure servicing dealer. is released Assembling the pressure –...
  • Page 12 English 7 Assembling the pressure washer ► Press the safety catch (1) and pull out the Attaching the hose bracket handle (2). ► Release safety catch (1) and pull out han‐ dle (2) until it audibly engages. 7.2.2 Pushing in the handle ►...
  • Page 13 7 Assembling the pressure washer English Attaching and removing the 7.5.2 Removing the spray lance spray gun 7.4.1 Attaching the spray gun ► Squeeze spray lance (1) and spray gun (2) together and twist as far as they will go. ►...

  • Page 14: Connecting To A Water Source

    (a), The appropriate STIHL suction set must be used. The suction set includes a water hose with a special coupling. Depending on the market, the appropriate STIHL suction set may be included with the high-pres‐...

  • Page 15: Connecting The Pressure Washer To The Power Supply

    9 Connecting the pressure washer to the power supply English Connecting the pressure Connecting the water filter washer to the power supply If the pressure washer is operated with water containing sand from water butts, cisterns or Connecting the pressure from flowing or still rivers and lakes, a water filter washer to the power supply must be connected between the water hose and...

  • Page 16: Operating The Pressure Washer

    English 11 Operating the pressure washer ► Turn the rotary switch to the I position. ► Move the retaining latch (1) to the position. ► Press and hold the trigger (2). 10.2 Switching off the pressure The high-pressure pump starts up automati‐ washer cally and water flows out of the nozzle.

  • Page 17: After Finishing Work

    ► Remove high-pressure hose and let the Detergents can increase the cleaning effect of remaining water run out of the high-pressure the water. The supplied STIHL spraying set must hose. be used. ► Remove and clean the nozzle and spray lance.

  • Page 18: Transporting

    English 13 Transporting ► Store and dispose of antifreeze in accordance ► Insert spraying set (6). with the applicable regulations and in an envi‐ ronmentally responsible manner. 13 Transporting 13.1 Transporting the high-pressure washer ► Switch off the high-pressure washer and pull the mains plug out of the socket.

  • Page 19: Cleaning

    ► Reassemble the water filter. 16 Maintenance 16.1 Maintenance intervals Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance inter‐ vals: ► If the nozzle is clogged: Clean the nozzle with the cleaning pin.

  • Page 20: Troubleshooting

    ► Allow the pressure washer to cool for 5 minutes. ► Clean the nozzle. The high-pressure There is a leak in the high-pressure ► Ask a STIHL servicing dealer to pump repeatedly pump, high-pressure hose or spray inspect the pressure washer. switches on and off attachment.

  • Page 21: Specifications

    The water intake screen or water filter ► Clean water intake screen and water is blocked. filter. The high-pressure pump, high-pres‐ ► Ask a STIHL servicing dealer to sure hose or spray attachment is leak‐ inspect the pressure washer. ing or faulty. The shape of the The nozzle is blocked.
  • Page 22 – Max. water supply pressure (p in max.): 1 MPa For information on compliance with Employers' (10 bar) Vibration Directive 2002/44/EC see – Max. water throughput (Q max.): 7.2 l/min www.stihl.com/vib. (430 l/h) 19.4 REACH – Minimum water throughput (Q min.): 6.3 l/min...

  • Page 23: Spare Parts And Accessories

    – Guaranteed sound power level: 87 dB(A) spare parts and original STIHL acces‐ The technical documents are stored at sories. ANDREAS STIHL AG & Co. KG Produktzulas‐ STIHL recommends the use of original STIHL sung. spare parts and accessories. The year of construction, country of manufacture...
  • Page 24 *04586640101A* 0458-664-0101-A...
