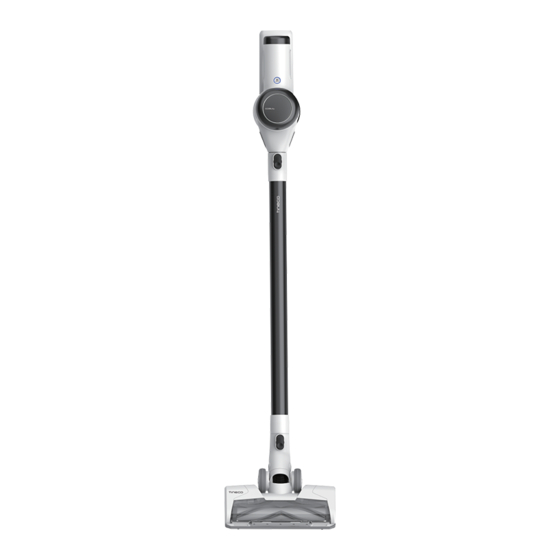

Tineco PURE ONE X Series Instruction Manual

Smart vacuum cleaner
Hide thumbs Also See for PURE ONE X Series:

Advertisement

Table of Contents

SERIES
Smart Vacuum Cleaner
Instruction Manual
*Actual product may differ from illustration.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURE ONE X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Tineco PURE ONE X Series

Summary of Contents for Tineco PURE ONE X Series

  • Page 1 SERIES Smart Vacuum Cleaner Instruction Manual *Actual product may differ from illustration.

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ............... 3 Overview ....................6 Product Components ................7 Accessories .................... 8 Assembly ....................9 Operation .................... 11 Maintenance ..................16 Specifications ..................20 Troubleshooting .................. 21 Warranty ....................22...
  • Page 4 Precautionary measures: 1. Do not operate the vacuum cleaner too close to heaters, radiators or other hot surfaces. 2. Before inserting the plug into the wall, make sure your hands are dry. 3. Before turning on the vacuum cleaner, safely remove any large objects from the floor or cleaning surface in order to prevent damage to the filter.

  • Page 5: Important Safety Instructions

    Important Safety Instructions IMPORTANT! Always switch off the cleaner before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This cleaner should only be used for its intended purpose as described in this instruction manual.
  • Page 6 14. Before vacuuming, remove any large or 24. Never run over the power cable with sharp objects from the floor or cleaning the power head, as this may cause surface in order to prevent damage to damage to the power cable. the filter.
  • Page 7 Battery use and care 1. The appliance is only to be used with the charger provided with the appliance. 2. Only charge the battery inside the cleaner or the charging dock. Only use the specifically designated charger to charge the product. 3.

  • Page 8: Overview

    Overview A. Dust sensor E. Trigger lock B. Dust empty release button F. Dustbin release button C. Dustbin G. Trigger D. AUTO/MAX button H. HEPA Filter...

  • Page 9: Product Components

    Product Components Item PURE ONE X Main body Tube Full-size LED multi-tasker power brush Mini power brush 2-in-1 dusting brush Crevice tool Pre-filter cleaning tool + Spare pre-filter Wall-mounted dock Adaptor Hair cleaning tool • Actual accessories may vary from shown or change without notice. Available accessories may vary by market.

  • Page 10: Accessories

    Accessories Note: • Test an accessory on a small, inconspicuous area before use on sensitive surfaces. • The “Product Components” page shows which accessories are included with your purchase. • As shown below, there are many components compatible with this model. If you would like to purchase accessories or consumables, please contact Customer Service on AUS: 1800 815 270, NZ: 0800 282 288.

  • Page 11: Assembly

    Assembly Tube Installation Insert tube. Press the release button to remove the tube. Brush Installation Insert the power brush. Press the release button to remove the power brush. Dustbin Installation ① ② To clean the dustbin more thoroughly, press When re-attaching the dustbin, hold on an angle the dustbin release button to detach from the and slot the top of the dustbin into the hook on appliance.
  • Page 12 We recommend placing it 120cm “click” to signify correct assembly. Once this is from the lower screw hole to the floor (may complete, use the screws provided by Tineco to need to be adjusted based on the actual affix the dock to the wall.

  • Page 13: Operation

    Operation Preparing for Use Note: • Before the first use, please charge the appliance (see “Charging the Battery”) for 3-4 hours in an area where the ambient temperature is between 4°C (39.2°F) and 40°C (104°F). • Select an accessory and attach it to the appliance before use (see “Accessories”). Pull the trigger to activate the suction.
  • Page 14 Cleaning Mode Selection AUTO Mode • In AUTO mode, the indicator color changes according to the amount of dust detected. When blinking red indicates dust is detected, the brighter red light indicates more dust, whereas blinking blue indicates no dust is detected. This mode automatically provides the best cleaning solution. To enter AUTO mode: ①...
  • Page 15 • All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site. Download on the GET IT ON App Store Google Play Downloads www.tineco.com Tineco Support App Downloads ②...
  • Page 16 Warning: • Only use the Tineco-provided adapter to charge the appliance. • During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
  • Page 17 • When in AUTO mode, the runtime is approximately 70 minutes. When MAX power is used, the runtime is approximately 12 minutes. • Estimated runtime data was obtained by a Tineco Laboratory using one battery and non-motorized accessories. Charging Time •...

  • Page 18: Maintenance

    Maintenance Note: • Clean the dustbin and filters after each use. • Use the cleaning tool to thoroughly clean the pre-filter when the indicator blinking red rapidly. To maintain high performance, wash and dry the pre-filter monthly, replacing it every 6 months. Wash and dry the HEPA filter every 3 months, replacing it every 12 months.
  • Page 19 Pre-filter Ensure the appliance is switched off before Do not turn the appliance upside down when cleaning, and remove the dirty pre-filter from removing or installing the filter to prevent dust the mesh filter-holder. from entering the motor. Replace a clean filter to the main body. Put Run the appliance in MAX mode, and rotate the the dirty pre-filter into the cleaning tool and side cover to clean the dirty pre-filter.
  • Page 20 The HEPA filter can be washed under running * The HEPA is detachable. Simply rotate to water and must be completely dry before remove and replace. reinstalling. Dust Sensor To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with a damp cloth.
  • Page 21 Remove the debris wrapped around the roller Fully reinsert the brush roller at an angle and with the Tineco Hair Cleaning Tool. push upward until it clicks securely back into place. Brush Roller Use a coin or other tool, to unlock the brush...

  • Page 22: Specifications

    Specifications Product PURE ONE X SERIES Voltage 21.6V DC Rated Power 260W Dustbin Capacity 0.4L Charging Time 3-4 hrs AC Input 100-240V~ Disposal • The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible cause Solution No power Charge the battery Auto protection for overheating Restart after cooling down The appliance does not The appliance is blocked turn on (i.e. the tube, suction mouth or Check and remove blockages some other parts) Dustbin and filters are full Clean the dustbin and filters The pre-filter is not installed...

  • Page 24: Warranty

    Warranty Your cleaner, in the case of domestic use, has a two year parts and labour warranty against product defects and failures when the product is used in accordance with the terms and conditions of this warranty statement. This warranty commences from the original date of purchase and is not transferable;...
  • Page 25 REGISTRATION We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the last 11 digits of the serial number (found on the base of the main body).
  • Page 28 Tineco Official Site: www.tineco.com Customer Support & Service Hotline AUS: 1800 815 270 NZ: 0800 282 288 www.godfreys.com.au www.godfreys.co.nz Distributed in Australia & New Zealand by Electrical Home-Aids Pty Ltd (Godfreys) Building 3, Brandon Office Park, 530 Springvale Road, Glen Waverley, VIC, 3150, Australia.
