Ports and Status Indicators

The MX250 uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash
twice. Additional functions are described below, from left to right.
Item
1
2
3

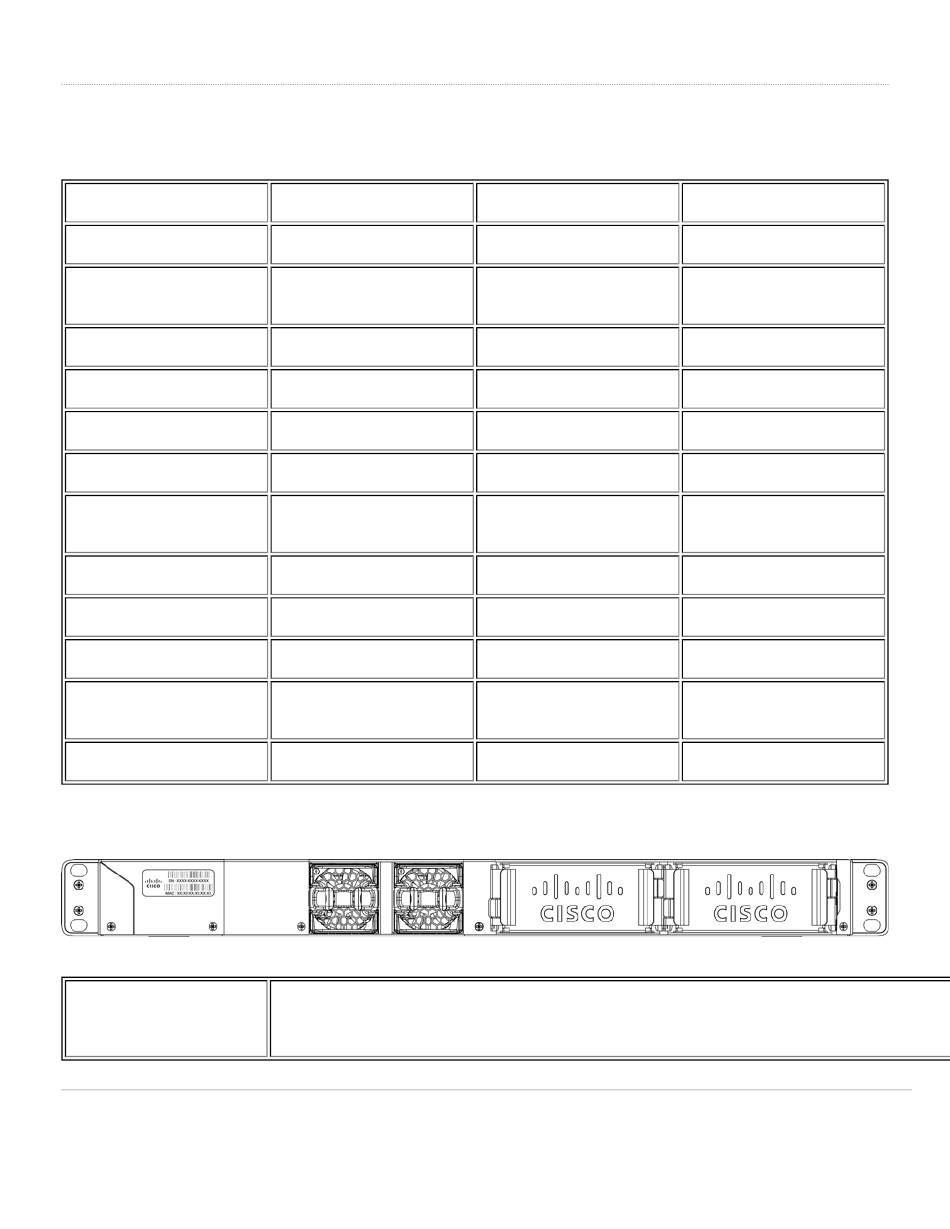

MX250 Back Panel
Please note that the serial number is located on the product label at the back panel of the MX250-HW.
Reset button
Function
Power
USB connectivity
HA status
Insert a paper clip if a reset is required.
A brief, momentary press: To delete a downloaded configuration and reboot.
Press and hold for more than 10 seconds: To force the unit into a full factory reset.
LED Status
Solid orange
Shifting colors
Flashing white
Solid white
Off
Solid orange
Flashing orange
Green
Off
Orange
Flashing orange
Green
Meaning
Power is applied
Unit is attempting to
contact the Cloud
Operation is in progress
Fully operational
During boot or USB link
Initial link
Internet connectivity not
complete
USB connection detected
No HA available
Initial link
High availability not
complete
HA available
