Sealey PTSR2 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instruction
gloves
manual
1. SAFETY
WARNING! Ensure Health & Safety, and local authority regulations are adhered to when assembling and using this tool rack.
‰
Locate tool rack in a suitable area where it will not be an obstruction.
9
Keep the general area clean, uncluttered and ensure there is adequate lighting.
9
WARNING! Mount tool rack on a flat and solid wall such as breeze block that is strong enough to hold fully laden tool rack.
‰
The tool rack should be firmly secured to the wall in a suitable location with fixings provided.
9
DO NOT attempt to wall mount the tool rack on your own. Obtain assistance or use manual handling equipment.
8
Wall mount the tool rack at such a height that minimises the risk of injury when used.
9
Keep children and unauthorised persons away from the storage area.
9
DO NOT use the tool rack for any purpose other than that for which it is designed.
8
DO NOT site the tool rack out of doors.
8
DO NOT get the tool rack wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT clean the tool rack with any solvents or abrasives which may damage the coated surface.
8
DO NOT overload the tool rack when wall mounted.
8
Ensure that the tool rack is properly and firmly assembled and installed before loading it.
8
2. INTRODUCTION

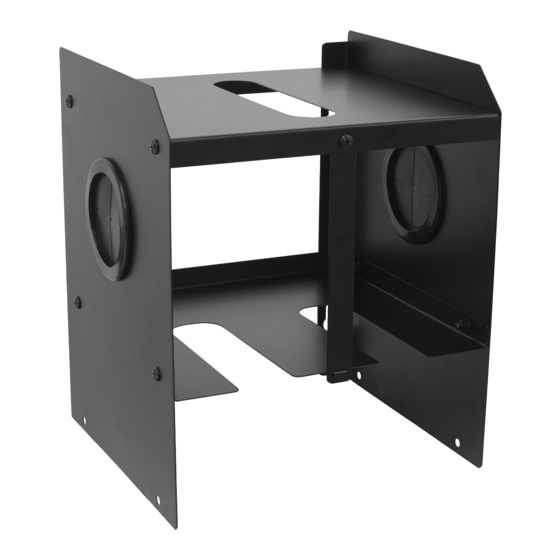

Wall mountable rack specifically designed for the storage of power tools.
Stores up to two power tools. Shelf space for power tool battery and chargers.
Open fronted bays make tools easily accessible. Supplied flat-packed.
3. SPECIFICATION
Model no .....................................................................PTSR2
Dimensions (W x D x H) ..........................246 x 230 x 300mm
Power tool storage bays....................................................... 2
4. CONTENTS
1 Nut x9 2 Bolt x9 3 Self tapping screw x4 4 Drywall anchor x4
5. ASSEMBLY
Attach the two side panels to the bottom shelf
using 2x nuts and 2x bolts per side.
© Jack Sealey Limited
POWER TOOL STORAGE RACK - 2 BAY
PTSR2
MODEL NO:
Attach two side panels to the top shelf using
2x bolts per side. Note: the flange on the
top shelf should face downwards with the
centre hole on the side of the flange facing
forwards.
Original Language Version
Position the support bar so the slot passes
through the tab on the bottom shelf with the
power toll slots. Secure the bar by lining up
the hole at the top of the support bar with the
corresponding hole on the top shelf.
The support bar should be positioned behind the
front edge of the top shelf. Secure using bolt and
nut.
PTSR2 Issue:1 05/02/21
