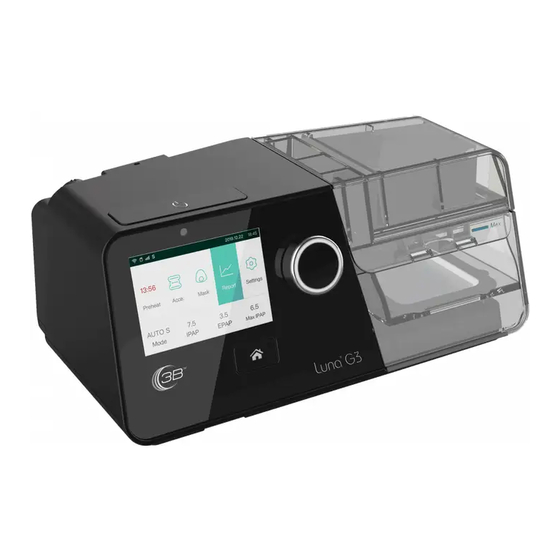

- Page 1 User Manual Luna G3 APAP / Luna G3 CPAP ® ® Item No: LG3600 / LG3500...
-
Page 2: Table Of Contents
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Table of Contents 1. Introduction ··························································································· 1 2. Symbols ································································································· 1 2.1 Control Buttons ············································································· 1 2.2 Device Symbols ············································································ 1 3. Warning, Caution and Important Tip ························································ 3 4. - Page 3 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 14.2 Emptying the Water Chamber ··················································· 23 14.3 Setting the Humidity Level ·························································· 23 15. Using the Cellular Module ···································································· 24 16. Navigating the Patient Menu ······························································· 25 16.1 Steps to Navigate the Patient Menu ···········································...
-
Page 4: Introduction
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 1. Introduction Thank you for your purchase of the Luna G3 APAP / Luna G3 CPAP. This User ® ® Manual will introduce you to your device. Please read it carefully. If you experience any difficulties or problems during use, please contact your homecare provider or physician. - Page 5 Product is intended for use by a single patient only Lot number Non-Ionizing Radiation SD Card WEEE Marking Air Inlet Air Outlet Indicates the possibility of injury to the user or operator Logo of BMC Medical Co., Ltd. Logo of 3B Medical, Inc. 2 / 48...
-
Page 6: Warning, Caution And Important Tip
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 3. Warning, Caution and Important Tip WARNING! Indicate the possibility of injury to the user or operator. CAUTION! Indicate the possibility of damage to the device. IMPORTANT TIP! Place emphasis on an operating characteristic. -
Page 7: Contraindications
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® • The patient is an intended operator. • The device is intended for use by operators trained or experienced in similar equipment. • Cleaning and disinfection can be performed by the patient. IMPORTANT TIP! •... -
Page 8: Specifications
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 6. Specifications Device Size Dimensions (L x W x H): 265 mm × 145 mm × 114 mm Weight: 1.7 kg Water capacity: To maximum fill line 360 mL Product Use, Transport and Storage Operation Transport and Storage... - Page 9 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Static Pressure Stability at 10 cmH ±0.5 hPa Dynamic Pressure Stability 10 BPM 15 BPM 20 BPM Pressures (cmH ±0.5 ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1 Device with humidification and 22 mm Tubing or Heated Tubing.
- Page 10 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Cellular Module Shock, severe vibration, and moisture should be Transportation Requirements avoided in transportation Frequency Bands Bands 2, 3, 4, 5, 8, 12, 13, 20, 28 LTE Cat M1/ NB1 Communication Mode LTE Cat M1/ NB1: ≤...
-
Page 11: Available Therapies
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Parameter Min. Max. Unit Remarks Frequency Uplink 1710 1755 Module transmit range FDD Band 4 Downlink 2110 2155 Module receive (1700 MHz) Frequency Uplink 1710 1785 Module transmit range FDD Band 3 Downlink... - Page 12 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Auto On With this feature, the device automatically initiates therapy when you breathe into the mask. This feature is always enabled. SmartC With this feature, the device adjusts Treat P according to the patient's respiratory event during a certain time.
-
Page 13: Model
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 9. Model Maximum Product Description Work Work Model Product Mode Pressure Optional Accessory Contents (hPa) Tubing(optional), Device CPAP, LG3600 Cellular Module (3.5-inch LCD) AutoCPAP (optional), Heated Tubing Device LG3500 CPAP (optional) -
Page 14: System Features
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® head or neck of the patient during sleep. • Do not connect any equipment to the device unless recommended by 3B MEDICAL or your health care provider. IMPORTANT TIPS! •... - Page 15 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Heated Tubing Port Air Outlet DC Inlet Filter Cap (Air Inlet) Fig. 10-2 Name Function Air Outlet Deliver pressurized air; connect to the tubing Heated Tubing Port Connected to the plug of the heated tubing DC Inlet An inlet for the DC power supply Cover and secure the air filter, which is used to filter dust...
-
Page 16: First Time Setup
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 12. First Time Setup 12.1 Placing the Device Place the device on a firm, flat surface. WARNINGS! • If the device has been dropped or mishandled, if the enclosure is broken, or if water has entered the enclosure, disconnect the power cord and discontinue use. -
Page 17: Connecting To Power
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® (2) Install the filter cap containing the air filter to the device, as shown in Fig. 12-2. Fig. 12-2 (3) Change the air filter and filter cap to the PM2.5 filter, as shown in Fig. 12-3. PM2.5 Filter Fig. -
Page 18: Assembling The Tubing / Heated Tubing And Mask
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® DC Inlet Power Adapter Power Cord Fig. 12-4 Note: The length of the power cord and power adapter is 1.5 m and 1.8 m respectively without the function of preventing electromagnetic interference. WARNINGS! •... - Page 19 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® (2) Connect the heated tubing joint to the air outlet of the device, and then insert the power plug into the heated tubing port on the back of the device, as shown in Fig.
-
Page 20: Using Oxygen With The Device
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Fig. 12-8 (3) Connect the other end of the tubing to the mask according to the user manual for the mask. Wear the mask. WARNINGS! • If you are using a mask with a built-in exhalation port, connect the mask’s connector to the tubing. -
Page 21: Inserting The Sd Card
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® from heat, open flames, any oily substances, or other sources of ignition. DO NOT smoke in the area near Luna G3 APAP / Luna G3 CPAP or the oxygen container. ®... -
Page 22: Routine Use
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® stomach bloating, or severe headache when using the device, contact your physician or qualified medical personnel immediately. 13. Routine Use 13.1 Connecting the Tubing Connect the power cord, power adapter, and tubing properly according to the instructions in the First Time Setup (Chapter 12). -
Page 23: Accessing The Icode
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 13.6 Accessing the iCode After the device is powered on, move the cursor to the icon by turning the Knob , as shown in the Fig. 13-1. Access the iCode information by pressing the Knob , the screen displays the iCode Inerface, as shown in the Fig. -
Page 24: Filling Water
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Fig. 14-1 WARNING! • Turn the device off and allow approximately 15 minutes for the heater plate and water to cool. 14.1.2 Filling Water (1) Open the cap, as shown in Fig. 14-2, and fill the water chamber with approximately 360 mL of water, as shown in Fig. -
Page 25: Returning The Water Chamber
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Fig. 14-4 WARNING! • Change water before every use and do not surpass the maximum water level line. CAUTIONS! • Empty the water chamber when the heated humidifier is not in use. •... -
Page 26: Emptying The Water Chamber
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® WARNING! • For safety purposes, the device must be placed on a flat surface at a level lower than the patient's head on a bed, so that the condensation flows back to the water chamber rather than remain in the tubing causing rainout. -
Page 27: Using The Cellular Module
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® WARNING! • Do not touch the heater plate of the device when it is working, otherwise you may get burned. Turn off the heat when the heated humidifier is not in use. CAUTIONS! •... -
Page 28: Navigating The Patient Menu
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® There are four different signal icons, as listed in Table 2: Table 2 Description of Signal Icons Icon Description Strong signal Moderate signal Weak signal No signal found Note: (1) When the signal is weak, data transmission may become slow and even stop. -
Page 29: Bringing Up The Initial Setup Interface
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Fig. 16-1 Note: The above interface only applicable to the device does not activate the SmartC or SmartA. If the SmartC or SmartA is enabled, and the symbol will appear in the status bar at the top of the screen, as shown in Fig. -
Page 30: Selecting Options
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Note: The Heated Tubing option can only be adjusted when the device is connected to the heated tubing, as shown in Fig. 16-4. Fig. 16-4 16.1.3 Selecting Options As you turn the Knob clockwise, the cursor moves downwards from one option to another. -
Page 31: Confirming Adjustments
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 16.1.5 Confirming Adjustments Confirm your adjustment to an option by pressing the Knob . The option is then displayed in white, as shown in Fig. 16-7. Fig. 16-7 16.1.6 Turning Pages When the cursor is on Work screen saver, the last option shown in Fig. -
Page 32: Options Of The Patient Menu And Corresponding Descriptions
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 16.2 Options of the Patient Menu and Corresponding Descriptions Option Range Description There are five humidity levels available. As the Off, Auto, numbering increases, humidity rises Humidifier 1 ～ 5 accordingly. - Page 33 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 00:00 — Time Set time by adjusting this option. 23:59 Turn the Knob to choose between the two 12-hour / Time Format 24-hour time formats. Setting screen brightness by adjusting this Brightness High / Low option.
-
Page 34: Alert
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 17. Alert Alert Message Description An audible alert will sound in 6 s if the device is accidentally disconnected from power when it is delivering air. Note: Power Failure!!! (1) The alert will not sound if power failure occurs when the device is in standby state. -
Page 35: Cleaning
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 18. Cleaning WARNINGS! • Regular cleaning of the device and its accessories is very important for the prevention of respiratory infections. • To avoid electric shock, always unplug the device before cleaning. •... -
Page 36: Cleaning The Transfer Box
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® WARNINGS! • Emptying and cleaning the water chamber daily will help prevent mold and bacteria growth. • Allow the water in the chamber to cool down to room temperature before removing it from the device. -
Page 37: Cleaning The Mask And Headgear
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 18.3 Cleaning the Mask and Headgear For details, refer to the cleaning instructions in the user manual for the mask. 18.4 Cleaning the Enclosure Wipe the surface of the device with a soft, slightly damp cloth. CAUTIONS! •... -
Page 38: Replacing The Air Filter / Pm2.5 Filter
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® (4) Clean the components with a soft bristled brush for one minute while soaking in detergent solution (see the table below). Pay particular attention to all crevices and cavities. -
Page 39: Traveling With The Device
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® (2) Install the filter cap containing the air filter to the device, as shown in Fig. 18-8. Fig. 18-8 (3) Disassemble the PM2.5 Filter from the device, as shown in Fig. 18-9, then change a new one. -
Page 40: Transferring The Device To Another Patient
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® (4) Security Stations: For convenience at security stations, there is a note on the bottom of the device stating that it is medical equipment. It may be helpful to bring this manual along with you to help security personnel understand the device. -
Page 41: Disposal
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 23. Disposal Electrical product components contain chemical substance which may pollute environment, when the device reaches the end of its service life, dispose of the device and packaging in accordance with local laws and regulations. 24. - Page 42 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Problem Possible Cause Solution(s) Contract your equipment Wrong mask size. supplier for a correct-size mask. Contact your physician and Facial equipment supplier. reddening The patient is allergic to the Use a mask which is not made materials of the mask.
-
Page 43: Common Problems In The Device And Corresponding Solutions
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 24.2 Common Problems in the Device and Corresponding Solutions Problem Possible Cause Solution(s) Take a few deep breaths with Auto the mask on, and the device feature is enabled. will start automatically. -
Page 44: Information Of Qos
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 25. Information of QoS The data transmission between the Luna G3 APAP / Luna G3 CPAP with a Cellular ® ® Module and iCodeConnect is a daily transmission. The Cellular Module transmits the following four types of data: Therapy summary data in a defined period of time, compliance data, system settings, and device information. -
Page 45: Emc Requirements
Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® 26. EMC Requirements Guidance and manufacturer's declaration - electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The user of the device should ensure that it is used in such an environment. - Page 46 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment.
- Page 47 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Guidance and manufacturer's declaration - electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The user of the device should make sure that it is used in such an environment.
- Page 48 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the...
- Page 49 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® Recommended separation distances between RF wireless communications equipment The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between RF wireless communications equipment and the device as recommended below, according to the maximum output power of the communications equipment.
- Page 50 Luna G3 APAP / Luna G3 CPAP User Manual V1.0 ® ® WARNINGS! • The device should not be used in the vicinity of other electronic equipment such as diathermy, electrocautery and radio frequency identification (RFID), security systems (such as electromagnetic anti-theft systems and metal detectors), cell phone, transceiver or radio control products.
-
Page 51: Limited Warranty
(1) year for main device and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. If the product fails to perform in accordance with the product specifications, 3B Medical, Inc. will repair or replace, at its option, the defective material or part.
