Washing Machine
User Manual
WTB841R2W
EN
Document Number=
2820525983_EN/ 24-07-17.(15:27)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTB841R2W and is the answer not in the manual?

Questions and answers

Related Manuals for Beko WTB841R2W

Summary of Contents for Beko WTB841R2W

  • Page 1 Washing Machine User Manual WTB841R2W Document Number= 2820525983_EN/ 24-07-17.(15:27)
  • Page 2 Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 General safety instructions 1.1 Life and property safety ---------------------------------------------------------------------------5 1.2 Children's safety -----------------------------------------------------------------------------------6 1.3 Electrical safety ------------------------------------------------------------------------------------6 1.4 Hot surface safety ---------------------------------------------------------------------------------7 2 Important instructions for environment 2.1 Compliance with WEEE Directive ------------------------------------------------------------------8 2.2 Package information ------------------------------------------------------------------------------8 3 Intended use 4 Your product 4.1 Overview -------------------------------------------------------------------------------------------9...
  • Page 4 TABLE OF CONTENTS 4.6.14 Loading door lock ---------------------------------------------------------------------------------------30 4.6.15 Changing the selections after programme has started -----------------------------------------------31 4.6.16 Cancelling the programme------------------------------------------------------------------------------31 4.6.17 End of programme --------------------------------------------------------------------------------------31 4.6.18 Your machine features "Standby Mode". --------------------------------------------------------------32 4.7 Maintenance and cleaning ------------------------------------------------------------------------33 4.7.1 Cleaning the detergent drawer --------------------------------------------------------------------------33 4.7.2 Cleaning the loading door and the drum ----------------------------------------------------------------33 4.7.3 Cleaning the body and control panel --------------------------------------------------------------------33 4.7.4 Cleaning the water intake filters ------------------------------------------------------------------------34...

  • Page 5: General Safety Instructions

    General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device.

  • Page 6: Children's Safety

    1.2 Children's safety This product can be used by the children who are at the age of 8 and over and the people whose physical, sensory or mental skills are not fully developed or who do not have necessary required experience and knowledge as long as they are supervised or trained about the safe use of the product and its risks.

  • Page 7: Hot Surface Safety

    Do not wash the product by spraying or pouring water onto it! Risk of electric shock! Never touch the power cable plug with wet hands! Do not grab the power cord to unplug the machine, always unplug it by holding the socket with one hand, and pulling the plug with the other hand.

  • Page 8: Important Instructions For Environment

    Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling.

  • Page 9: Your Product

    Your product 4.1 Overview 1- Power cable 2- Top panel 3- Control panel 4- Drain hose 5- Loading door 6- Filter cap 7- Adjustable feet 8- Detergent drawer 9 / EN Washing Machine / User’s Manual...

  • Page 10: Package Contents

    4.2 Package Contents 9- Power cable 10- Drain hose 11- Transportation safety bolts* 12- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 13- Liquid detergent container** 14- User Manual 15- Blind plug***...

  • Page 11: Technical Specifications

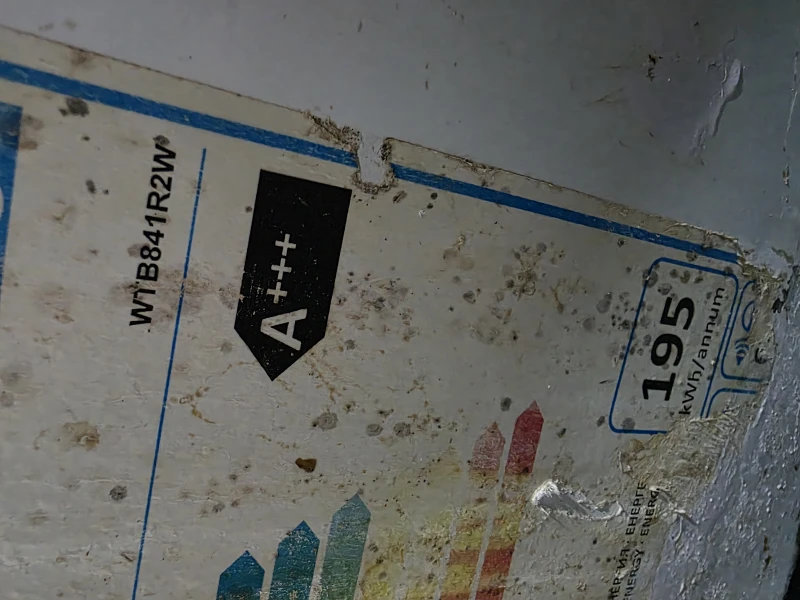

    4.3 Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark Beko Model name WTB841R2W Rated capacity (kg) Energy efficiency class / Scale from A+++ (Highest Efficiency) to D (Lowest Efficiency) A+++ Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 1.100...

  • Page 12: Installation

    4.4 Installation • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.

  • Page 13: Removing The Transportation Locks

    4.4.3 Removing the transportation locks Loose all bolts with an appropriate wrench until they turn freely. Remove the transport safety bolts by turning them slightly. Insert the plastic covers in the bag containing the user manual to the openings on the rear panel.

  • Page 14: Connecting The Drain Hose To The Drain

    Tighten the nuts of the hose by hand. Never use a tool when tightening the nuts. When hose connection is completed, check whether there is leak problems at the connection points by opening the taps fully. If any leaks occur, turn off the tap and remove the nut.

  • Page 15: Adjusting The Feet

    4.4.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. CAUTION: Do not use any tools to loosen the lock nuts.
  • Page 16 Electrical requirements Before you insert the plug into the wall socket make sure that the voltage and the frequency shown in the rating label corresponds to your electricity supply. We recommend that this appliance be connected to the mains supply via a suitable switched and fused socket in a readily accessible position.

  • Page 17: Initial Use

    Transportation of the product 1. Unplug the product before transporting it. 2. Remove water drain and water supply connections. 3. Drain all water that has remained in the product. 4. Install transportation safety bolts in the reverse order of removal procedure. Never move the product without the transportation safety bolts properly fixed in place! WARNING: Packaging materials are dangerous to children.

  • Page 18: Preparation

    4.5 Preparation 4.5.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. LAUNDRY WASH SYMBOLS Symbols for washing on machine WASH Maximum...

  • Page 19: Preparing Laundry For Washing

    4.5.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the product. Remove the metal pieces or wash the clothes by putting them in a laundry bag or pillow case. •...

  • Page 20: Loading The Laundry

    4.5.4 Loading the laundry 1. Open the laundry cover. 2. Put the laundry items into the product in a loose manner. 3. Push and close the loading cover until you hear the locking sound. Ensure that no items are caught in the door. The loading door is locked while a programme is running. The door can only be opened a while after the programme comes to an end.
  • Page 21 Choosing the detergent type Detergent type to be used depends on the fabric type and color. • Use different detergents for coloured and white laundry. • Wash your delicate clothes only with special detergents (liquid detergent, wool shampoo, etc.) used solely for delicate clothes. •...
  • Page 22 Using gel and tablet detergent • If the gel detergent thickness is fluidal and your product does not contain a special liquid detergent cup, put the gel detergent into the main wash detergent compartment during first water intake. If your product contains a liquid detergent cup, fill the detergent into this cup before starting the programme.

  • Page 23: Tips For Efficient Washing

    4.5.7 Tips for efficient washing Clothes Delicates/ Light Colours and Black/Dark Colours Woolens/ Whites Colours Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based on range based on based on soiling level: based on soiling level: soiling level: cold soiling level: cold 40-90 o C)

  • Page 24: Operating The Product

    4.6 Operating the product 4.6.1 Control panel WTB841R2W Baby&Toddler Clothing Cottons 1400 Ready 90° Shirts Cottons Eco 60° 1200 Wash Lingerie Synthetics 40° Rinse Daily Quick 30° Spin Dark Care Super Short 20° Cancel Sports Mixed Fabrics Extra Start/ Temp.

  • Page 25: Programme And Consumption Table

    4.6.4 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C 92.98 2.25 1400 • • • Cold-90 Cottons 1.70 1400 • • • Cold-90 1.05 1400 • • • Cold-90 60** 1.10 1400 Cold-60 Cottons Eco 60** 43.50 0.70 1400 Cold-60...

  • Page 26: Main Programmes

    4.6.5 Main programmes Depending on the type of fabric, use the following main programmes. • Cottons You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When the quick wash function button is pressed, programme duration becomes notably shorter but effective washing performance is ensured with intense washing movements.
  • Page 27 • Delicates You can wash your delicate clothes such as cotton/synthetic blended knitwear or hosiery in this programme. It washes with more delicate washing action. Wash your clothes whose colour you want to preserve either at 20degrees or by selecting the cold wash option. •...

  • Page 28: Functions/Programmes Selected By Pressing The Function Buttons For 3 Seconds

    • Prewash A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time. Prewash without detergent is recommended for tulle and curtains. • Fast+ When this function is selected, the durations of the relevant programmes get shorter by 50%.

  • Page 29: Delayed Start

    • Child lock 3 Use Child Lock function to prevent children from tampering with the machine. Thus you can avoid any changes in a running programme. If the Programme Selection knob is turned when the Child Lock is active, "Con" appears on the display.

  • Page 30: Starting The Programme

    Changing the delayed start period If you want to change the time during countdown: 1. Press the Delayed Start button. Time will increase by 1 hour each time you press the button. 2. If you want to decrease the delayed start time, press Delayed Start button repeatedly until the desired delayed start time appears on the display.

  • Page 31: Changing The Selections After Programme Has Started

    4.6.15 Changing the selections after programme has started Switching the machine to pause mode Press the Start / Pause button to switch the machine to pause mode while a programme is running. The light of the step which the machine is in starts flashing in the Programme Follow-up indicator to show that the machine has been switched to the pause mode.

  • Page 32: Your Machine Features "Standby Mode

    4.6.18 Your machine features "Standby Mode". After you switch on your machine with On-Off button, if no programme is started or no other procedure is performed at the selection step or no action is taken within approx. 2 minutes after the selected programme ends, your machine will switch to energy saving mode automatically.

  • Page 33: Maintenance And Cleaning

    4.7 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.7.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.

  • Page 34: Cleaning The Water Intake Filters

    4.7.4 Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the product and also at the end of each water intake hose where they are connected to the tap. These filters prevent foreign substances and dirt in the water to enter the product.
  • Page 35 2. Open the filter cover. 3 Follow the below procedures in order to drain water. If the product has an emergency water draining hose, in order to drain the water: Pull the emergency draining hose out from its seat Place a large container at the end of the hose. Drain the water into the container by pulling out the plug at the end of the hose.

  • Page 36: Troubleshooting

    Troubleshooting Problem Reason Solution Programme does not start • *Press the Start / Pause / Cancel Start / Pause / Cancel button was not pressed. button. after closing the door. • Reduce the amount of laundry and It may be difficult to close the loading door in case make sure that the loading door is of excessive loading.
  • Page 37 Problem Reason Solution Loading door cannot be Door lock is activated because of the water level • Drain the water by running the Pump or Spin programme. in the machine. opened. • Wait until the programme completes. Machine is heating up the water or it is at the spinning cycle.
  • Page 38 Problem Reason Solution Washing performance is Insufficient amount of detergent has been used • Use the recommended amount of detergent appropriate for water over a long period of time. poor: Laundry turns grey. hardness and the laundry. (**) • Select the proper temperature for the Washing was made at low temperatures for a laundry to be washed.
  • Page 39 Problem Reason Solution It does not rinse well. The amount, brand and storage conditions of the • Use a detergent appropriate for the washing machine and your detergent used are inappropriate. laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
  • Page 40 Problem Reason Solution Detergent residue in the Detergent is put in wet drawer. • Dry the detergent drawer before putting in detergent. detergent drawer. (**) • Keep detergents closed in an Detergent has gotten damp. environment free of humidity and do not expose them to excessive temperatures.
  • Page 43 If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document. Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Beko Customer Help-Line. Tel: 0845 600 4911...
  • Page 44 Guarantee Washing Machine Your new Beko product is guaranteed against the cost of breakdown repairs for twelve months from the date of the original purchase. What is covered? • Repairs necessary as a result of faulty materials, defective components or manufacturing defect.
