Costway Honey Joy User Manual

Kids ride-on car
Hide thumbs

Advertisement

Table of Contents

Kids Ride-On Car
TY327692

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Honey Joy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway Honey Joy

Summary of Contents for Costway Honey Joy

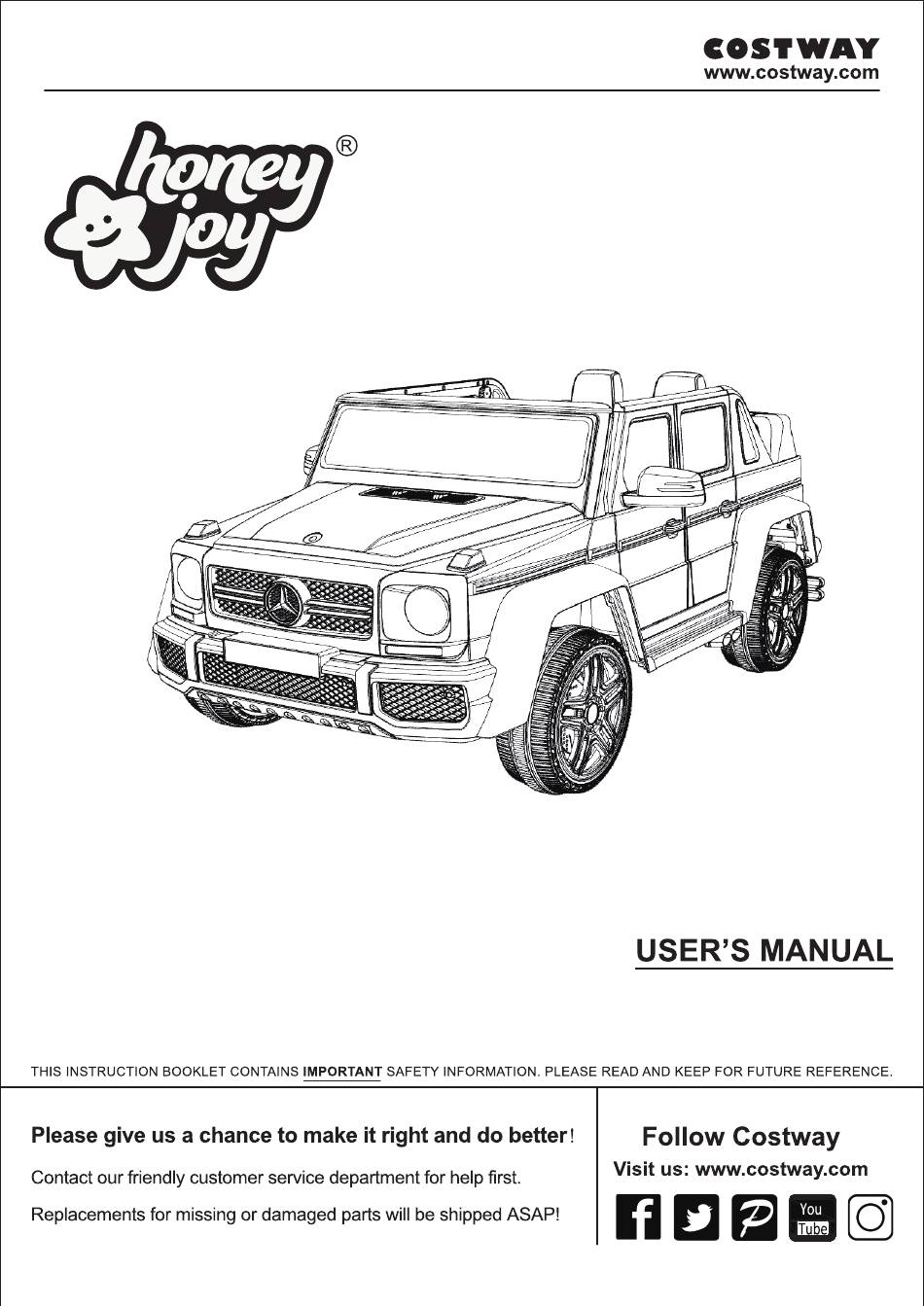

  • Page 1 Kids Ride-On Car TY327692...
  • Page 2 Please read all instructions carefully and keep it for future reference. Warnings: Attention! Use it with protective equipment. Attention! Not use it in the traffic. Attention! The product is not suitable for the children under 3 years. General Warnings: The product must be installed and used under the supervision of an adult. Read through each step carefully and follow the proper order.

  • Page 3: Before Assembling

    ◆ Please read the manual carefully before assembling; ◆ Preserve the manual properly for future reference; ◆The manual is for assembling and using reference only. Details will be possibly improved and updated, including structure, appearance, packing, functions, and etc. Please refer to the real object as standard if there is something different from the manual.

  • Page 4: Exploded View And Parts List

    3. Exploded View and Parts List Parts Name Part Name Body Seat pad Steer Wheel Seat back Car window(L/R) Screw kit Rear view mirror manual windshield Rear side windows(L/R) Front wheel Rear trunk Rear wheel(driving) Rear bumper Wheel cover Remote Motor(L/R) charger Note: some parts need to be fixed from 2 sides.
  • Page 5 4. Wheels Assembling A.Rear driving wheel: Put the axle through the body, and assemble the motor, wheel by shim and M10 nut, then fix the wheel cover on to right buckle position and press it to lock. (Note: motors need to be distinguished as Left & Right.） B.Front wheel: assemble the wheels onto the axle, and put shim and M10 nut to fix it.
  • Page 6 5. Rear Trunk，Window & rear view mirror Assembling A.Put 2 rear side windows to related positions as picture shows, and lock it by buckle(L and R different), and then assemble the rear trunk onto related positions, then fix it by 4X12 tapping screw;...
  • Page 7 6. Battery wire connecting & seat assembling A.Battery is located under the seat pad. Connect the red terminal to the red buckle of the battery. B.Put the seat back onto the car body accordingly, and insert the seat pad into right positions...
  • Page 8 7. Steer Wheel and Windshield assembling A.Connect the wire terminals and put the steer wheel onto right position and lock it itself. B.Put the windshield onto the right position and press it into the slot, and then fix it by 4 * 12 tapping screws.
  • Page 9 8. Functions Sketch 1、Multifunctional control board; 2、Power switch; 3、Music button; 4、Forward/reverse switch; 5、Charging socket; 6、Pedal accelerator switch: pedal to move, release it to stop the car gradually; 1.USB port: play music files in USB device. 2.TF card port: play music files in TF card device.
  • Page 10 9. Functions of Remote: Note：Use screwdriver to get screws off and open battery box，install 2 pc AAA 1.5V batteries （not provided in the package) in, and fix it with screws. The car is with remote priority function: while it is controlled by remote, the step switch does not work;...
  • Page 11 10. Warnings & Safety Alert: Warning! *Choking Hazard: Small parts, Not for kids under 3 years. *Dispose of plastic bags carefully. It’s dangerous to kids. *Adult assembly required.Use care when unpacking as the small parts / sharp edges of the parts to be assembled may pose a hazard.

  • Page 12: Fuse Maintenance

    12. Warning on battery & charging！ 1.Don’t change the structure and electric cables. Repairing must be performed by professional staff. 2.Don’t use it for other functions. 3.Connect the battery in right order. 4.Don’t connect battery in short circuit. 5.Non-rechargeable battery can not be charged. 6.Charging must be arranged by Adult, or under their guidance.

  • Page 13: Troubleshooting

    14. Trouble Shooting...
  • Page 14 DISPOSAL OF BATTERIES: CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED. Dispose of old batteries at an approved battery dumping station; Contact your local environmental protection agency office for additional information. Adult assembly required. Use care when unpacking as the small parts / sharp edges of the parts to be assembled may pose a hazard.Never leave child unattended.
