National Instruments TB-4304 User Manual page 6

1
3
4
8
1 Strain-Relief Screws
2 Strain-Relief Bar
3 Tie Wrap Holes
5. Insert the stripped end of the shielded signal wires fully into the appropriate terminal. Refer
to the label next to each screw terminal to determine the function of the terminal. The
NI PXIe-4304/4305 User Manual provides more detailed wiring information. Make sure no
exposed wire extends past the screw terminal. Exposed wire increases the risk of a short
circuit that can cause circuit failure.
6 | ni.com | NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

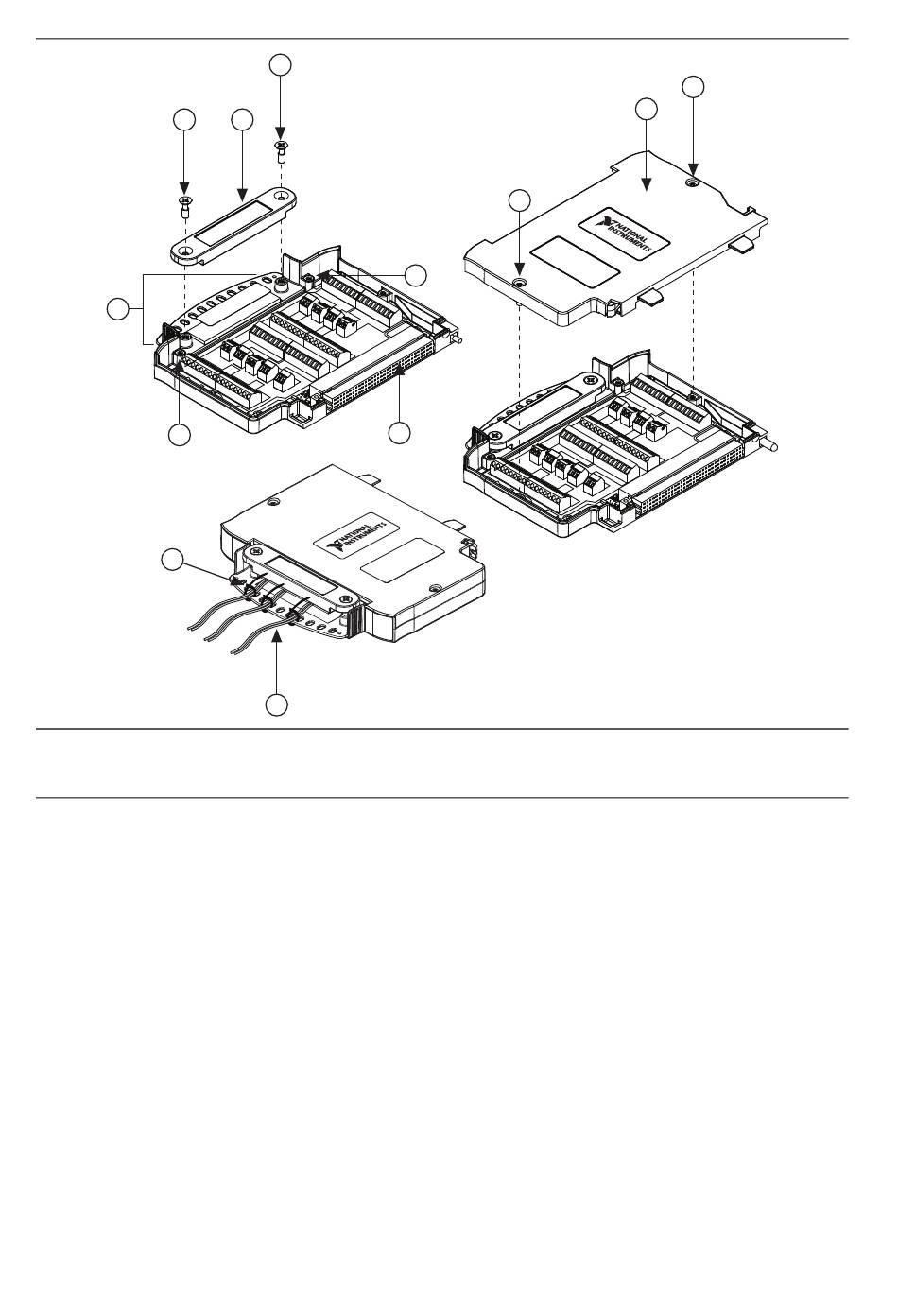

Figure 3. TB-4304 Parts Locator Diagram
1
2
5
9
4 Ground Lugs
5 Terminal Block to Module Connector
6 Captive Top Cover Screws
6
4
6
7
7 Top Cover
8 Tie Wraps
9 Shielded Signal Wires
