Everpure E10 Installation And Operation Manual

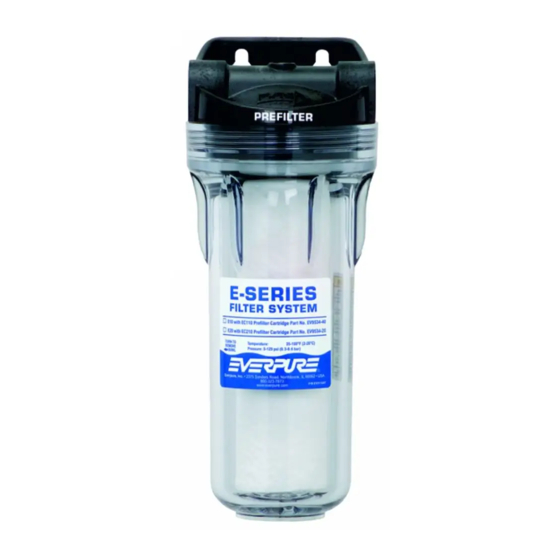

E-Series prefilters are designed to increase the life of Everpure carbon water filters in areas
with an unusual amount of dirt in the water. With a 10 micron (nominal) rating, the Everpure
prefilter traps much of the dirt which contributes to scale buildup in ice makers, and clogs the
delicate orifices of other water-using equipment.

PARTS LIST

Description
Head
O-Ring (E-Series)
EC110 Coarse Prefilter Cartridge 40 pk.
EC110 Coarse Prefilter Cartridge 12 pk.
EC210 Coarse Prefilter Cartridge 20 pk.
EC210 Coarse Prefilter Cartridge 6 pk.
10" Bowl, clear
20" Bowl, clear
10" Bowl, opaque
20" Bowl, opaque
Reducer Bushing for inlet and outlet ports
3/4" NPT x 3/8" FPT (E10)
Reducer Bushing for inlet and outlet ports
3/4" NPT x 1/2" FPT (E20)
Filter wrench
*The Standard EC110 Cartridge is provided with each Model E10 Filter. It is rated at 10 microns
nominally and has a more-than-adequate life when filtering water with "normal" or average
dirt loads. The EC210 cartridge is provided with each E20 filter, which is also rated at 10
microns nominally.

APPLICATIONS AND FEATURES

• General purpose coarse filtration
• Pre-filtration for fine filters
• Reduces dirt, rust, oxidized iron and sulfide
• High-strength materials

INSTALLATION

The E10 coarse prefilter (part number EV9795-80) includes two 3/8" FPT optional reducer
bushings. The E20 course prefilter (part number EV9795-90) includes two 1/2" FPT optional
reducer bushings. Before starting the installation, be sure to shut off both power and water to
the equipment being served by your E-Series prefilter. For servicing purposes, a manual shut-
off valve should be installed in the water line.
IMPORTANT: Always use a NSF approved pipe dope or Teflon tape at all thread connections.
1. Select a suitable location for mounting the prefilter and install mounting screws 2 1/4"
apart. The prefilter should be close to the machine served and mounted ahead of the
carbon filters for optimum performance.
2. Remove the prefilter from the carton and separate the bowl and head assembly. Set the
bowl and cartridge aside. If installing the EV9795-80 coarse filter, assemble (2) 3/8" FPT
x 3/4" MPT bushings to the head (as needed). If installing the EV9795-90 coarse filter,
assemble (2) 3/4" MPT x 1/2" FPT bushings to the head (as needed). Be sure to use a NSF
approved pipe dope or teflon tape.
3. Check to be sure the o-ring on the bowl is sufficiently lubricated. If additional lubrication is
needed, use only a high quality food grade silicone lubricant.
4. Position the cartridge on the guide seat in the bottom of the bowl. Then screw the bowl
onto the head, by hand; snug with filter wrench (EV3112-41)
Installation and Operation Guide
Part No.
EV3112-37
EV3112-40
EV9534-40
EV9534-12
EV9534-20
EV9534-26
EV3112-39
EV3112-38
EV3112-56
EV3112-55
EV3105-91
EV3098-23
EV3112-41
E10 & E20 Prefilter Systems
E10 Prefilter–EV9795-80
E20 Prefilter–EV9795-90
EV3114-48B FE05
