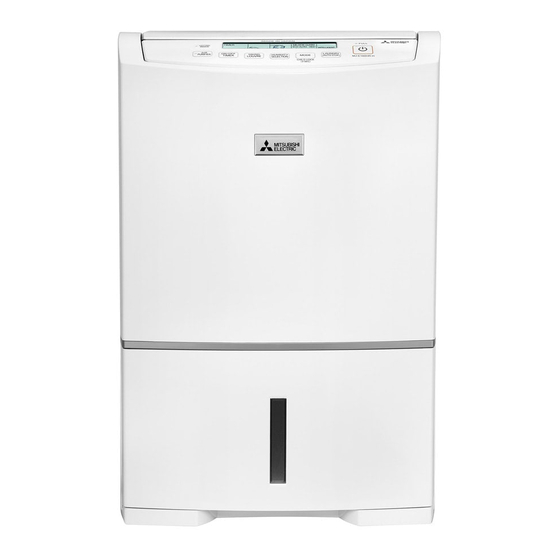

DEHUMIDIFIER
MODEL
MJ-E160HR-H
INSTRUCTION MANUAL
Features
z Compact and powerful
z Air purifying function with PM2.5
filter
z Bathroom mildew guard
This appliance is designed for use in Hong Kong and
Macau only and please do not use in any other countries.
z This appliance is not intended for users (including children) with insufficient physiological, sensory or mental capabilities or
the lack of experience or knowledge, unless it is used under the supervision or instruction of a qualified safety personnel.
z Children should be supervised to ensure that they do not play with the appliance.
z If the power cord is damaged, it must be replaced by the manufacturer, its services agent in order to avoid a hazard.
Table of Contents
z
EASY/AUTO/HIGH/LOW/MILDEW GUARD
OFF TIMER/ON TIMER
English
2
3
5
5
6
7
7
8
9
9
10
12
15
15
15
16
17
18
19
20
21
21
22
24
24
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric MJ-E160HR-H
Summary of Contents for Mitsubishi Electric MJ-E160HR-H
-
Page 1: Table Of Contents
DEHUMIDIFIER MODEL MJ-E160HR-H English INSTRUCTION MANUAL Table of Contents z Recommended Ways of Using the Unit Features z Precautions z Compact and powerful z Warning z Air purifying function with PM2.5 z Tips on Dehumidification filter z Features of This Dehumidifier... -
Page 2: Recommended Ways Of Z Using The Unit
Recommended Ways of Using the Unit When you want to dry laundry When you want to perform automatic operation ˜ INTELLIGENT LAUNDRY When you want to perform continuous operation Tips on Drying Laundry ˜ HIGH 12-13 When you want to dehumidify 12-13 When you want to set the humidity ˜... -
Page 3: Precautions Z
Continuing to operate the unit may result in fire or electric shock. Contact your dealer or Mitsubishi Electric Service The plastic parts may melt and cause fire. Centre for consultation. Do not put your fingers... - Page 4 Precautions (Cont.) CAUTION Do not cover an air outlet or Do not use the unit for special air intake with laundry, cloth, purposes, such as curtain, etc. preservation of food, art or scientific works. This results in poor ventilation and may cause heat generation/fire.
-
Page 5: Tips On Dehumidification Z
Tips on Dehumidification CAUTION Grasp the plug and remove Drain the water tank before use. from the power socket. When removing the plug from Close the door and windows during the power socket, do not pull on it diagonally or by the cord as this operation. -
Page 6: Features Of This Dehumidifier Z
Features of This Dehumidifier ˜ The unit can operate in a room ˜ Room temperature may rise 2–4°C during operation. temperature range of 5–35°C. The dehumidifier does not have a cooler function. Due If the room temperature exceeds 35°C, the unit may to heat produced during operation, the room temperature operate in blower mode or increase the airflow. -
Page 7: Names And Functions Of Parts Z
It is impossible to remove the back panel Air Outlet because the four places shown are tightened with four special screws. Control Panel If the unit has any malfunctions, contact the Mitsubishi Electric Service Centre. Tank Lid P9·19 Tank Guard P9·19 Water Tank... -
Page 8: Control Panel/Lcd Display
Names and Functions of Parts (Cont.) Control Panel DRYING INSIDE Switch DRYING INSIDE Lamp FULL Lamp LCD Display Lights when the tank is full of water. ON/OFF TIMER HUMIDITY LAUNDRY Switch SELECTION Switch Switch AIR PURIFIER Switch SWING LOUVRE MODE Switch POWER Switch AIR PURIFIER Lamp Switch... -
Page 9: Before Using Your Dehumidifier Z
Before Using Your Dehumidifier Setting the PM2.5 filter Inserting the water tank correctly The PM2.5 filter is supplied with the unit at time of purchase. Please install it before using the unit. Remove the PM2.5 filter from the Tank lid polyethylene bag. -
Page 10: Drying Laundry
Drying Laundry When in the operation of INTELLIGENT LAUNDRY, the unit will estimate the laundry drying time and stop automatically. z After the unit stops or the power plug is Blip inserted, the compressor will not be activated Press (for compressor protection). The dehumidifier will begin to work in 3 minutes after pressing the POWER switch. - Page 11 Tips on Drying Laundry Make full use of the laundry drying operation to shorten the laundry drying time. How to Hang Clothes z Pull to remove any wrinkles on the laundry. z Properly space the laundry for better ventilation (approximately 5 cm between the laundry). z Hang out the laundry which is difficult to dry to the place with good ventilation.
-
Page 12: Dehumidifying Z
Dehumidifying The operation mode can be selected accordingly to the situation. Blip Press to begin operation. z POWER lamp lights. z The operation mode is displayed. z Louvre opens, and blows air. Select the operation mode. z To select the dehumidifying mode and operate z The operation mode switches each time the button is pressed. - Page 13 EASY To relieve the discomfort from dampness, the unit operates intermittently after the automatic switching of airflow rate. Blowing air is used to control the room temperature rise if the room temperature is high. It is recommended when you want to maintain the Room temperature (°C) comfortable level of humidity.
- Page 14 Dehumidifying (Cont.) MILDEW GUARD In this mode, the unit can dehumidify the bathroom to remove residual moisture and water drops, thus suppressing the mildew growth as a means of mildew prevention. To install the unit Install the unit in the changing room (entrance to the bathroom) (Do not install inside the bathroom) Adjust the unit so that...
-
Page 15: Cleaning The Air (Air Purifier) Z
The lifetime of the PM2.5 filter is one year. (It varies depending on the usage conditions) (Example) Remove the pre-fi lter and replace the PM2.5 fi lter. Removing the fi lter P9 PM2.5 fi lter for replacement ˜ Type: MJPR-EHPFT-HK Contact the Mitsubishi Electric Service Centre for purchase. -
Page 16: Using Louvre Z
Using Louvre The louvre can be made to swing. Select from the 4 possible settings to suit the purpose. Louvre stopped Blip Blip Rear Each time Blip the switch is pressed, the swing direction Blip Upward Press Blip changes. • Automatic louvre starts • The monitor displays louvre direction Blip Wide... -
Page 17: Using Timer Z
Using Timer OFF TIMER operation ON TIMER operation The OFF TIMER can be set between 1 to 12 hours. Set The ON TIMER can be set between 1 to 12 hours. the timer when the power is switched on. Set the timer when the POWER is off. 1 . -
Page 18: Drying Inside Operation Z
Drying Inside Operation The inside of the unit can be dried to suppress mildew growth on the cooler. The DRYING INSIDE operation is recommended after each use of the unit (approx. 1 hour). However, when continuous operation is being performed by continuous drainage (setting hose), there is no need to perform the DRYING INSIDE operation. -
Page 19: Draining Z
Draining When the tank is full (approximately 5.5 L), the unit automatically stops and the FULL lamp lights. Please empty the tank. When the water tank becomes full, the FULL lamp lights. z After pouring out the water, replace the water tank, z FULL lamp lights. -
Page 20: Continuous Drainage Z
Continuous Drainage If a drain is available, the unit can continuously drain water by attaching a commercially available hose (with an internal diameter of 15 mm) to the drain. As the unit does not stop due to the water tank being full, it can be operated for a long period of time without the need to empty the water tank. -
Page 21: Maintenance Z
Maintenance Storage Do not use detergents, cleaning agents for heat After switching the unit POWER off, leave for one day exchange equipment, decontaminative powders, until any residual water inside is removed. Then carry chemically treated cloth, gasoline, volatile oil, thinners, out the following steps. -
Page 22: Troubleshooting Z
Troubleshooting z For the symptoms listed below, refer to the remedies listed right. Symptom Cause/Remedy z The unit blows out warm air because dehumidified air passes through The unit blows warm air. the re-heater. (There is no cooler function.) This is not a malfunction. z Check to see if the temperature/humidity is low. - Page 23 If the symptoms persist even after following the prescribed remedies, or the error message does not disappear, unplug the power cord, and contact the Mitsubishi Electric Service Centre. z When unplugging and plugging back the power cord into the power socket, wait at least one minute before...
-
Page 24: Specifications Z
Material: PET and PS z Unit Do not disassemble. Dispose according to the garbage regulations in your district. Sole Agent in Hong Kong Mitsubishi Electric (Hong Kong) Ltd. Head office -Tel.:2510 0555, Service Centre – Tel.: 2427 8484 Web Site:https://www.mitsubishielectric.com.hk/en Please complete the following form for your future reference. Place of Purchase: Telephone Number:...
