10.2.4. High resolution mode

The high resolution mode of SS-HQ1 is able to realize by using a general lens and general optical LPF. We
use the optical LPF of Kyocera Kinseki, Ltd. in our evaluation board. Please refer to the chapter "3.10 Optical
Filters" about the details of optical LPF.
In addition, it can check more effectively by the following setup.
• 760H system
• Without external Y-LPF
• DACMODE(CAT1_Byte3_bit2)=1[h] (YC separate)
High resolution processing

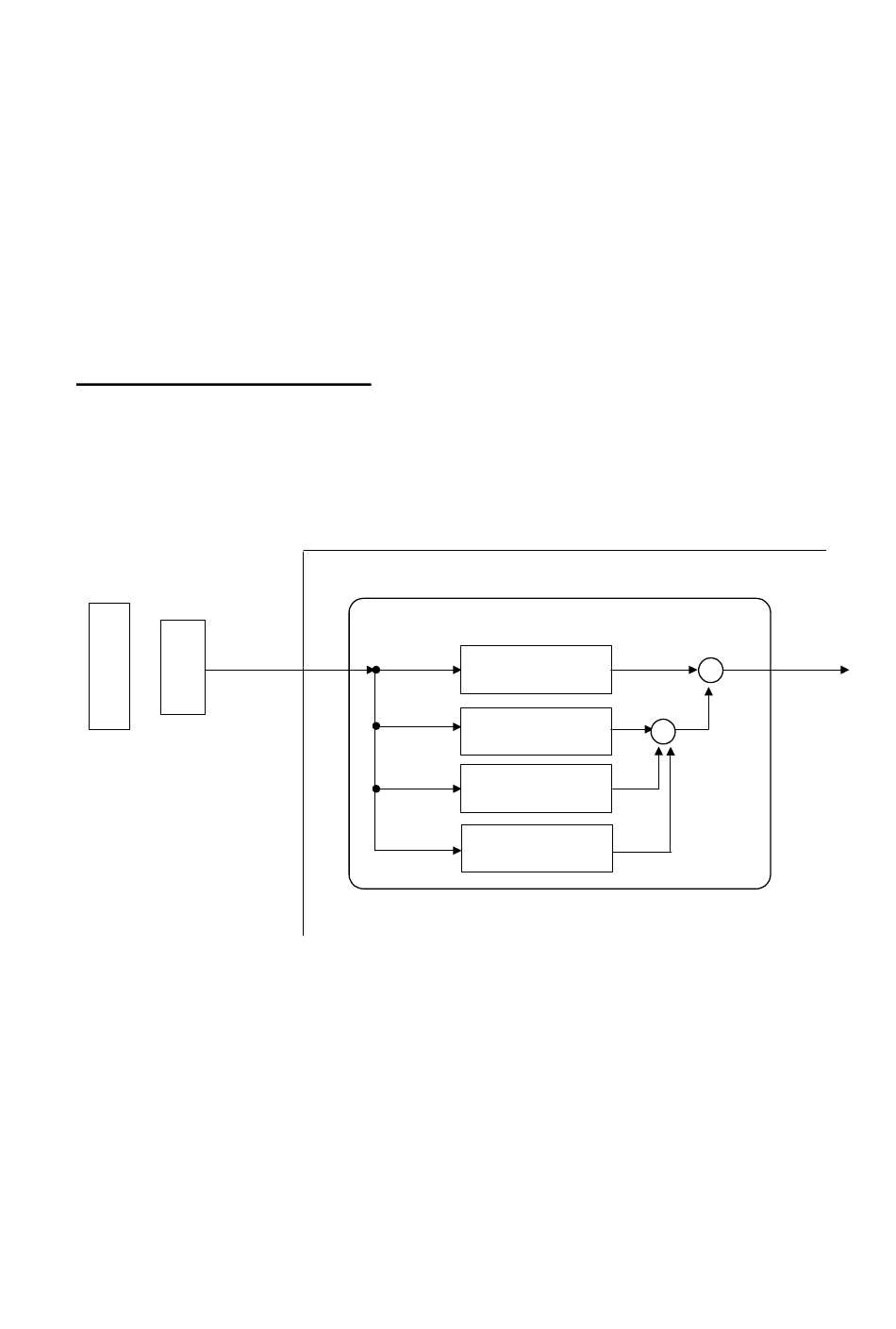

In SS-HQ1, as shown in the following figure, the newly generated high frequency horizontal aperture signal is
added to a luminosity signal processing system.
CXD3172AR
O-LPF
CCD
Y_Block
+
H_LPF
+
H_APECOM
The block for
highresolution
V_APECOM
Fig 10.2-7 Aperture Compensation Block and High Resolution Block
