Summary of Contents for Grundig GX-3800

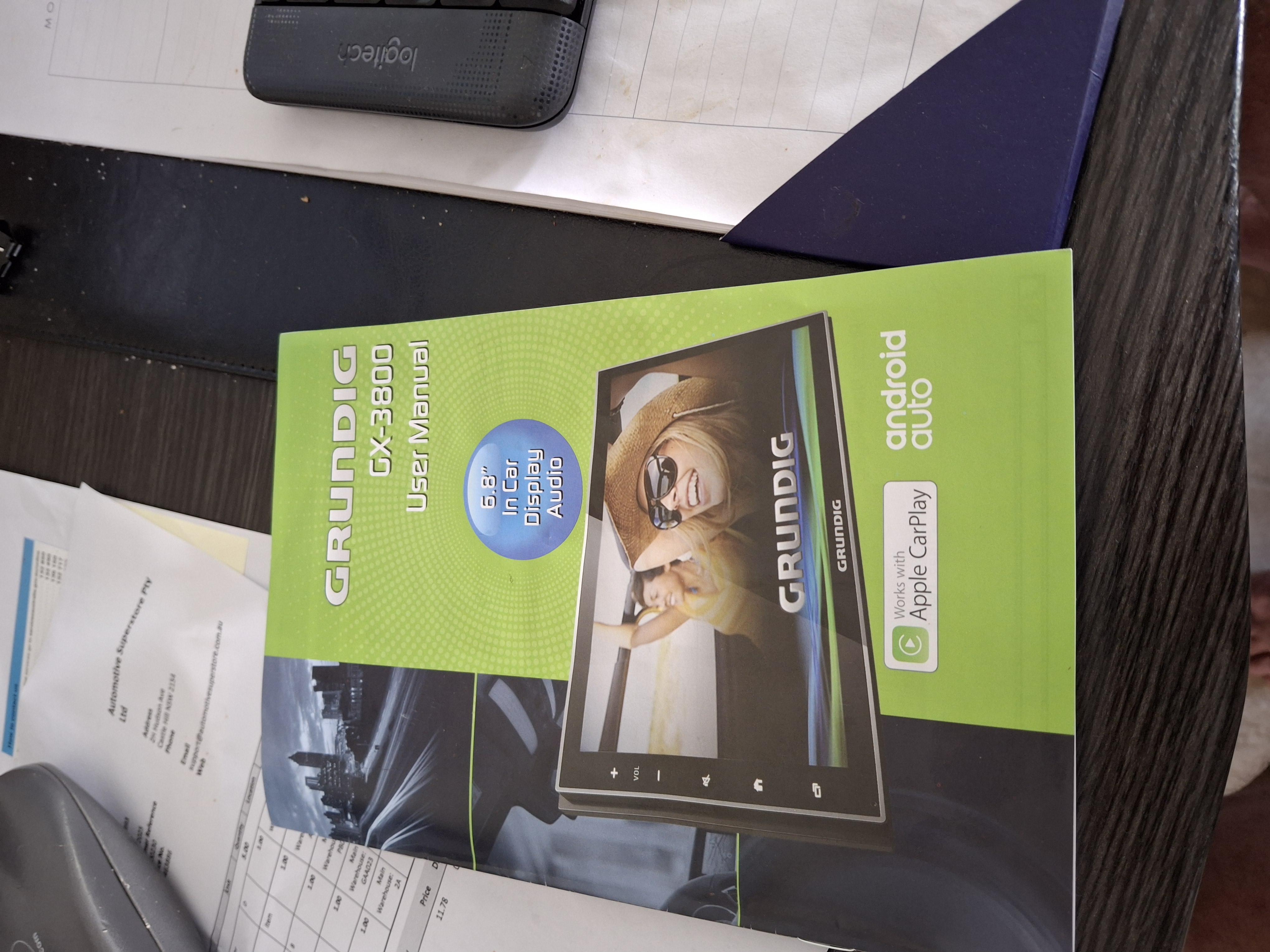

- Page 1 GX-3800 GX-3800 User Manual User Manual 6.8” 6.8” In Car In Car Display Display Audio Audio...
- Page 2 Getting Started Getting Started Initial Setup Please select the suitable Country Are/Language, Tap button Finish Finish to confirm. Perform this setup when you use this unit first time. TIPS Overview Of The Unit Functions of the Buttons on the Head Unit Volume Up Volume Down Radio...
- Page 3 Getting Started Getting Started Overview Of The Unit Home Screen Descriptions Rear Aux SmartPhone Connectivity Tuner Radio DVR Mode Front USB Setting Menu Bluetooth Audio Audio Setting Bluetooth Phone Support USB Playback Mode Video Music Phone SmartPhone Charge Connectivity 3 EN...
- Page 4 Getting Started Getting Started Overview Of The Unit View All Sources Swipe left to display All Sources Shortcut Tap and hold the icon and drag it to the shortcut area Swipe left/right to display/hidden shortcut Widget Swipe right to display widget return to Now Playing mode 4 EN...
- Page 5 Listening To The Radio Listening To The Radio Radio Operation Station Information Hold: Auto Seek Press: Manual Seek Radio Setup Preset Stations Change Band (FM/AM) Radio Preset Station List Tap and hold to store stations TIPS to display the Preset list, tap again to hide. 5 EN...
- Page 6 USB Playback USB Playback USB Media Operation Drag to Fast Forward/Backward Play Track Play/ Track Setup Content Down Pause List USB Media Content List Return to Now Playing Mode Category Video List List Music List Link Search Folder List USB Album Art Wallpaper You can set the Album Art to the background image.
- Page 7 Bluetooth Bluetooth How To Pair the Device ? GRUNDIG Connected “GRUNDIG” Please search and connect under bluetooth option of your phone. Connect/Delete the Bluetooth Device iPhone 6 Honor 10 1. Tap in the bluetooth setup menu. 2. Touch the device name you want to connect/delete.
- Page 8 Bluetooth Bluetooth Phone Call Reject Call Phone Paired Call Voice Dial Delete Dial Call Keypad Record book Device List Transfer Assistant Call To Download the Phonebook, please Authorize the request TIPS on your phone Voice Assistant You can access the voice recognition function of the phone connected to this Car Av System.
- Page 9 Smart Phone Connectivity Smart Phone Connectivity Smart phone connectivity gives phone users an incredibly intuitive way to make calls, use maps, listen to music and access message with just a word or a touch. Please select the phone connectivity device from the menu setting Android Auto...
- Page 10 Smart Phone Connectivity Smart Phone Connectivity About Android Mirroring Android Mirroring is a simpler way to direct mirror to use your phone in the Car AV System. Connect the Android Phone Connection failed Radio Phone Mirror Bluetooth Front USB Connection Successful Android Mirror Android Mirror Phone...
- Page 11 Smart Phone Connectivity Smart Phone Connectivity How to setup Android Mirroring two way control? Bluetooth connect Connect your phone to car AV system by USB cable, car AV system will connect bluetooth with your phone automatically. the Android Mirroring two way control will be activated once the bluetooth is connected successfully.
- Page 12 Smart Phone Connectivity Smart Phone Connectivity About iPhone Mirroring iPhone Mirroring is a simpler way to direct mirror to use your phone in the Car AV System Connect an iPhone Connection failed Radio Phone Mirror Bluetooth Front USB Connection Successful iPhone Mirror iPhone Mirror Phone...
- Page 13 Smart Phone Connectivity Smart Phone Connectivity How to setup iPhone Mirroring two way control? Bluetooth connect Connect your phone to car AV system by USB cable, please go to setting/ bluetooth on your phone, select the bluetooth device of car AV system to connect.
- Page 14 Smart Phone Connectivity Smart Phone Connectivity About Apple CarPlay CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product.You can get directions, make calls, send and receive messages, and listen to the the music from iPhone while driving.
- Page 15 Smart Phone Connectivity Smart Phone Connectivity Operation of Apple CarPlay Operation button of Apple Carplay Radio Phone Mirror Hold to activate Siri. Bluetooth Front USB Switch forward and backward between Apple CarPlay and Phone Playback mode Operation button on CarPlay Home Application Buttons Home Exits the CarPlay screen and displays the HOME screen...
- Page 16 Smart Phone Connectivity Smart Phone Connectivity About Android Auto Android Auto enables you to use functions of your Android device convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android device while driving. For details about Android Auto, visit the below adress: https://www.android.com/auto https://support.google.com/androidauto.
- Page 17 Smart Phone Connectivity Smart Phone Connectivity Operation of Android Auto Operation button of Android Auto Radio Phone Mirror Hold to activate Siri. Bluetooth Front USB Switch forward and backward between Apple CarPlay and Phone Playback mode Operation button on Android Auto Home Google Assistant Gauge icon for al car apps Return to Car Home...
- Page 18 24 Bit DSP Audio 24 Bit DSP Audio 24 Bit DSP Audio Operation You can adjust the various settings: 13 Band Equalizer Time Alignment You can customize the equalizer, tap to stored. to adjust the delay time of Delay Delay the selected speaker to to adjust the sound level Cross Over...
- Page 19 24 Bit DSP Audio 24 Bit DSP Audio 24 Bit DSP Audio Operation Fader . Balance / Music Zone to adjust the volume balance around the touched area Fader Fader Balance Balance to select perfect listening position Music Music Zone Zone X-Bass Tap to Set the amount of bass boost,...
- Page 20 Wiring Diagram Wiring Diagram Brake Switch Parking Brake Wire (Light Green) Optional Ground (Not included) Reverse Camera Wire (Purple) Extrenal Mic Jack Steering (Black) (White) wheel remote OE SWC AD (Black-GND) Learn Subwoofer Out (White) (Black) Steering OE adaptor wheel remote (not include) OE SWC IR Remote In...
- Page 21 Specifications Specifications TFT Monitor section Audio section Screen Size :6.8 inches Maximum Power : 50Wx4 Display Resolution :1024x600 dots Continuous Power : 22 Wx4 Contrast Ratio :500 Output (RMS) Preout Level V ( ) : 4V/10kΩ Preout Impedance : 1.3kΩ USB interface section : 4-8 Ω...
- Page 22 FCC statements: Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including...
- Page 23 IC statements: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s).
