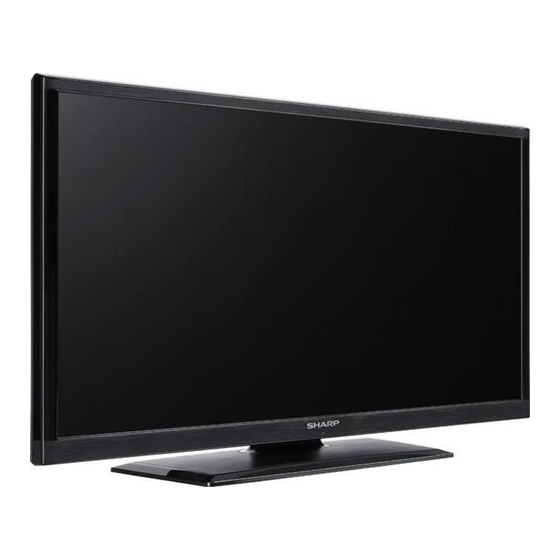

Sharp LC-32LD145E Service Manual

Led lcd colour television
Hide thumbs Also See for LC-32LD145E:
Table of Contents

Advertisement

Quick Links

TÉLÉVISEUR LCD COULEUR
50mm
40mm
DVB-T / DVB-C (HDTV), PAL
31.5mm
25mm
20mm
TABLE OF CONTENTS .......................................................................................................................
ELECTRICAL SPECIFICATIONS .......................................................................................................
IMPORTANT SERVICE SAFETY PRECAUTIONS ................................................................................
OPERATION MANUAL ...........................................................................................................................
DIMENSIONS .................................................................................................................................... 11
CAUTION WHEN REMOVE THE REAR CABINET .................................................................................... 13
INTRODUCTION ............................................................................................................................... 16
CIRCUIT DESCRIPTIONS .................................................................................................................. 19
SERVICE MENU SETTINGS .................................................................................................................... 49
SOFWARE UPDATE .............................................................................................................................. 54
TROUBLESHOOTING ........................................................................................................................... 54
OVERALL WIRING DIAGRAM ........................................................................................................ 63
SCHEMATIC DIAGRAMANS ........................................................................................................... 65
REPLACEMENT PART LISTING ................................................................................................ 83
MODE D'EMPLOI
/ SECAM
B/G, I
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identical
to those specified should be used.
CONTENTS
SHARP CORPORATION
SERVICE MANUAL
LED LCD
COLOUR TELEVISION
SYSTEM COLOUR TELEVISION
B/G, D/K, L/L'
MODEL
LC-32LD145E
LC-32LD145K
LC-32LD145V
LC-39LD145E
LC-39LD145K
LC-39LD145V
1
LC-32LD145
LC-39LD145
SE00LC32LD145
Issued:26
17MB82 CHASSIS
This document has been published to
be used for after sales service only.
The contents are subject to change without notice.
July 2013
th
2
4
5
8
