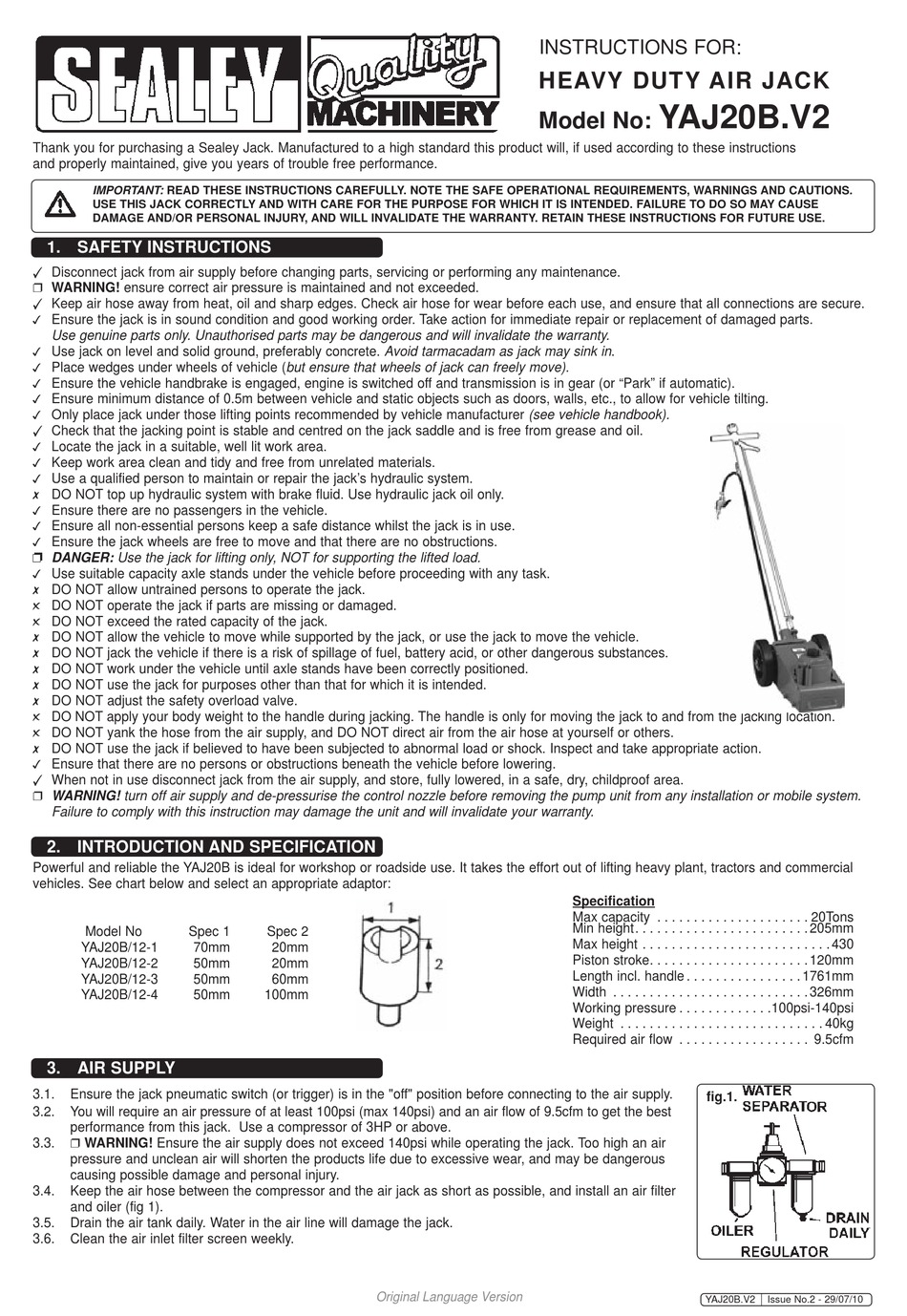

Sealey YAJ20B.V2 Instructions

Thank you for purchasing a Sealey Jack. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
ImpoRtANt: READ THEsE INsTRUCTIoNs CAREfUllY. NoTE THE sAfE oPERATIoNAl REQUIREMENTs, WARNINGs AND CAUTIoNs.
UsE THIs JACK CoRRECTlY AND WITH CARE foR THE PURPosE foR WHICH IT Is INTENDED. fAIlURE To Do so MAY CAUsE
DAMAGE AND/oR PERsoNAl INJURY, AND WIll INVAlIDATE THE WARRANTY. RETAIN THEsE INsTRUCTIoNs foR fUTURE UsE.
1. sAfETY INsTRUCTIoNs
Disconnect jack from air supply before changing parts, servicing or performing any maintenance.
WARNING! ensure correct air pressure is maintained and not exceeded.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure.
 Ensure the jack is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts.
Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 Use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
 Place wedges under wheels of vehicle (but ensure that wheels of jack can freely move).
Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or "Park" if automatic).

 Ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to allow for vehicle tilting.
 Only place jack under those lifting points recommended by vehicle manufacturer (see vehicle handbook).
Check that the jacking point is stable and centred on the jack saddle and is free from grease and oil.
 Locate the jack in a suitable, well lit work area.
 Keep work area clean and tidy and free from unrelated materials.
 Use a qualified person to maintain or repair the jack's hydraulic system.
 DO NOT top up hydraulic system with brake fluid. Use hydraulic jack oil only.
 Ensure there are no passengers in the vehicle.
 Ensure all non-essential persons keep a safe distance whilst the jack is in use.
 Ensure the jack wheels are free to move and that there are no obstructions.
 DANGER: Use the jack for lifting only, NOT for supporting the lifted load.
 Use suitable capacity axle stands under the vehicle before proceeding with any task.
DO NOT allow untrained persons to operate the jack.

DO NOT operate the jack if parts are missing or damaged.
DO NOT exceed the rated capacity of the jack.
DO NOT allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.

DO NOT jack the vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.

DO NOT work under the vehicle until axle stands have been correctly positioned.

DO NOT use the jack for purposes other than that for which it is intended.

DO NOT adjust the safety overload valve.

DO NOT apply your body weight to the handle during jacking. The handle is only for moving the jack to and from the jacking location.
DO NOT yank the hose from the air supply, and DO NOT direct air from the air hose at yourself or others.
DO NOT use the jack if believed to have been subjected to abnormal load or shock. Inspect and take appropriate action.

 Ensure that there are no persons or obstructions beneath the vehicle before lowering.
When not in use disconnect jack from the air supply, and store, fully lowered, in a safe, dry, childproof area.
WARNING! turn off air supply and de-pressurise the control nozzle before removing the pump unit from any installation or mobile system.
Failure to comply with this instruction may damage the unit and will invalidate your warranty.
2. INTRoDUCTIoN AND sPECIfICATIoN
Powerful and reliable the YAJ20B is ideal for workshop or roadside use. It takes the effort out of lifting heavy plant, tractors and commercial
vehicles. See chart below and select an appropriate adaptor:
Model No Spec 1
YAJ20B/12-1 70mm
YAJ20B/12-2 50mm
YAJ20B/12-3 50mm
YAJ20B/12-4 50mm
3. AIR sUPPlY
3.1. Ensure the jack pneumatic switch (or trigger) is in the "off" position before connecting to the air supply.
3.2. You will require an air pressure of at least 100psi (max 140psi) and an air flow of 9.5cfm to get the best
performance from this jack. Use a compressor of 3HP or above.
3.3. WARNING! Ensure the air supply does not exceed 140psi while operating the jack. Too high an air
pressure and unclean air will shorten the products life due to excessive wear, and may be dangerous
causing possible damage and personal injury.
3.4. Keep the air hose between the compressor and the air jack as short as possible, and install an air filter
and oiler (fig 1).
3.5. Drain the air tank daily. Water in the air line will damage the jack.
3.6. Clean the air inlet filter screen weekly.
Spec 2
20mm
20mm
60mm
100mm
Original Language Version
INSTRUCTIONS FOR:
HEAVY DUTY AIR JACK
YAJ20B.V2
Model No:
specification
Max capacity . . . . . . . . . . . . . . . . . . . . . 20Tons
Min height. . . . . . . . . . . . . . . . . . . . . . . . 205mm
Max height . . . . . . . . . . . . . . . . . . . . . . . . . . 430
Piston stroke. . . . . . . . . . . . . . . . . . . . . . 120mm
Length incl. handle . . . . . . . . . . . . . . . . 1761mm
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . 326mm
Working pressure . . . . . . . . . . . . .100psi-140psi
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40kg
Required air flow . . . . . . . . . . . . . . . . . . 9.5cfm
fig.1.
YAJ20B.V2 Issue No.2 - 29/07/10
