- Page 1 Smart Lock Manual Electronic Keypad Deadbolt Lock...
- Page 2 PREFACE Please read this manual before installing. Any question, please contact our customer service. WARNING： This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of your environment, and common sense.
-
Page 3: Table Of Contents
DIRECTORY INTRODUCTION Product Specifications Package Performance INSTALLATION MANUAL Tools Needed Installation Step SMART INSTRUCTION Pairing Lock to Phone App TT LOCK App Operating MATCH the Wi-Fi GATEWAY to the APPLICATION MATCH the TTLOCK APP to the ALEXA APP MATCH the SMART WATCH to the SMART LOCK OPERATION INSTRUCTIONS Setting Admin Passcode Lock/Unlock... -
Page 4: Introduction
INTRODUCTION Product Specifications Item No. Y001 Zinc Alloy Material Weight 2.46 lb Communication mode Bluetooth 4.0ble Unlocking way Bluetooth, Code, Mechanical key Support System Android 4.3 / IOS 7.0 above Unlock time ≈ 1.5 sec Power supply 4pcs AA batteries Static current ≤30uA... -
Page 5: Package
Package Part Description Quantity Keyhole Cover Keypad Double-screw Bolt Latch Wood Screws Strike Plate Box Striking Plate Inside Mounting Plate Flat Screw Receiver Module Short Flat Screw Longest Flat Screw Battery Cover Size Reference Card Drill Bit Needle IC Card < 02 >... -
Page 6: Performance
Performance 1.Smarter and Safer Smart Lock Front Door set out to provide extra home security with keyless codes, Bluetooth unlock, anti-peep password and auto lock (5-200s) to keep your house safe and sound. 2.Real Time Record Through Keyless Door Locks for Homes APP, you could check the unlocking records and incorrect password records from the Admin account in real time. -
Page 7: Installation Manual
INSTALLATION MANUAL Note: Install and test lock with door open to avoid being locked out Tools Needed Phillips Screwdriver Tape Measure Pencil Other Chiseling Tools Installation Step 1.Adjusting Latch Length Note: When performing this operation, please take protective measures and be careful of the metal edge not to injure yourself. <... - Page 8 Hold the right part of the lock tongue with your right hand and turn the left iron piece counter clockwise (about 15 degrees) with your left hand. When the rectangular position of the 2-3/8”(60mm) tick mark changes from convex to concave (as shown), slowly extend the locking latch, and then turn clockwise the inside of the locking latch back to the rectangular position of 2-3/4”(70mm)scale.
- Page 9 3.Install Lock 1)Install Latch Note:Need to keep this way up when inserting the latch. Insert the latch and ensure it is parallel to the door face. A.Mark the outline of the faceplate ,then take out the latch. B.Chisel 1mm-2mm deep along the outline to allow the faceplate to be aligned with the door edge.
- Page 10 Chisel 1mm-2mm deep along the plate outline to allow the plate to be aligned with the door frame. C.Insert the plastic lock groove and the strike plate into door jamb tighten with wood screws. 3)Install Keypad Install double-screw bolt into keypad inner plate.
- Page 11 4)Identify Door Handing The door is "Left-handle" if Whereas the door is "Right-han- the hinges are on the left dle" if the hinges are one the side of the door. right side of the door. Hinge Hinge Left-handle Right-handle 5)Adjust Thumb Turn Piece Rotate the thumb turn piece to Rotate the thumb turn piece to “Horizontal Direction”...
- Page 12 6)Adjust the Toggle Button of the Cover To install the lock for right side To install the lock for left side handling, ensure the toggle handling, ensure the toggle button on the back cover button on the back cover assembly is set to "R". assembly is set to "L".
- Page 13 Connect IC wire to the white port carefully. Note:Ensure the thumb turn piece and the toggle button of the cover in right way. Use 2 short flat screw tighten the receiver module inner battery groove. Longest flat screw connect the receiver module with door. 8)Insert Battery and Install Back Battery Cover Insert 4pc（AA）1.5V Alkaline batteries and slide the battery cover back onto the receiver...
- Page 14 Remarks: （1）Alkaline batteries are recommend in order to stabilize the power supply,if you don't use alkaline, battery performance will be reduced greatly. （2）All settings will be retain in the memory even if the batteries are complete dead . A micro USB can directly power the lock and activate the keyboard.
-
Page 15: Smart Instruction
SMART INSTRUCTION Pairing Lock to Phone App 1.Download the App ”TTLock” Android Mobile Phone--Search “TTLock” from Google Play. Apple Mobile Phone--please search “TTLock” from App Store. 2.Register and Login the Account 3.Match the Lock to the Application When matching, follow the prompt steps of the program, you need to touch the screen after installing the lock and installing the battery, match the blue icon lock , and set the name for the lock. -
Page 16: Tt Lock App Operating
TT LOCK App Operating 1.Account Information Change When logging in "TTLock" App，you need set up an account contain account password. Each account can be added with multiple smart device locks for management. Once the smart lock is added, it will become the admin account for the lock. - Page 17 2.Lock/Unlock Press for unlock, long press for lock.It requires your smart phone and Bluetooth lock to be within a certain range. Note: If you want remote control,you need to connect to the Gateway. 3.Send ekey You can add another account on the app.
- Page 18 5.ekeys Manage the authorized accounts in “Send eKey”. Admin can clear eKey, reset eKey, send eKey etc. 6.Passcodes It records all passwords stored by the Bluetooth lock you had set. In addition, it can also reset, generate, upload passwords. 7.IC Cards You can match two types of IC card: Permanent or Timed.
- Page 19 8.Fingerprints You will be required to Place and Remove your finger to the sensor several times please follow the prompts. 9.Records It records the time and manner of the smart lock when someone opening or closing. Manage your Bluetooth lock safely and efficiently.
- Page 20 You can find the information about the lock such as battery power， admin passcode. Note:The admin passcode will not be cleared when erase passcode. If you forget to lock your door often, you could to set “Auto Lock”. Set the time for automatic locking in your needs, so you don't have to worry about security accidents due to being unlock.
-
Page 21: Match The Wi-Fi Gateway To The Application
MATCH the Wi-Fi GATEWAY to the APPLICATION Remote Control and Aleax would support after matching the Wi-Fi Gateway. Click the button in the upper left corner of the page and enter relevant information as prompted to add a gateway to your account. -
Page 22: Match The Ttlock App To The Alexa App
MATCH the TTLOCK APP to the ALEXA APP After setting up to the gateway, authorize the TTLock app in the Alexa app and log in to the TTLock account to enable remote unlock and voice remote unlock. Select “Skill & Games”, input “TTLock” in the search bar, click “ENABLE TO USE”. - Page 23 Press locks option,choose the lock you paired. Click the icon in the upper right corner and slide the icon button of “unlock by app” and “unlock by vocie”. < 20 >...
-
Page 24: Match The Smart Watch To The Smart Lock
MATCH the SMART WATCH to the SMART LOCK Support Smart Watch (Apple watch or Android watch) lock/unlock. It is supported that smart watch match to smart phone. If the watch is connected to the phone, but it cannot search the “TTLock”App. Try to log in to the home page at your phone app, to refresh, and then check in the watch. -
Page 25: Operation Instructions

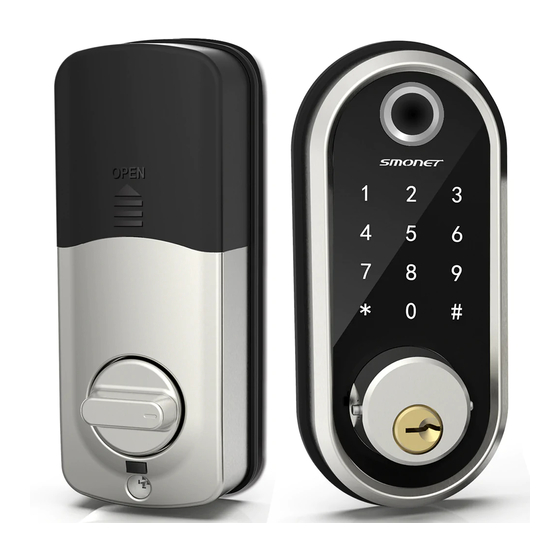

OPERATION INSTRUCTIONS keep the door opened while programming to avoid being locking out accidentally. Battery Cover Touch screen button Metal Keyhole Cover Thumb Turn Piece Dead lock /Reset button A micro USB Backup Power Interface Setting Admin Passcode Via App: TTLock - Settings - Basics - Admin Passcode Via keypad (when not added to the phone): Enter [*12#123456#Custom Admin pass-... -
Page 26: Lock/Unlock
Lock/Unlock Via Key: The package contains two keys that can be used directly through the keyhole. Via Keypad: Enter the passcode then press “#”to unlock. Long press “#” and hold 2s for lock. (No password required) Via APP: Touch to unlock, long press to lock. -
Page 27: Reset
Reset 1.Take out one of the battery to power off the lock about 5 seconds. Then put in the battery, power on the lock and long press the button about 10 seconds. Once hearing "Please enter the initialization password", please enter "000#" to confirm. You will receive a voice prompt after reset successfully. 2.Long press and hold the reset button in back panel for 10 seconds. - Page 28 FREQUENTLY ASKED QUESTIONS Please refer to the Instructions Guide if have any detail questions for these FAQs. If necessary, please contact our customer service. INSTALLATION FAQ Q1. Why does the latch is stuck? A1. The locking tongue is stuck with IC line. Please check and place the IC line inside mounting plate correctly by viewing manual or install video.
- Page 29 Q6. How to set the admin passcode? Via App: TTLock - Settings - Basics - Admin Passcode Via keypad (when not added to the phone): Enter [*12#123456#Custom Admin passcode#Confirm Admin passcode#] in keypad. Application FAQ Q1. How to do if I cannot match the door lock (the name is gray) in the TTLock? A1.
-
Page 30: Faq
Other FAQ Q1. Does it support Wi-Fi connection(Remotely unlock)? A1. Yes it supports to Wi-Fi connection. Please note that it needs to match the gateway (sold separately). Q2. How to get a compatible gateway? A2. G1 or G2 gateway could compatible with our door lock. Or, contact us for more recommendations.
