Summary of Contents for Briteq SPECTRA 3D LASER
-
Page 3: Before Use

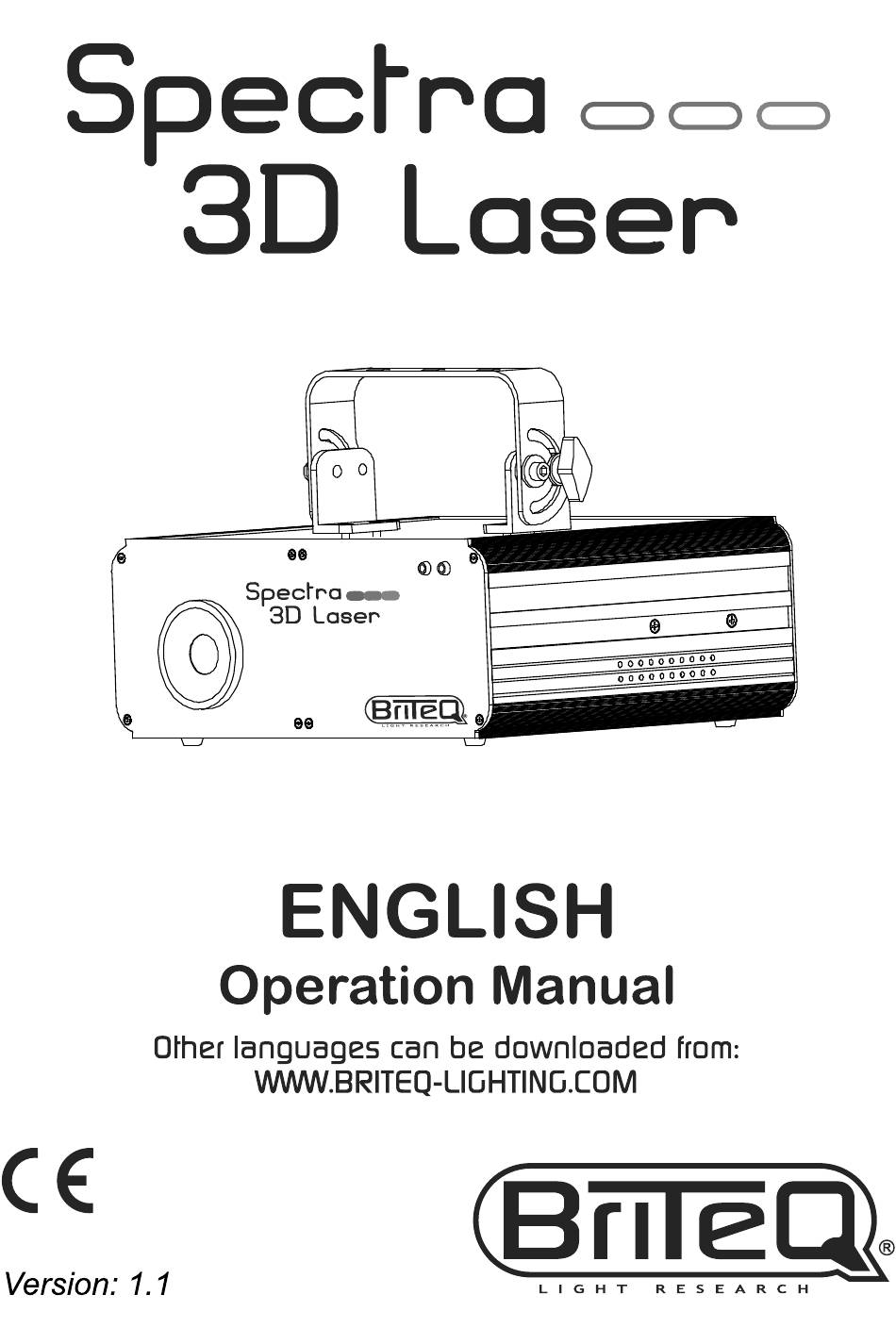

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this BRITEQ product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • This device was designed to produce decorative effect lighting and is used in light show systems. -
Page 4: Safety Instructions
Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/12 SPECTRA 3D LASER ®... -
Page 5: Laser Safety Instructions
• In some countries, the installation or the operation of lasers is subject to approval. Please contact your local authorities for country-specific safety regulations and guidelines for the operation of laser devices. Please note that BRITEQ cannot be made liable for damages caused by incorrect installations and unskilled operation! WARNING LABEL LOCATIONS A. -
Page 6: Description-Rear Panel
14. COOLING FAN: used to cool the components inside the enclosure. Make sure to never cover this fan outlet + never cover the small air inlets that are situated on the left and right side of the unit! Take care to clean the air inlets and fan when needed. BRITEQ 4/12 SPECTRA 3D LASER ®... -
Page 7: Description-Front Panel
CAUTION EYEDAMAGE: Always position the laser in a way that prevents the audience from looking directly into the laser beams. The installation should assure that the beam will not strike the audience. BRITEQ 5/12 SPECTRA 3D LASER ®... -
Page 8: General Settings
(standalone) or when the laser is placed as the first (master) unit in a chain with several LASERs. • Press the FUNC-button until the display shows one of the following: Soo, Son, SoL, Sob, S3d, Sou, Auo, Aun, AuL, Aub, or A3d. BRITEQ 6/12 SPECTRA 3D LASER ®... -
Page 9: Dmx512 Mode
(see #1Standalone)and all other units in “Slave mode” (display shows “SLA”) to make them all work in perfect sync! The “slave” lasers follow the instructions given by the first Spectra 3D laser (master) in the chain. Settings for the slave units: •... - Page 10 SOL Sound show with LASER LUMIA 199-216 SON Sound show with Burst Grating 217-234 SOO Sound show with Laser Universal 235-255 AUT Auto Show with Mixed 5 effect 000-234 Slow to Fast 235-255 ORIGINAL SPEED BRITEQ 8/12 SPECTRA 3D LASER ®...
- Page 11 0 -359 degree fixed X axis rolled CH 10 X AXIS 128-191 Clockwise rolling ROLLING 192-255 Anticlockwise rolling CH 11 0-255 Fast to Slow ROLL SPEED CH 12 000-127 0 -359 degree fixed Z axis rolled BRITEQ 9/12 SPECTRA 3D LASER ®...
- Page 12 128-159 Burst Grating Effect 160-191 Scanned Beam Effect (Pattern Effect) 192-223 Laser Universal Effect 224-255 Scanned Beam Effect (Pattern Effect) Pattern list 000-015 016-031 032-047 048-063 064-079 080-095 096-111 112-127 128-143 144-159 160-175 176-191 BRITEQ 10/12 SPECTRA 3D LASER ®...
-
Page 13: Ilda Control
• Clean with a soft cloth using normal glass cleaning products. • Always dry the parts carefully. • Clean the external optics at least once every 30 days. BRITEQ 11/12 SPECTRA 3D LASER ®... -
Page 14: Specifications
Laser Safety Standard: EN60825-1: 2014 Size: see picture below Weight: 4.5kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com BRITEQ 12/12 SPECTRA 3D LASER ®...
