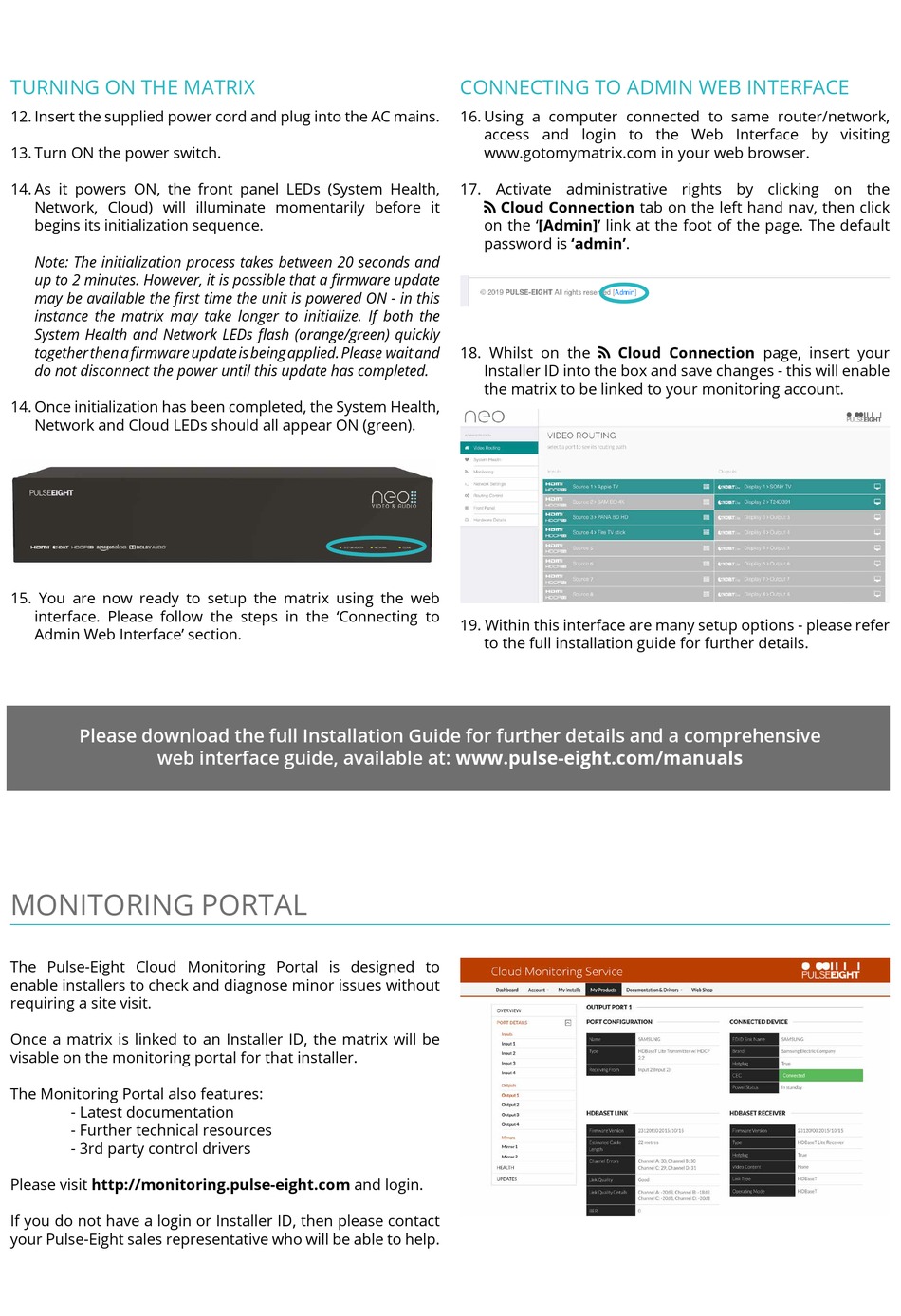

Pulse-Eight Neo Series Quick Setup Manual page 3

TURNING ON THE MATRIX
12. Insert the supplied power cord and plug into the AC mains.
13. Turn ON the power switch.
14. As it powers ON, the front panel LEDs (System Health,
Network, Cloud) will illuminate momentarily before it
begins its initialization sequence.
Note: The initialization process takes between 20 seconds and
up to 2 minutes. However, it is possible that a firmware update
may be available the first time the unit is powered ON - in this
instance the matrix may take longer to initialize. If both the
System Health and Network LEDs flash (orange/green) quickly
together then a firmware update is being applied. Please wait and
do not disconnect the power until this update has completed.
14. Once initialization has been completed, the System Health,
Network and Cloud LEDs should all appear ON (green).
15. You are now ready to setup the matrix using the web
interface. Please follow the steps in the 'Connecting to
Admin Web Interface' section.
Please download the full Installation Guide for further details and a comprehensive
web interface guide, available at: www.pulse-eight.com/manuals
MONITORING PORTAL
The Pulse-Eight Cloud Monitoring Portal is designed to
enable installers to check and diagnose minor issues without
requiring a site visit.
Once a matrix is linked to an Installer ID, the matrix will be
visable on the monitoring portal for that installer.
The Monitoring Portal also features:
- Latest documentation
- Further technical resources
- 3rd party control drivers
Please visit http://monitoring.pulse-eight.com and login.
If you do not have a login or Installer ID, then please contact
your Pulse-Eight sales representative who will be able to help.
CONNECTING TO ADMIN WEB INTERFACE
16. Using a computer connected to same router/network,
access and login to the Web Interface by visiting
www.gotomymatrix.com in your web browser.
17. Activate administrative rights by clicking on the
 Cloud Connection tab on the left hand nav, then click
on the '[Admin]' link at the foot of the page. The default
password is 'admin'.
18. Whilst on the  Cloud Connection page, insert your
Installer ID into the box and save changes - this will enable
the matrix to be linked to your monitoring account.
19. Within this interface are many setup options - please refer
to the full installation guide for further details.
