Page 1: Quick Setup Guide
Package Contents: • LinkStation Quad • Ethernet Cable • Power Adaptor & Cord • LinkNavigator Installation CD • Quick Setup Guide (this manual) • Warranty Card Quick Setup Guide LinkStation Quad www.buffalotech.com LS-QL/R5 v1.7... -
Page 2: Front Panel Layout

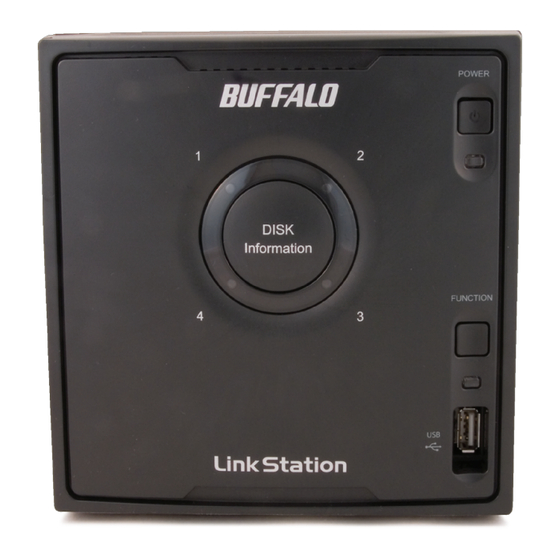

Note: The LinkStation’s front panel is removable by pulling it straight forward. Do not lift the unit by its front panel. It may come off suddenly, allowing the unit to fall. Front Panel Layout Power Switch Power LED Disk LEDs (Green-Access Red-Error) Function Button... -
Page 3: Rear Panel Layout
Rear Panel Layout Power Mode - Auto Manual Ethernet LED Ethernet Port Power Adaptor Cable Guide... - Page 4 Installing Your LinkStation Insert the LinkNavigator CD into your computer’s CD-ROM drive. Setup will launch automatically. Click on your chosen language. If you are installing the software on a Mac, open the CD and LinkNavigator click begin installation. Next Click to step through the installation.
- Page 5 The wizard will step you through installation. Follow the directions on each screen and continue pressing Next to step through the installation. Congratulations! Your LinkStation is ready to use. Turn to page 6 for more on using your LinkStation with a PC, or page 7 for more on using your LinkStation with a Mac LinkStation User Manual Please see the...
- Page 6 Using your LinkStation with a Windows PC If you’re using a Windows PC, three new icons will be on your desktop: Navigator, LS-QLxxx Setup and LS-QLxxx, where xxx is the last three characters of the unit’s MAC address. The LS-QLxxx Setup results.txt file contains the IP address and network information for the LinkStation.
-
Page 7: Using Your Linkstation With A Mac
Using your LinkStation with a Mac file contains the IP address of your LinkStation. In the NASNavigator Finder, NASNavigator Clicking opens the LinkStation’s client utility. This lets you easily view system information for your LinkStation and change its settings. Consult your user manual for more information on the Buffalo NAS Navigator. - Page 8 Using your LinkStation with a Mac In the Server Address field, enter your LinkStation’s IP address smb://ipaddress in the form (where “ipaddress” is your LinkStation’s IP address), and click Connect. You can get your LinkStation’s IP address from the QLSettings.txt file on your desktop.
-
Page 9: Technical Specifications
Dimensions: Weight: Operating Environment: Technical Support Buffalo Technology offers free technical support. See the back page of this guide for contact information. Please also visit our web site at www.buffalotech.com. FCC Warning This device complies with part 15 of the FCC Rules. Operation is... - Page 10 Memo...
- Page 11 Memo...
- Page 12 USA/Canada Technical Support is available 24 hours a day, 7 days a week Toll-Free: 866-752-6210 email: info@buffalotech.com 35010599 ver.01 1-01 C20-005 ©2005-2008, Buffalo Technology (USA), Inc.
