LG OLED65W7P Service Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. OLED TV
  5. OLED65W7P
  6. Service manual

LG OLED65W7P Service Manual

Hide thumbs Also See for OLED65W7P:

Advertisement

Quick Links

OLED TV
SERVICE MANUAL

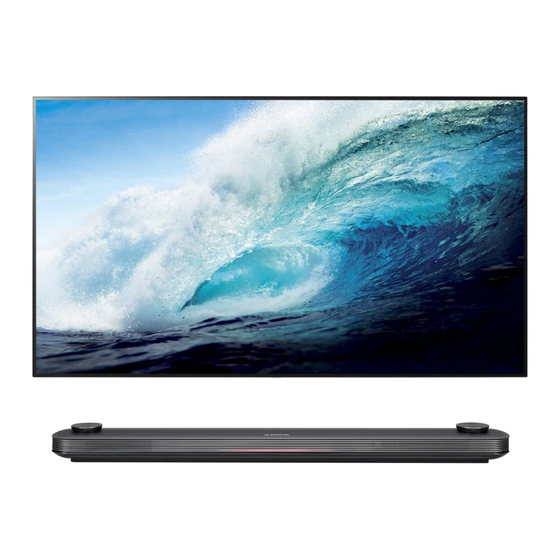

CHASSIS : EA71G
MODEL : OLED65W7P
CAUTION
BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
P/NO : MFL69862001 (1704-REV01)
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means),
publication, modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you
have obtained the prior written consent of the LG Electronics entity from which you received this Service Manual.
The material covered by this prohibition includes, without limitation, any text, graphics or logos in this Service
Manual.
Copyright © 2017 LG Electronics Inc. All rights reserved. Only training and service purposes.
CONFIDENTIAL
OLED65W7P-U
