Sealey PFT15 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.

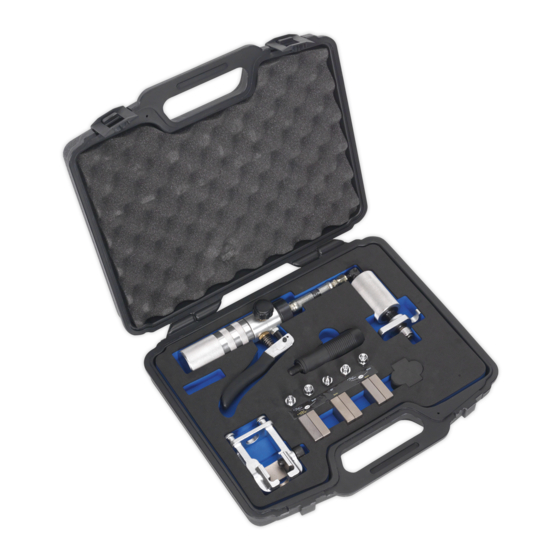

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Instruction
Wear Eye
Manual
Protection
1. SAFETY
 WARNING! Ensure Health & Safety, local authority and general workshop practice requirements are adhered to when using this equipment.
 Familiarise yourself with the application and limitations, as well as the potential hazards of the kit.
 Maintain the kit in good condition.
 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 Locate the flaring tools in a suitable work area, keep the area clean and tidy and ensure there is adequate lighting.
 WARNING! Always wear approved eye or face protection when using the flaring tools.
 Keep children and unauthorised persons away from the working area.
 DO NOT use the kit for any purpose other than for which it is designed.
 DO NOT use the kit if any parts are damaged or missing as this may cause failure and/or personal injury.
 DO NOT allow untrained persons to use the kit.
 DO NOT attempt to flare piping when you are tired, under the influence of alcohol, drugs or intoxicating medication.
 When not in use clean kit components, replace in case and store in a safe, dry, childproof area.
 Remember! The safe operation of a vehicle, or other equipment, may well depend on the quality of the flare produced. Discard any flare which
is mis-formed or cracked in any way.
 WARNING! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations
that may occur.
It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied by
the operator.
2. INTRODUCTION
Produces accurate automotive SAE and DIN flares on 3/16", 4.75mm, 5mm and 6mm brake pipes. Ideal for splicing in replacement sections of
brake pipe on-vehicle. Powerful, lever operated hydraulic ram makes it suitable for steel pipes. Features quick release chuck, twist lock die block
housing for fast assembly and rotating hydraulic pipework to give easy access in confined spaces.
3. SPECIFICATION
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PFT15
Dies;. . . . . . . . . . . . . . . . . . . . . . . . . . SAE: 3/16", 5mm, 6mm. DIN: 4.75mm, 5mm,6mm
4. CONTENTS
© Jack Sealey Limited
INSTRUCTIONS FOR:
ON-VEHICLE HYDRAULIC BRAKE PIPE
FLARING TOOL
PFT15
MODEL NO:
Original Language Version PFT15 Issue: 1 - 03/11/16
