See Water OSSIM-TP-100 Series Installation And Operation Manual

SEE WATER, INC.
Oil Smart® Simplex System

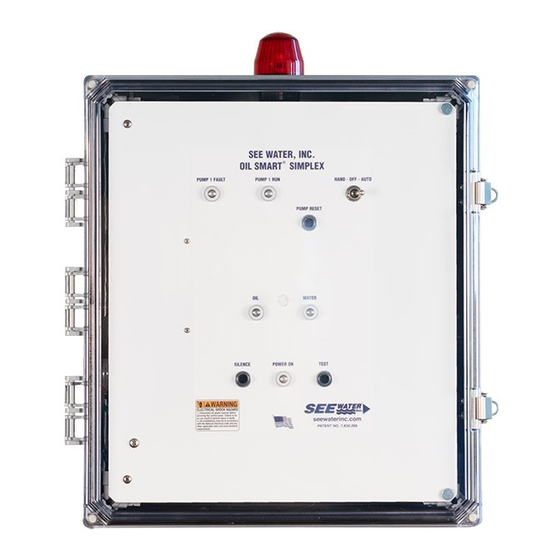

The Oil Smart® OSSIM-TP-1 system incorporates pump controls and alarm
sensors that differentiate between oil and water, allowing companies to
responsibly discharge the water without the risk of pumping oil. Installation
of the OSSIM-TP-1 keeps companies in compliance with Elevator Code
ASME A17.1 and State/Federal regulations while reducing the risk of adverse
publicity, fines, and expensive cleanup cost.
Model
OSSIM-TP-1001
OSSIM-TP-1002
OSSIM-TP-1003
OSSIM-TP-1004
OSSIM-TP-1005
Enclosure Mounting: NEMA 4X RATED
Mounting Brackets - A mounting bracket and screw pack are provided
with the premium enclosures. To assemble, turn the enclosure upside down
on a flat surface, place the mounting bracket over the square boss either
horizontally or vertically, and fasten the mounting bracket with the 1/4"-20
x 0.5 SS, countersunk phillips drive screws or vertically, with the mounting
brackets in any config., using any acceptable fastening technique.
Covers/Doors - Covers/doors have a gasket pre-assembled to seal
against the base.
Note: The control panel should not be mounted in a location that may be
subject to submersion.
FLA Range
(0.0-7.0 FLA)
(7.0-15.0 FLA)
(15.0-22.0 FLA)
(22.0-28.0 FLA)
(28.0-36.0 FLA)
Page 1-3
Single Phase Simplex Control Panel
Installation and Operation Manual
OSSIM-TP-100X
Panel Installation:
1. Caution: To maintain the NEMA 4X rating, make all
wiring connections with seal tight cable grips or conduit
connections.
2. Run pump cable and Oil Smart® cables through
conduit. Make field connections as shown on wiring
schematic.
3. Run power line conductor through conduit. Wire to
terminals per enclosed schematic.
4. Branch circuit protection to be provided by installer.
5. Panel circuit breakers are closed.
6. Mount Oil Smart® pump switch and Liquid Smart®
alarm sensor with provided mounting hardware to
pump discharge pipe. The 'OFF' sensor of the Oil
Smart® pump switch shall be positioned at least 3"
above the impeller of the pump.
7. Mounting of the Liquid Smart® alarm sensor is
application driven and is to be placed where a high
liquid is deemed necessary. The Liquid Smart® sensor
is typically mounted 3" - 6" above the Oil Smart®
pump switch.
8. Connect service conductors 120/208/240VAC to proper
location.
Remote Monitoring Dry Contacts:
• Normally Open dry contacts for high oil, high level,
pump run, and pump fault. Rated 0-60V AC/DC.
www.seewaterinc.com
951.487.8073 • 888.733.9283 • info@seewaterinc.com
22220 Opportunity Way, Suite 101 • Riverside, CA 92518
IM 752 REV. 02/20
