4.8.3.
When charging is complete disconnect the unit from the mains power supply before disconnecting from the battery.
4.9.
LcD DIspLaY moDes.
4.10.
LcD DIspLaYeD coDes.
coDe
AUT
AUTO MODE
PUL
PULSE MODE
ReC
ReCond mode
FUL
FULLY CHARGED
SUP
SUPPLY MODE
CHe
AnAlYSIS mode
© Jack Sealey limited

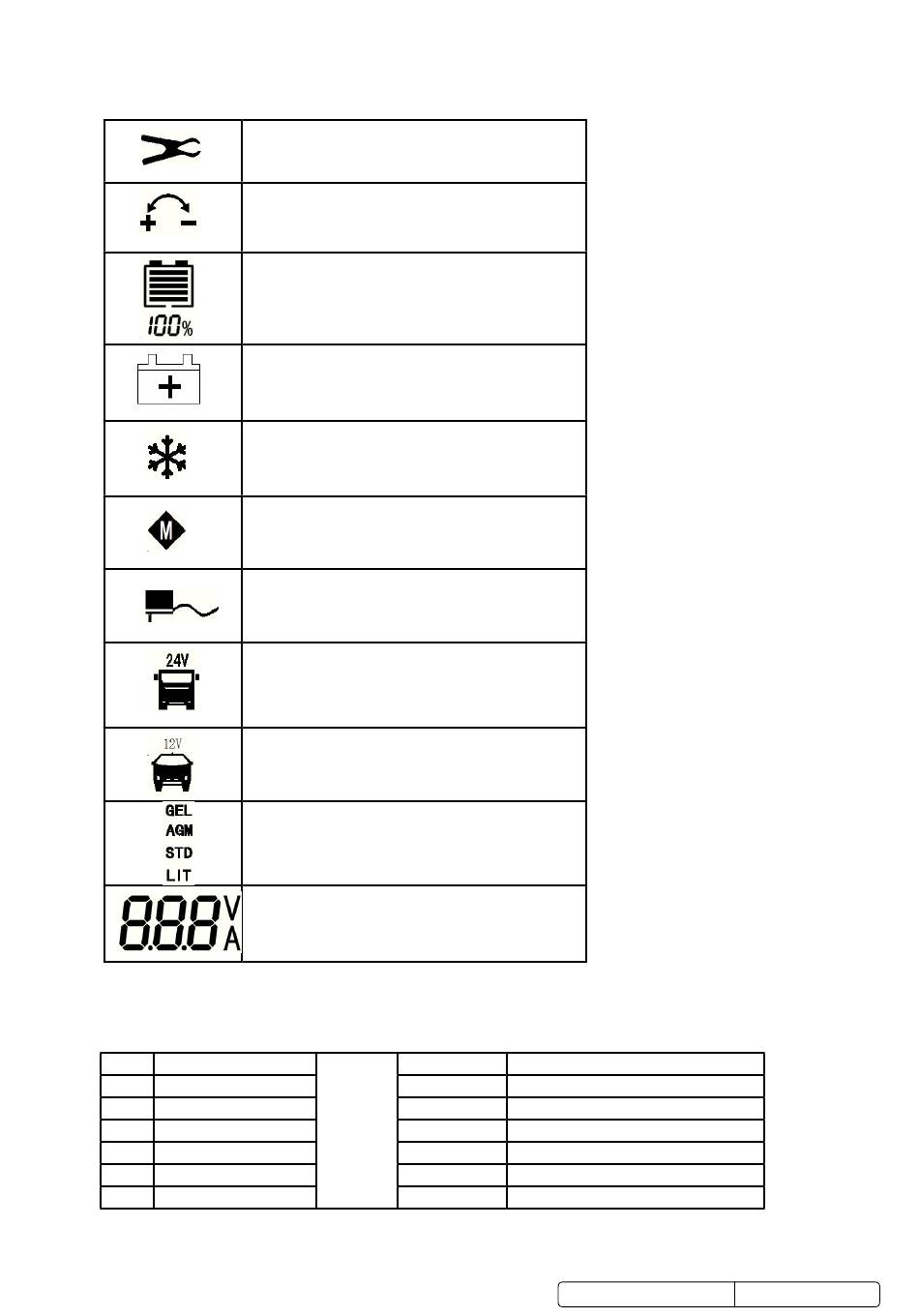

Flickering symbol.
no connection / poor connection to battery.
Inverse connection to battery.
Reconnect black to negative pole, red to positive pole.
Battery capacity percentage.
Reconditioning mode.
Winter mode.
maintain mode.
Supply mode
24V Charging mode.
12V Charging mode.
Battery type switch mode.
Function selection.
moDe
Original Language Version
FauLt coDes
F01
SHORT CIRCUIT PROTECTION
F02
oVER-VOLTAGE PROTECTION
F03
oVER-CURRENT PROTECTION
F04
oVER -TEMPERATURE PROTECTION
F05
oVER-TIME CHARGING
F06
REVERSE CONNECTION PROTECTION
reasoN
AUTOCHARGE1200HF
Issue 1 22/08/18
