Engineered To Perform
WASHING MACHINE
User's Manual
IMPORTANT NOTE:
Thank you for selecting a TECO quality Washing Machine. Read
this manual carefully before installing or operating your new unit.
Make sure to save this manual for future reference.
The design and specifications are subject to change without prior
notice for product improvement. Consult with the sales agency
or manufacturer for details.

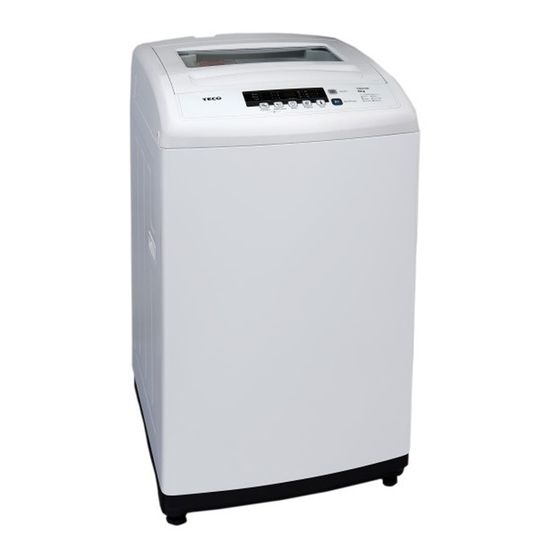

Model:
TWM80TBM
Advertisement
Table of Contents
Related Manuals for TECO TWM80TBM
Summary of Contents for TECO TWM80TBM
- Page 1 Model: TWM80TBM IMPORTANT NOTE: Thank you for selecting a TECO quality Washing Machine. Read this manual carefully before installing or operating your new unit. Make sure to save this manual for future reference. The design and specifications are subject to change without prior notice for product improvement.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation Area ............. Unpacking the Washing Machine ......Installing the Base Cover (Option) ......Installing the Drain Hose ........Levelling the Washing Machine ......Installing the Water Inlet Hose ........ OPERATIONS Preparation Before Washing ........ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！... - Page 4 SAFETY INSTRUCTIONS • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired. • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
- Page 5 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with appliance. • Animals and children may climb into the machine. Check the machine before every operation. • Young children should be supervised that they do not play with the appliance.
- Page 6 SAFETY INSTRUCTIONS • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 7 SAFETY INSTRUCTIONS Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
-
Page 8: Installation
INSTALLATION Product Description Detergent dispenser Water inlet valve Softener dispenser Top lid Control panel Frame Power cord & plug Cabinet Handle Drain pump filter Drain hose Adjustable foot knob Note! • Illustrations in this manual are for explanatory purposes, please refer to real product as standard. -
Page 9: Installation Area
INSTALLATION Installation Area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product is not sitting on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 10: Installing The Drain Hose
INSTALLATION Installing the Drain Hose 1. Completely slide the drain hose over the drainage spout. 2. Fix and tighten it with a hoop. (As shown in the figure). Caution! The drain hose may already installed on the machine. • • Do not kink or protract the drain hose. -
Page 11: Installing The Water Inlet Hose
INSTALLATION Installing the Water Inlet Hose 1. Fasten one end of the inlet hose to the tap. Ensure there is a rubber washer inside the hose before fastening. The washer prevents water leakage. 2. Securely tighten the other end of the inlet hose to the clothes washer inlet valve. -
Page 12: Operations
OPERATIONS Preparation Before Washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Load clothes Add detergent... -
Page 13: Loading
OPERATIONS Loading • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Control Panel
OPERATIONS Control Panel Remain Time(mins) (Power) Function Water Level Note! The chart is for reference only. Please refer to real product as standard. • On/Off Start/Pause Product is switched on or off. Press the button to start or pause the washing cycle. -
Page 15: Options
OPERATIONS Options Water Level Select water level according to clothing categories, degree of soiling and washing habits from lowest 1(light), 2(flash), 3(light),.. to 6(flash) max. Function Select single or combination of washing, rinsing and spinning desired. Temp. Press the button to regulate the Hot, Warm or Cold water for wash. Delay Set the Delay function: 1. -
Page 16: Personalized Setting Of Washing Program
OPERATIONS Personalized Setting of Washing Program Customers can select washing program according to your personal setting, and set washing function, rinsing function, spinning function, water volume and start time. Program Temp. Function Start Water Level Delay (Power) Operations of Washing Process Customers can set a single process or a combination for washing, rinsing and spinning easily according to demand. -
Page 17: Washing Programmes Table
OPERATIONS Washing Programmes Table Programmes Standard Standard fabric washing program, suitable to wash cotton fabric. (Normal) Wash time is short. Suitable to wash light stained clothes and Quick clothes in summer. (Recommended wash load: Max 6kg) Recommended for small and light fabrics. Spin This program does not use heat to spin dry items. -
Page 18: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 19: Cleaning Drain Pump Filter
MAINTENANCES Cleaning Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 20: Trouble Shooting
MAINTENANCES Trouble Shooting Should your appliance fail to work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 21: Technical Specifications
MAINTENANCES Technical Information Technical Specifications Model TWM80TBM Rated Motor Input 560W Power Classifi cation of use Indoor use only Rated Total Gross Volume (L) Voltage (V) Frequency (Hz) Washing Type Pulsator Water Pressure 0.03MPa - 0.8MPa Max. Spin Speed 680 RPM... -
Page 22: Repairs, Service & Warranty
IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST) For warranty details please visit www.teco.com.au Service Email: had.service@teco.com.au... - Page 23 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Auto Sensing Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges Televisions Air Curtains Air Conditioners Visit www.teco.com.au for our full range.
- Page 24 KBH-V4 www.teco.com.au...
