Summary of Contents for IMO Q3 Plus

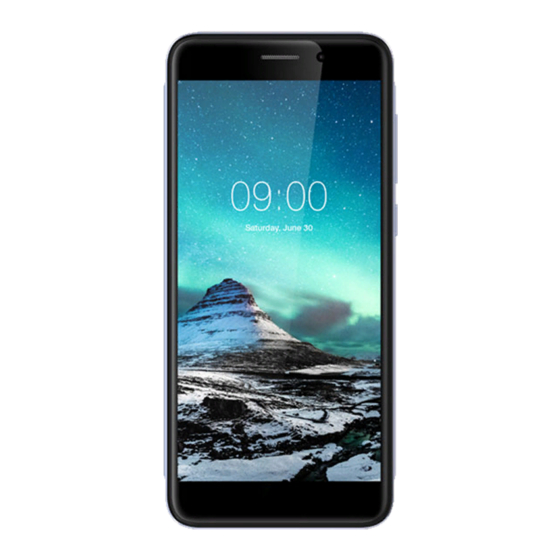

- Page 1 Smartphone Quick Start Guide Please Read Before Proceeding...
-
Page 2: Product Safety Information
Product Safety Information... -
Page 3: What's In The Box
What's in the Box The phone packaging box should contain the following items and accessories: Phone, Battery, Power Adapter, Quick Start Guide and USB cable. Notices for the Use of Your Phone Your phone should be treated with care. The following suggestions can help you extend the life of your mobile phone. - Page 4 interference with the pacemaker. To achieve this use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket. 12) Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with the operation of your medical device.
-
Page 5: Getting To Know Your Phone
Getting to Know Your Phone Charging USB Port Headset Jack Earpiece Camera Volume Keys Power Key Touch Screen Back key Menu key Home key Camera Camera Flash Speaker... -
Page 6: Before Getting Started
Power Key Press and hold to turn on or off Aeroplane mode, enable Silent mode or Silent mode with Vibration, disable Silent mode, Power off or Restart the phone. Press to wake up or turn off the display. Home Key ... - Page 7 Installing the Battery Installing a microSD Card (Not Included) NOTE: Some applications may require a microSD card to work normally or may store certain data on it. Therefore, it is recommended that you keep a microSD card installed and not remove or replace it randomly.
-
Page 8: Basic Settings
Basic Settings Your service provider may default some device settings, so you may not be able to change these settings. Network & Internet Wi-Fi Swipe Wi-Fi to right to switch on WiFi. Once it’s on, it will search for available WiFi networks automatically. - Page 9 Languages & input 1) You can set up all the languages supported by the phone. 2) Keyboard Settings: You can set virtual keyboard and physical keyboard. Backup 1) Back up Apps and apps data, Call history, Contacts, Device settings, SMS to Google Drive. ...
-
Page 10: Technical Specifications
Technical Specifications • Network: GSM850/900/1800/1900 WCDMA900/2100 LTE B1/B3/B7/B20 • Display: 5” • Memory: 8GB ROM+1GB RAM • Camera: 5MP+5MP • FM/MP3/MP4/GPS/WiFi/Bluetooth/G-Sensor • Battery Capacity: 2000mAh Li-ion (*):The storage capacity actually available in the unit's internal memory may be less due to the preloaded operating system and / or other pre- installed or configured applications. -
Page 11: Sar Information Statement
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including... -
Page 12: Ce Declaration Of Conformity
CE Declaration of conformity Herby, Verve Connect Ltd. declares that this smartphone, IMO Q3 Plus is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Use the smartphone in the environment with the... - Page 13 Use the earphone carefully. Excessive sound pressure from earphones and headphones can cause hearing loss. The product shall only be connected to a USB interface of version USB2.0 SAR: The device complies with RF specifications when the device is used at 5mm from your body. The highest SAR value for this mobile phone tested* is 0.574 W/Kg against the head and 0.369 W/kg at 5 mm from the body.
- Page 14 WIFI-For CE Operation 2412MHz~2472MHz for frequency (802.11b/802.11g/802.11n(HT20)) WIFI Max 16.44dBm(conducted) power(2.4G) WIFI-For FCC Operation 2412MHz~2462MHz for frequency (802.11b/802.11g/802.11n(HT20)) WIFI Max 14.56dBm(conducted) power(2.4G) BT/BLE-For CE Operation 2402MHz~2480MHz Frequency BT Max power 8.86dBm(conducted) BLE Max power 0.90dBm(conducted) BT/BLE-For FCC Operation 2402MHz~2480MHz Frequency BT Max power 5.71dBm(conducted) BLE Max power...
- Page 15 Operation E-GSM 900/GPRS 900/EGPRS 900: Frequency TX: 880-915MHz; RX: 925-960 MHz E-GSM 1800/GPRS 1800 TX: 1710-1785 MHz; RX: 1805-1880 E-GSM 850/GPRS 850 TX: 824-849 MHz; RX: 869-894 MHz E-GSM 1900/GPRS 1900 TX: 1850-1910 MHz; RX: 1930-1990 33.1dBm(conducted) power(E-GSM 900) 30.1 dBm(conducted) power(DCS 1800) 32.7dBm(conducted)
- Page 16 WCDMA-For CE Operation Band 1: TX:1920MHz~1980MHz; Frequency RX: 2110-2170MHz Band 8: TX: 880MHz~915MHz; RX: 925-960MHz 22.31 dBm(conducted) power(Band 1) 22.45 dBm(conducted) power(Band 8) LTE-For CE Operation Band 1: (UL)1920MHz~1980MHz, Frequency: (DL) 2110MHz~2170MHz Band 3: (UL)1710MHz~1785MHz, (DL)1805MHz~1880MHz Band 7: (UL)2500MHz~2570MHz, (DL)2620MHz~2690MHz Band 20: (UL)832MHz~862MHz, (DL) 791MHz~821MHz 22.92dBm(conducted)
- Page 17 23.02dBm(conducted) power(Band 3) 23.13dBm(conducted) power(Band 7) 23.08 dBm(conducted) power(Band Operation 87.5MHz-108MHz Frequency: GPS/GLONASS Operation 1.57542GHz Frequency: Manufacturer: Verve Connect Ltd. Address:59 Church Street, Staines, TW18 4XS, United Kingdom Tel: 07960212989 Fax: N/A E-mail: sheila.wang@verveconnect.co.uk For the detailed User Manual or more...
- Page 18 information about the product, please visit: www.imomobile.co.uk Google, Android and other marks are trademarks of Google LLC.
- Page 19 Verve Connect Ltd. Charger manufactured by: 59 Church Street, Staines, SiChuan Honglong Electronic Co.Ltd., TW18 4XS, United NO.36, Jingang Road, luohan street, Kingdom Longmatan Area, Luzhou City, www.imomobile.co.uk Sichuan Province...
