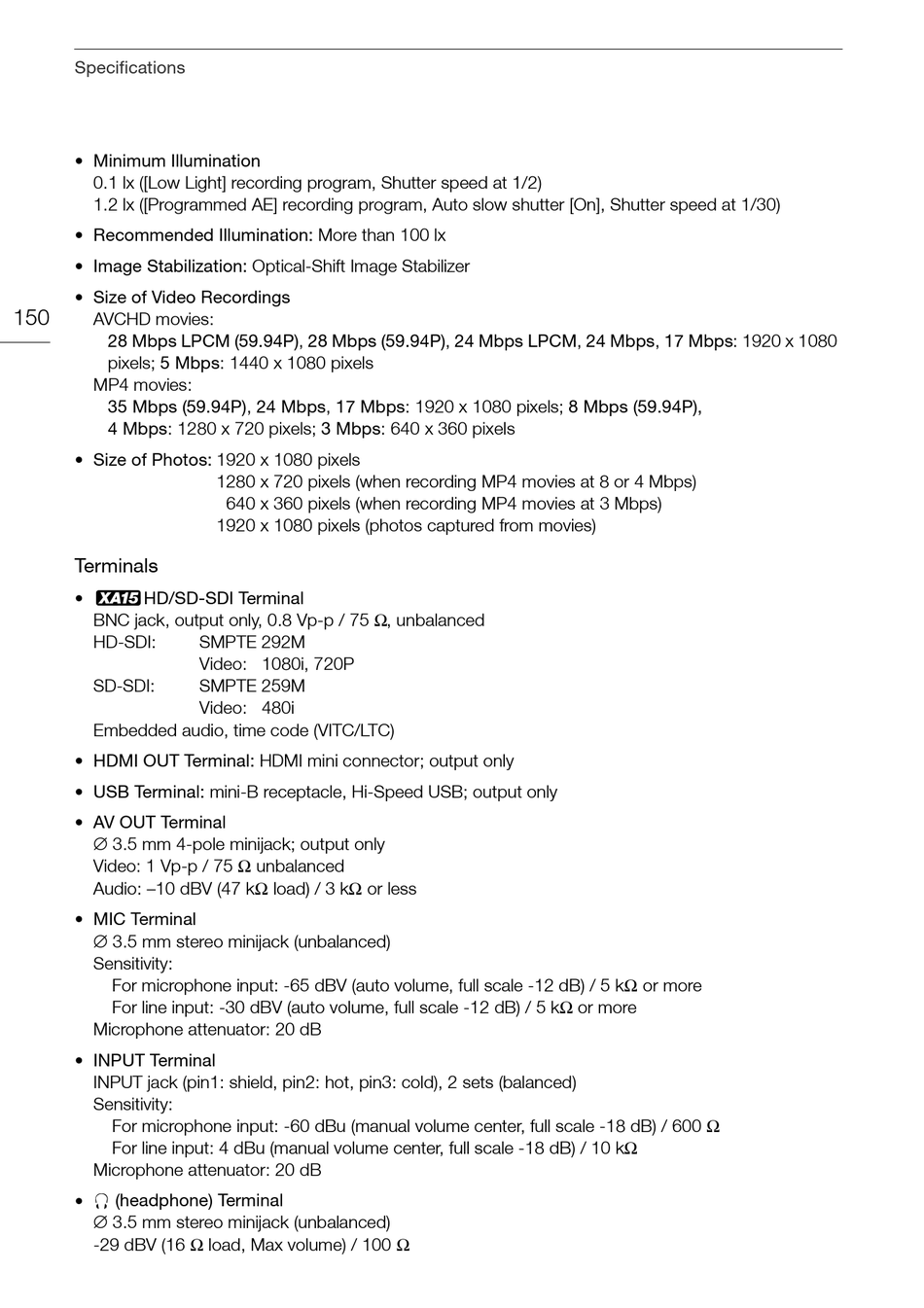

Specifications
• Minimum Illumination
0.1 lx ([Low Light] recording program, Shutter speed at 1/2)
1.2 lx ([Programmed AE] recording program, Auto slow shutter [On], Shutter speed at 1/30)
• Recommended Illumination: More than 100 lx
• Image Stabilization: Optical-Shift Image Stabilizer
• Size of Video Recordings
150
AVCHD movies:
28 Mbps LPCM (59.94P), 28 Mbps (59.94P), 24 Mbps LPCM, 24 Mbps, 17 Mbps: 1920 x 1080
pixels; 5 Mbps: 1440 x 1080 pixels
MP4 movies:
35 Mbps (59.94P), 24 Mbps, 17 Mbps: 1920 x 1080 pixels; 8 Mbps (59.94P),
4 Mbps: 1280 x 720 pixels; 3 Mbps: 640 x 360 pixels
• Size of Photos: 1920 x 1080 pixels
Terminals
• oHD/SD-SDI Terminal
BNC jack, output only, 0.8 Vp-p / 75 Ω, unbalanced
HD-SDI:
SD-SDI:
Embedded audio, time code (VITC/LTC)
• HDMI OUT Terminal: HDMI mini connector; output only
• USB Terminal: mini-B receptacle, Hi-Speed USB; output only
• AV OUT Terminal
∅ 3.5 mm 4-pole minijack; output only
Video: 1 Vp-p / 75 Ω unbalanced
Audio: –10 dBV (47 kΩ load) / 3 kΩ or less
• MIC Terminal
∅ 3.5 mm stereo minijack (unbalanced)
Sensitivity:
For microphone input: -65 dBV (auto volume, full scale -12 dB) / 5 kΩ or more
For line input: -30 dBV (auto volume, full scale -12 dB) / 5 kΩ or more
Microphone attenuator: 20 dB
• INPUT Terminal
INPUT jack (pin1: shield, pin2: hot, pin3: cold), 2 sets (balanced)
Sensitivity:
For microphone input: -60 dBu (manual volume center, full scale -18 dB) / 600 Ω
For line input: 4 dBu (manual volume center, full scale -18 dB) / 10 kΩ
Microphone attenuator: 20 dB
•
×
(headphone) Terminal
∅ 3.5 mm stereo minijack (unbalanced)
-29 dBV (16 Ω load, Max volume) / 100 Ω
1280 x 720 pixels (when recording MP4 movies at 8 or 4 Mbps)
640 x 360 pixels (when recording MP4 movies at 3 Mbps)
1920 x 1080 pixels (photos captured from movies)
SMPTE 292M
Video: 1080i, 720P
SMPTE 259M
Video: 480i
