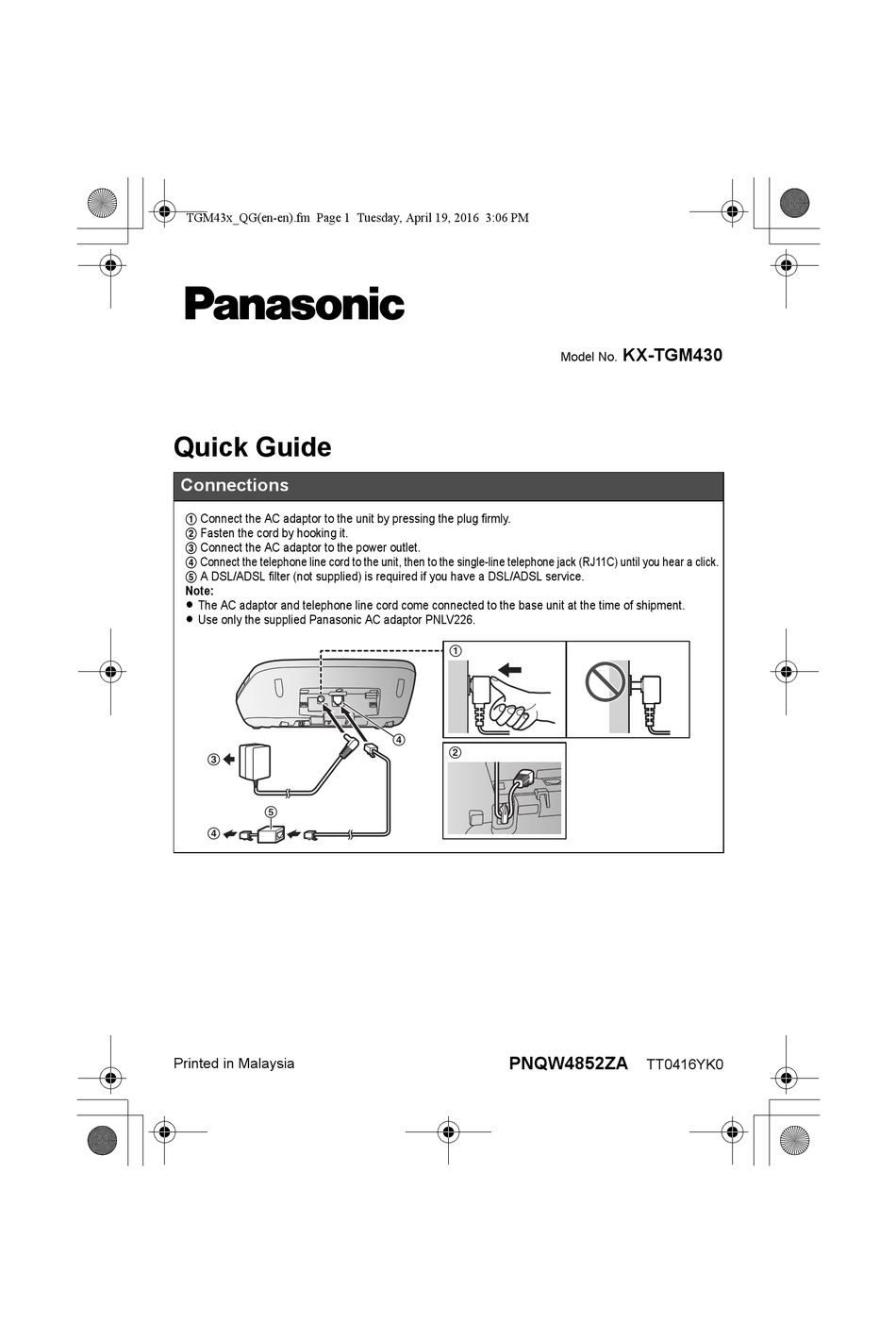

TGM43x_QG(en-en).fm Page 1 Tuesday, April 19, 2016 3:06 PM
Quick Guide
Connections
1 Connect the AC adaptor to the unit by pressing the plug firmly.
2 Fasten the cord by hooking it.
3 Connect the AC adaptor to the power outlet.
4 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click.
5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note:
L The AC adaptor and telephone line cord come connected to the base unit at the time of shipment.
L Use only the supplied Panasonic AC adaptor PNLV226.
3
5
4
Printed in Malaysia
Model No.
1
4
2
PNQW4852ZA
KX-TGM430
TT0416YK0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TGM430

Summary of Contents for Panasonic KX-TGM430

  • Page 1 5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: L The AC adaptor and telephone line cord come connected to the base unit at the time of shipment. L Use only the supplied Panasonic AC adaptor PNLV226. PNQW4852ZA Printed in Malaysia...

  • Page 2: Battery Charging

    TGM43x_QG(en-en).fm Page 2 Tuesday, April 19, 2016 3:06 PM Battery charging Handset 2 rechargeable Ni-MH batteries are installed in the handset at the time of shipment. Before initial use: Remove the yellow insulation sheet before using the handset. Charge for about 7 hours. Note for handset: L USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
  • Page 3 TGM43x_QG(en-en).fm Page 3 Tuesday, April 19, 2016 3:06 PM Date and time (Handset) {MENU}(1)1 Enter the current month, date, and year. s {OK} Enter the current hour and minute (12-hour clock format). *: Select “AM” or “PM”. s {SAVE} s {OFF} Recording your greeting message of the answering system for the landline (Handset) You can record your own greeting message instead of using a pre-recorded greeting message.

  • Page 4: Link To Cell

    L The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Panasonic Corporation is under license. L All other trademarks identified herein are the property of their respective owners.
  • Page 5 TGM43x_QG(en-en).fm Page 5 Tuesday, April 19, 2016 3:06 PM Link to cell Pairing a Bluetooth cellular phone Base unit: Press and hold {CELL 1} or {CELL 2} for about 5 seconds. L After the corresponding CELL indicator on the base unit starts flashing, the rest of the procedure must be completed within 5 minutes.
  • Page 6 TGM43x_QG(en-en).fm Page 6 Tuesday, April 19, 2016 3:06 PM Link to cell Connecting/disconnecting the cellular phone (Handset) Auto connection to the Bluetooth devices (cellular phones) The unit connects to the Bluetooth devices at regular intervals if the connection is lost. To change the interval (default: “1 min”), see the operating instructions.

  • Page 7: Basic Operations

    TGM43x_QG(en-en).fm Page 7 Tuesday, April 19, 2016 3:06 PM Basic operations Making/Answering calls (Handset) Making cellular calls Dial the phone number. s {CELL} L When the cellular line only mode is set, you can also press {TALK}/{s} instead of {CELL}. L When only 1 cellular phone is paired, the unit starts dialing.
  • Page 8 TGM43x_QG(en-en).fm Page 8 Tuesday, April 19, 2016 3:06 PM Basic operations Phonebook (Handset) Adding entries {<} k s {MENU} {r}: “Add new entry” s {SELECT} Enter the party’s name (16 characters max.). s {OK} Enter the party’s phone number (24 digits max.). s {OK} {r}: Select the desired group.

  • Page 9: Using Bluetooth Devices

    TGM43x_QG(en-en).fm Page 9 Tuesday, April 19, 2016 3:06 PM Basic operations Answering system for the landline (Handset) Listening to messages To listen to new messages: {PLAY} or {MENU}(323 To listen to all messages: {MENU}(324 Using Bluetooth devices Copying phonebook entries from a Bluetooth cellular phone (phonebook transfer) You can copy phonebook entries from the paired cellular phones or other cellular phones (not paired) to the unit’s phonebook.
  • Page 10 TGM43x_QG(en-en).fm Page 10 Tuesday, April 19, 2016 3:06 PM Using Bluetooth devices Using a Bluetooth headset (optional) By pairing a Bluetooth headset to the base unit, you can enjoy hands-free conversations when talking on landline calls. L Only 2 Bluetooth devices can be used with the unit at the same time (for example, 2 cellular lines, or the headset and 1 cellular line *1 You cannot use a Bluetooth headset to talk on a cellular line.

  • Page 11: Frequently Asked Questions

    L If the same problem occurs even if the handset is next to the base unit, please visit: http://shop.panasonic.com/support Can I add another L Yes, you can add up to 6 handsets (including the handset(s) sold accessory handset to my with your base unit) to a single base unit.
  • Page 12 TGM43x_QG(en-en).fm Page 12 Tuesday, April 19, 2016 3:06 PM Notes – 12 –...
