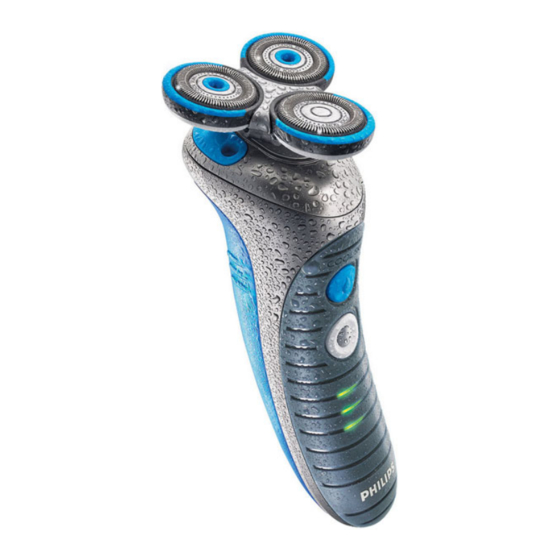

Philips Coolskin HS8060 Service Manual
Hide thumbs
Also See for Coolskin HS8060:
- Specification sheet (2 pages) ,
- Manual (164 pages) ,
- Service manual (2 pages)
Advertisement
Quick Links
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
General:
- Rechargeable
- World wide automatic voltage selection
- Washable
- Charge indication
- Battery low indcation
- Battery full indication
- Travel lock
Safety information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Voltage
: 100 - 240 Volt / 50 - 60 Hz
- Shaving heads
: HS85
- Charging time
: 1.5 hours
- Shaving time
: 40 minutes
- SAP coding
: HS8060
Published by Philips Consumer Lifestyle
08/09
DISASSEMBLY- AND RE-ASSEMBLY ADVICE
- Remove shaving unit, to prevent damaging during
repairing.
- Remove the 2 screws on top of the schaver.
- Remove the additive tubes and the IM cap.
REPAIR INSTRUCTION
Cleaning shaving heads
- Turn head clockwise and take off.
- Take cutter out and clean it with the brush.
- Place cutter back.
- Place head back and fix it by turning the head
anticlockwise.
OPTIONAL (accessories)
- Pouch : 4222 036 14360
Printed in the Netherlands
2
1
© Copyright reserved
Shaver
HS8060
CoolSkin
Subject to modification
Advertisement
Related Manuals for Philips Coolskin HS8060
Summary of Contents for Philips Coolskin HS8060
- Page 1 - Charging time : 1.5 hours anticlockwise. - Shaving time : 40 minutes - SAP coding : HS8060 OPTIONAL (accessories) - Pouch : 4222 036 14360 Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 08/09...
- Page 2 EXPLODED VIEW & PARTS LIST HS8060 Service code Description Service code Description 4222 036 14220 Shaving unit 4222 036 14340 Refi ll & charge stand (Backdoor) 4822 502 14545 Screw 4222 036 14350 Refi ll & charge stand (Transposer) 4222 036 14210 Protecting cap 4222 036 14300 Trimmer assy...
