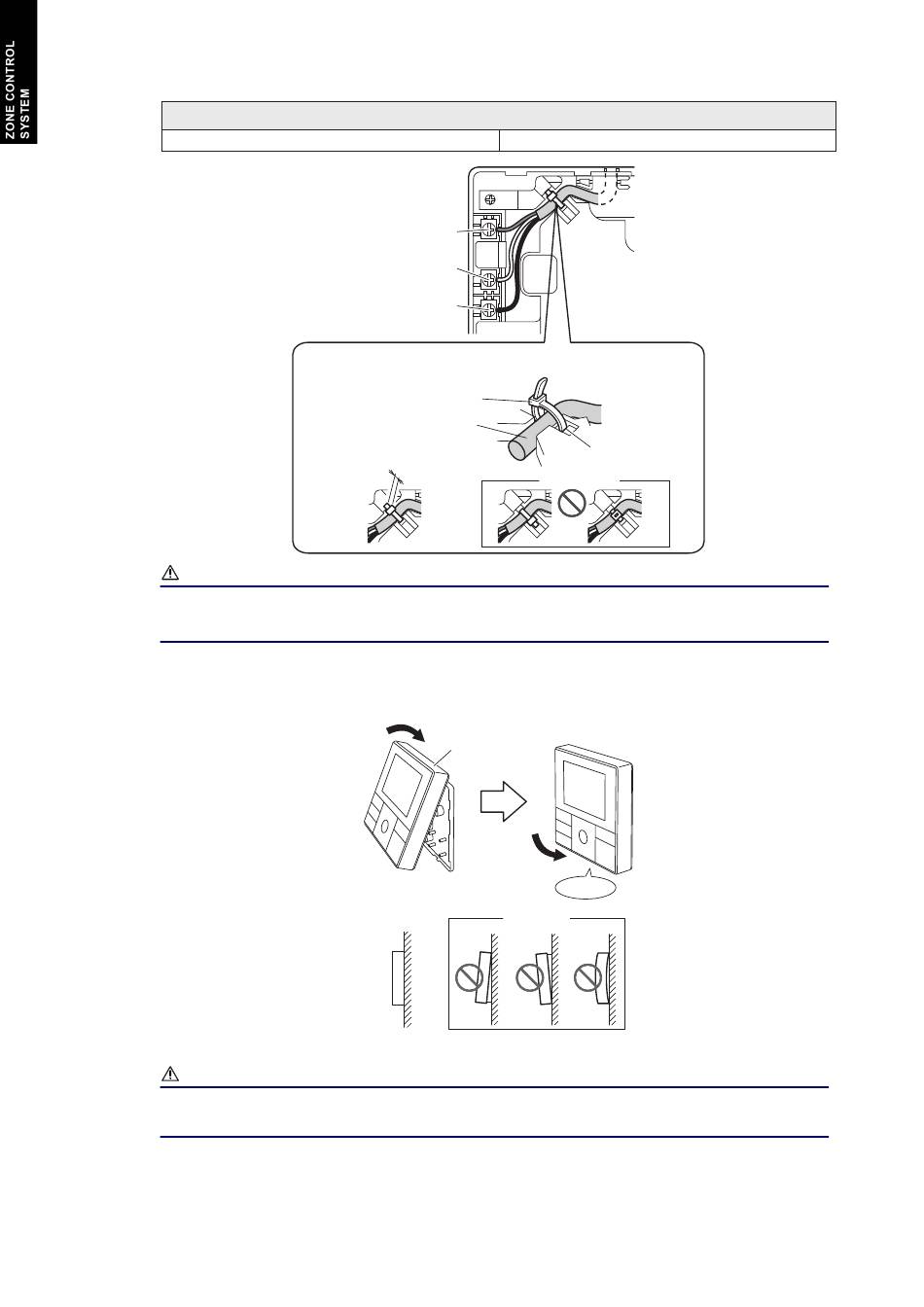

4. Connect the cable to the terminals on the front case:
Fix the cable together with the sheath by using the cable tie. Cut off the excess cable tie.
Terminal screw
To avoid an excessive tension or pressure to the terminal block,
fix the remote controller cable with the cable tie properly.
CAUTION
• Be carefull to avoid breaking the cable by over-tightening the cable tie.
• When connecting the remote controller cables, do not over-tightening the screws.
5. Attach the front case:
Insert after adjusting upper part of front case. When insert the front case, do not pinch
the cable.
CAUTION
Insert the upper case firmly. If improperly attached, it will cause the upper case to fall
off.
Tightening torque
1. 12V (Red)
2. Signal (White)
3. COM (Black)
Cable tie
Remote controller
cable (sheath)
2 mm
GOOD
Front case
GOOD
- 14 -
0.8 to 1.2 N·m
Hole for cable tie
PROHIBITED
Click!
PROHIBITED
