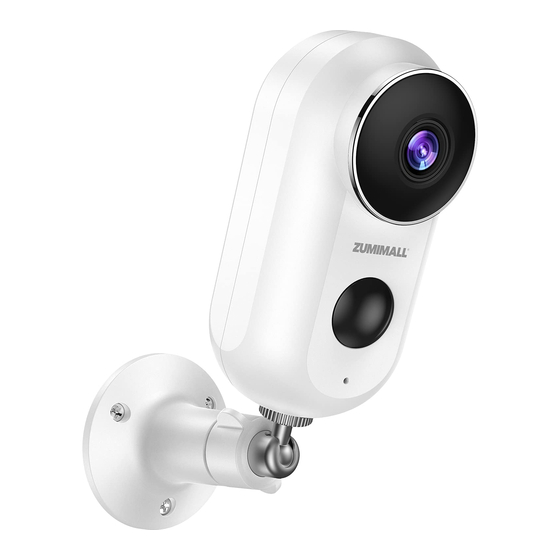

Zumimall F5 Quick Start Manual
Battery powered camera
Hide thumbs
Also See for F5:
- Quick start manual (75 pages) ,
- Quick start manual (28 pages) ,
- Quick start manual
Related Manuals for Zumimall F5
Summary of Contents for Zumimall F5
- Page 1 Get Smarter About Your Security QUICK START GUIDE BATTERY POWERED CAMERA F5@zumimall.com WIRELESS I WIFI I INDOOR I OUTDOOR...
- Page 3 Register via the link below to get 3 Years Warranty Extension. http://bit.ly/zuReg Product Service Product Service: F5@zumimall.com Distributor: distributor@zumimall.com Cell/iMessage/SMS/Whatsapp/Wechat: +86 18938687483 More About Us Web: www.zumimall.com Facebook: www.facebook.com/zumimalloffice Amazon Office Store: www.amazon.com/zumimall...
-
Page 4: Table Of Contents
INDEX PAGE 1. What’s in the Box -----------------------------------------------------P1 2. Product Diagram -----------------------------------------------------P2 3. Download & Install App ---------------------------------------------P3 4. Account Registration -------------------------------------------------P4 5. Add Camera to App -------------------------------------------------P4 5.1 Preparation for Connection -------------------------------------P4 5.2 Connect Camera to App ------------------------------------P5.P6 6. Camera Installation --------------------------------------------------P7 7. - Page 5 INDEX PAGE 14. Multi Device Management --------------------------------------P14 14.1 Multi Camera Management ---------------------------------P14 14.2 Multi-User Sharing --------------------------------------P15.P16 15. Reset Camera------------------------------------------------------P16 16. Trouble Shooting --------------------------------------------P17.P18...
-
Page 6: What's In The Box
F5@zumimall.com 1. What’s in the Box ZUMIMALL Battery Camera*1 Outdoor Metal Mount*1 Quick User Guide*1 Screws Set*1 USB Cable*1 NOTE: Micro SD card and power adapter are not included. - Page 7 F5@zumimall.com 2. Product Diagram Camera Lens Charging Status Microphone PIR Sensor Reset Hole Speaker LED Indicator Power Button SD Card Slot IR Lamp USB Port Power Button Keep pressing for 5-10 seconds to power on/power off Reset Button Keep pressing for 5-10 seconds to reset...
-
Page 8: Download & Install App
Android ZUMIMALL NOTE: Please turn on both of the following permissions. 1. Allow ZUMIMALL to access mobile cellular data and wireless LAN, otherwise, it will fail to connect the camera. 2. Allow ZUMIMALL to receive pushed messages, otherwise, the smartphone will not receive alarms when motion is detected. -
Page 9: Account Registration
F5@zumimall.com 4. Account Registration New users need to sign up ’ZUMIMALL’ App with email address. Click ‘Sign up’ to create a new account and follow the steps to complete registration. 5:51 5:51 5:51 Glad to meet you! < < Sign up Sign up >... -
Page 10: Connect Camera To App
F5@zumimall.com 5.2 Connect Camera to App 5:48 5:48 Select Device Devices Get Smarter about your Smart Security Camera Doorbell Battery Camera Tap + to add a new device. Devices Messages Tap ‘+’ to Add Device Select ‘Battery Camera’ 5:49 5:49 <... - Page 11 F5@zumimall.com 5:50 5:50 < < Wi-Fi Setup Operation Instructions Select your Wi-Fi network (Please select a 2.4G network, this device will 15~25cm — — — — — — — — — — — — — — — — not work with 5G Wi-Fi networks)
-
Page 12: Camera Installation
F5@zumimall.com 6. Camera Installation Step 1: Fix the bracket to where you want to install the camera with the supplied screw. Step 2: Fasten the camera on the metal mount, and fix them. Step 3: Adjust the viewing angle of the camera. -
Page 13: Monitoring Area
F5@zumimall.com 8. Monitoring Area It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the motion events or cause delay. It is suggested to make the angle between PIR Sensor and detected objects more than10 degrees. -
Page 14: Device Menu
F5@zumimall.com 9. Device Menu 5:51 5:51 5:51 < < 060238708 Devices 060238708 2020-9-14 15:30:10 2020-10-08 14:50:10 2020-10-08 15:30:10 060238708 Bit Rate:10.74KB/s WiFi:97% 14:00 15:00 16:00 Live History Cloud Live History Cloud Calendar Screenshot Record Screenshot Intercom Record Motion Detection Album... -
Page 15: Pir Body Detection
F5@zumimall.com 10. PIR Body Detection 10.1 Body Detection Alarm Setting PIR ‘Motion Detection’ defaults to be ‘High’ level. But it is adjustable. Please refer to the pictures below. 5:51 5:51 5:50 < < < Settings 060238708 Motion Detection Motion Detection... -
Page 16: Records/Playback/Delete
F5@zumimall.com 10.3 Records/Playback/Delete 10.3.1 On ‘MESSAGES’ page, click ‘Alarm Messages’, you can view all the records listed. 10.3.2 Click the following buttons to playback or delete. 10.3.3 All screenshots or manually recorded videos on live/history/ cloud page will be saved in Pictures & Videos. Files here can be saved in your phone Album or shared with others directly. -
Page 17: Power Saving Settings
F5@zumimall.com 12. Power Saving Settings 12.1 Alarm interval & shooting interval This is a function that avoids repeated alarms for the same event. You can choose an alarm interval of different lengths, if the interval is 5 minutes, then the camera is triggered at 08:00, you will receive an alarm message, and you will not receive a new alarm push in the next 5 minutes, even if motion detection continues to occur. -
Page 18: Alarm Plan
F5@zumimall.com 12.3 Alarm Plan You can set the weekly/daily alarm schedule as you need. If you set the camera's working hours from 8:00 p.m. to 8:00 a.m., please set 20:00-8:00 a.m. The camera will only be triggered and record alarm video during this time period. -
Page 19: Battery Management
F5@zumimall.com 13. Battery Management 1. The camera has a built-in high-capacity battery, which can be used for 2-3 months, assuming the camera wakes up15 times per day and plays video for 10 minutes each day. NOTE: The battery durability depends on how frequently the camera is woken up. -
Page 20: Multi-User Sharing
5:51 < Device Share But camera can be shared from A to B. Step 1: B download ‘ZUMIMALL’ App to his/her How do you share your camera with others? phone and create a new account in the App. Step 2: Click ‘Add’ in App on A’s phone. -
Page 21: Reset Camera
F5@zumimall.com 5:50 5:50 < < Device Share My QR Code yuki 924355665@qq.com yuki Tips 924355665@qq.com YoungCz Requests to share his Allow sharing camera“060552692” device：060552682 to you Reject Accept Scan the QR Code to share the camera with me. Share Select 'Accept' Tap 'Share' 15. -
Page 22: Trouble Shooting
①Open the phone settings, click on the notification, find ‘ZUMIMALL’ APP , open allow notification ②Open the ‘ZUMIMALL’ APP , in the ‘Settings’ interface, open the alarm push No alarm push ③In the ‘My’ screen, go to the settings and open the push sound ④Ensure that the device's motion detection function is successfully turned on... - Page 23 WIFI signal expander to improve WiFi performance ④Remove the camera from your ZUMIMALL account, reset the device and then re-add it ⑤Check if the device firmware and ZUMIMALL APP are the latest version ①Reduce the sensitivity of camera motion detection and reduce the number Battery durability of camera triggers ②Reduce the number of two-way intercoms and viewing live video...
