GE UVW9304 Owner's Manual & Installation Instructions

GE UVW9304 Owner's Manual & Installation Instructions

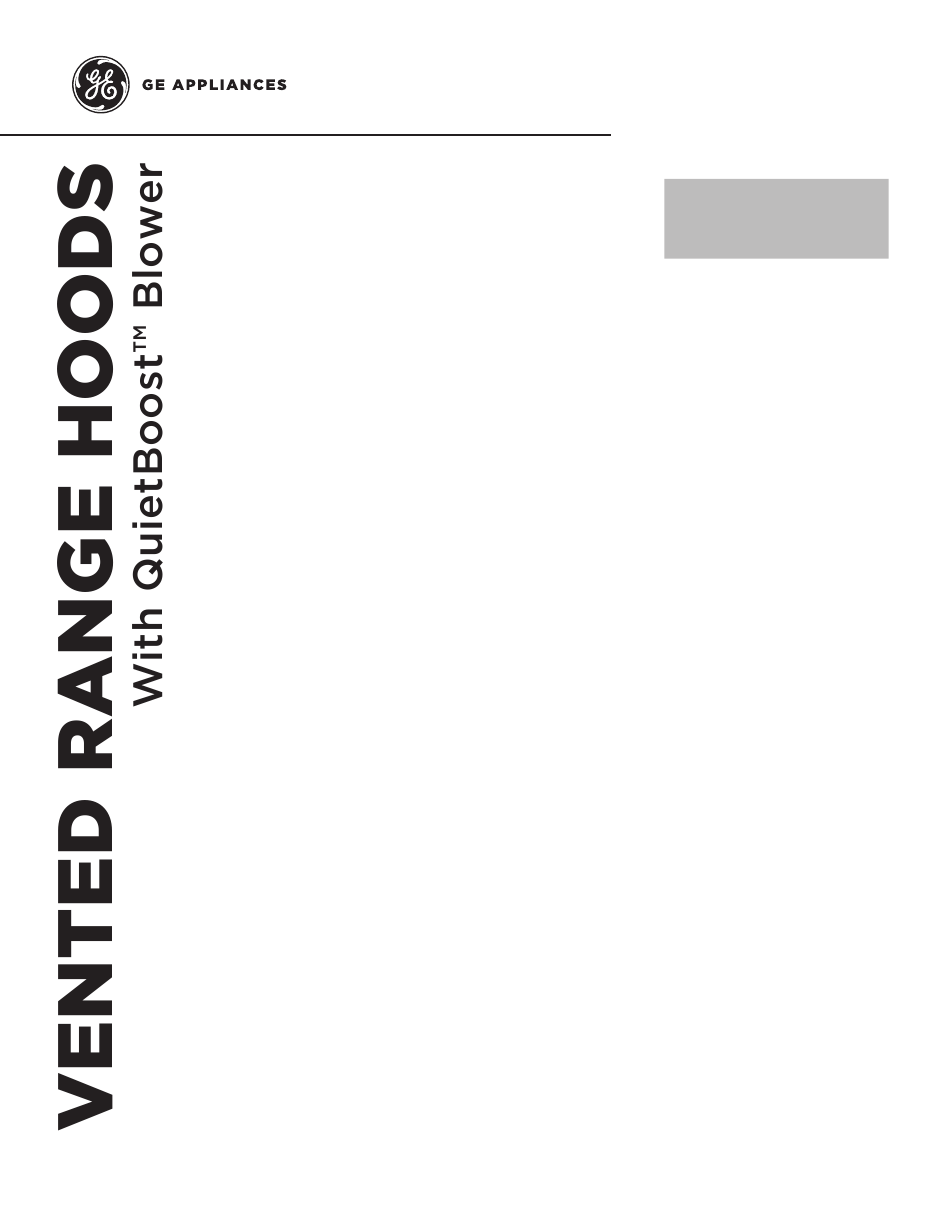

Vented range hoods with quietboost blower

Advertisement

USING THE HOOD
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Chef Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Wi-Fi Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CARE AND CLEANING
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
You can find them on a label
on the inside of the hood.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
. . . . . . . . . . . . .3
. . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . 25
. . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . 28
OWNER'S MANUAL
& INSTALLATION
INSTRUCTIONS
UVW9304
UVW9364
UVW9484
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
49-2000707 Rev. 3 05-21 GEA

Advertisement

Table of Contents
loading

Summary of Contents for GE UVW9304

  • Page 1: Table Of Contents

    GEAppliances.com. Serial # _________________ You can find them on a label on the inside of the hood. GE is a trademark of the General Electric Company. Manufactured under trademark license. 49-2000707 Rev. 3 05-21 GEA...
  • Page 2 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too.
  • Page 3: Safety Information

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING WARNING TO REDUCE THE RISK OF FIRE, TO REDUCE THE RISK OF INJURY ELECTRIC SHOCK OR INJURY TO PERSONS, TO PERSONS IN THE EVENT OF A RANGE TOP OBSERVE THE FOLLOWING: GREASE FIRE, OBSERVE THE FOLLOWING*: A.
  • Page 4 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING WARNING TO REDUCE THE RISK OF FIRE, TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, USE ONLY METAL DUCTWORK. OBSERVE THE FOLLOWING: Do not attempt to repair or replace any part of your A.
  • Page 5: Controls

    Controls Fan Settings Off High Light WiFi Delay Off WiFi Boost Chef Connect To Pair Hold 3 Sec Pairing Hold 3 Sec Hold 3 Sec 1. Rangehood Control Panel: 4. Light: The control panel Off/On/Night Light switch for the LED lights. Press the Light button to turn the lights on, again to is located under the front edge of the canopy.
  • Page 6: Wi-Fi Connect

    Your GE Appliances hood is designed to provide you with two-way communication between your appliance and smart device. By using the GE Appliances Wi-Fi Connect features, you will be able to control essential hood operations such as fan speed, light functions, delay off and filter notification using your smartphone or tablet.
  • Page 7: Filters

    Filters Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood. The baffle filters and drip trays are dishwasher safe and should be cleaned every month, depending on the usage of the hood Grease Drip Tray To install:...
  • Page 8: Surfaces

    Bar Keepers Friend Soft Cleanser™ follow the link below or scan the QR Code. barkeepersfriend.com/ge Lights To change the LED lamps, schedule a service appointment. See Consumer Support page for a list of websites and contact information.
  • Page 9: Installation Instructions

    Installation Range Hoods Instructions If you have questions, visit GEAppliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737). BEFORE YOU BEGIN WARNING TO REDUCE THE RISK OF FIRE, Read these instructions completely and ELECTRIC SHOCK OR INJURY TO PERSONS, carefully. OBSERVE THE FOLLOWING: IMPORTANT A.
  • Page 10 Installation Preparation PRODUCT DIMENSIONS 12-1/4” 18” 21” 30” 30” Models Requires a 30” opening. 12-1/4” 18” 21” 36” 36” Models Requires a 36” opening. 12-1/4” 18” 21” 48” 48” Models Requires a 48” opening. 49-2000707 Rev. 3...
  • Page 11 Installation Preparation TOOLS AND MATERIALS PLAN THE INSTALLATION REQUIRED (NOT SUPPLIED) CAUTION To reduce risk of fire and to properly exhaust air, be sure to duct the air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. Safety glasses PARTS SUPPLIED FOR INSTALLATION ■...
  • Page 12 Installation Preparation PARTS PROVIDED HARDWARE PACKAGE Locate the parts packed with the hood. Locate and check contents. Top Damper (QTY: 4) 2.9mm x 6mm Motor PZ screws. Used to (2 with 48” model) attach the damper 761Dia28 (QTY: 4) 8 x 1-3/4 AB Screw.
  • Page 13 Installation Preparation INSTALLATION DIMENSIONS DUCT COVER REQUIREMENTS The hood duct covers can be adjusted for different Duct cover kits must be purchased separately. ceiling heights depending on the distance between We recommend that the vent hood and duct cover the bottom of the hood and the cooktop (distance (if used) be on site before final framing and wall X).
  • Page 14 Installation Preparation INSTALLATION HEIGHT TABLE CX8DC9SPSS CX10DC9SPSS CX12DC9SPSS Ceiling Duct Cover up to High Ceiling Duct Cover up to 10 ft. High Ceiling Duct Cover up to 12 ft. 8 ft. Installation over Gas Installation over Electric Installation over Gas Installation over Electric Installation Installation...
  • Page 15 Installation Instructions ADVANCE PLANNING POWER SUPPLY Duct Install Planning IMPORTANT – (Please read carefully) ■ This hood is designed to be vented vertically WARNING through the ceiling with an 8” round duct for 30" and 36" models and a 10" round duct for 48" FOR PERSONAL SAFETY, THIS APPLIANCE model, or horizontally through a wall with an MUST BE PROPERLY GROUNDED.
  • Page 16 Installation Preparation NEW CONSTRUCTION, PRE-PLANNING, OR REMODELING NOTE: For existing instruction, skip to the next section. FOR TOP VENTING FOR BACK VENTING ■ For ducted installation through the top, the 8” ■ For ducted installation through the back, the 10-1/2" diameter hole (for 30” or 36” model) or the 10” x 13-1/4”...
  • Page 17 Installation Instructions DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS FOR CEILING VENT • This hood can be installed onto the wall or DUCTING underneath the soffit or cabinet. Centerline to Wall • For installing the hood to soffit or cabinet, refer to page 19 for alternate mounting method.
  • Page 18 Installation Instructions INSTALL HOOD SUPPORT INSTALL HOOD SUPPORT (Cont.) IMPORTANT: Framing must be capable of • Install wall anchors (C) by tapping the anchors supporting 100 lbs for 30" and 36" models and 150 with a hammer to seat the teeth of the flanges into lbs for 48"...
  • Page 19 Installation Instructions 4 (Alternate Mounting Method) INSTALL HOOD ONTO WALL INSTALL HOOD TO SOFFIT OR • Pull house wiring through knockout at the back or top of the hood. CABINET • Lift the hood and place over the hooks on the SKIP THIS STEP IF USING WALL MOUNTING installation bar.
  • Page 20 Installation Instructions 4 (Alternate Mounting Method) INSTALL HOOD TO SOFFIT OR CABINET (Cont.) • Drill two 1/8” pilot holes at a distance of 10” from the • The hood must also be secured to the back wall. back wall in the horizontal wood supports. This is the Follow instruction on page 18, “Drill Bottom Mounting Hole Locations”...
  • Page 21 Installation Instructions 5 INSTALL MOTOR 6 CONNECT ELECTRICAL I) Align the motor exhaust with the top damper as Verify that power is turned off at the source. shown in the Figure A for top venting. In case of WARNING back venting, rotate the motor 90° to align with the If house wiring is not 2-wire with back damper as shown in Figure B.
  • Page 22 Installation Instructions 7 CONNECT DUCTWORK A. Vented Installation B. Recirculation (non-vented) Installation • Connect the house ducting to the top damper as NOTE: A recirculation duct (WB34X30519), and shown in Figure A. Charcoal Filter (UXCF91), are not included with the hood and are necessary for recirculation installation.
  • Page 23 Installation Instructions 8 INSTALL DUCT COVERS 9 INSTALL GREASE TRAYS AND FILTERS • Refer to section “Duct Cover Requirements” on page 13 for duct cover accessory part numbers. • Remove protective film. • Place grease drip trays into slots. • Follow instructions included with the duct cover accessory to install duct covers.
  • Page 24 Installation Instructions MAKE UP AIR TECHNOLOGY This operation must be performed by a qualified technician or installer. Note to Installers and Inspectors: This product comes equipped with a simple installation feature that limits maximum CFM levels in order to comply with certain local codes or regulations. This installation method may not be necessary for all installations, please refer to your local codes for further guidelines.
  • Page 25: Troubleshooting Tips

    Using smaller duct pipe will cause reduced venting. Minimize the duct run length and number of transitions and elbows. GE Appliances service technicians cannot correct this issue if installed improperly. Fan fails to circulate Obstructions in duct work.
  • Page 26: Limited Warranty

    This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service.
  • Page 27: Accessories

    Accessories Looking For Something More? Café offers a variety of accessories to improve your cooking and maintenance experiences! Refer to the Consumer Support page for website information. The following products and more are available: Parts Baffle Filters Grease Drip Trays Duct Covers Remote Control Back Venting Damper...
  • Page 28: Consumer Support

    Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience.

This manual is also suitable for:

Uvw9364Uvw9484
