- Page 1 User Manual mME DTZ541 Three-phase Electricity Meter LoRaWAN + LoRa (Concept) Holley Technologie GmbH Angerburger Allee 43 14055 Berlin E-Mail: info@holleytech.de http://www.holleytech.de...
-
Page 2: Table Of Contents
Contents 1 Notice ............................1 2 Preface............................2 3 General ............................4 3.1 Device versions ........................4 3.2 Housing element ......................5 3.3 Nameplate ........................6 4 Technical Data ..........................7 4.1 Test-LED .........................8 4.2 Notes on measurement accuracy ..................8 5 Assembly ............................9 5.1 Attachment and connection ....................9 5.2 Rates control ........................9 5.3 Terminal block ....................... - Page 3 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 10.2 Meter Control Message (MCM) ..................29 10.2.1 Meter Control Message (MCMHDR) defined as: ......... 30 10.2.2 Unconfirmed Interval ................... 30 10.2.3 Confirmed Interval ..................31 10.2.4 Max Wiederholungen .................. 31 10.2.5 Example ......................
-
Page 4: Notice
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 1 Notice Safety Instructions The installation, installation and uninstallation of the meter may only be carried out by a certified electrician. For your own safety and to avoid damage to the device, please observe the following safety information. The information in the manual is important for your own safety in order to avoid damage. -
Page 5: Preface
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 2 Preface LoRaWAN mME DTZ541, it is a new innovative product that was developed for the German market. The meter has 2 communication channels "LoRaWAN" and "LoRa". With the LoRaWAN network, the meter can regularly send the defined measurement data to the server. In addition, the user can use a LoRa adapter to query all measurement data from the meter at any time and also set all parameters. - Page 6 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Lastenheft VDE / FNN specifications EDL electronic household meters, functional features and protocol, version 1.2 (11/2016)
-
Page 7: General
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 3 General 3.1 Device versions This chapter lists options for the DTZ541 type electricity meter. These options then map a complete type designation of the meter. The individual meter can be defined by specific, clear characteristics such as maximum electricity, the tariff or the data interface. -
Page 8: Housing Element
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 3.2 Housing element Explanation Explanation Control button for switching the LED Pulse output display and entering the PIN Optional extension of the upper Sealable housing cover attachment User security can be secured with a Two-line display wire seal Housing cover protection under... -
Page 9: Nameplate
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 3.3 Nameplate Explanation Explanation LED- Pulse constant Logo from manufacturer AC electricity meter Three-phase four-wire meter Protection class III Information on the type of measurement operation manual Temperature range Circuit Construction year diagram Unique identification number according to Manufacturer's address... -
Page 10: Technical Data
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 4 Technical Data Features Explanation Dreiphasen-Vierleiter / Einphasen-Wechselstrom Connection type frequency 50Hz 3 * 230/400 V voltage Rated 1*230V auf L1, L2, L3 Current I 0,25-5(100) A or 0,25-5(60) A Starting current 0.004*I =0,02 A Transient current (I... -
Page 11: Test-Led
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Features Explanation Mechanical environmental conditions Electromagnetic environmental conditions Protection class IP51 95% non-condensing, <75% annual mean according to Relative humidity IEC 62052-11, EN 50470-1 and IEC 60068-2-30 -25 ° C ... + 55 ° C (operation) Temperature range -40 °... -
Page 12: Assembly
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 5 Assembly 5.1 Attachment and connection Before installing and commissioning the meter, check whether the meter is damaged. please check whether the meter is damaged. If you detect any damage to the housing or a missing legal metrological fuse, the meter must not be used if the seals are missing or the housing is damaged. -
Page 13: Terminal Block
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 5.3 Terminal block In order to ensure a secure electrical connection between connecting cables and terminals, the clamping screws must be tightened with a corresponding torque in accordance with DIN EN 60999-1. Tighten the terminal screws with a corresponding torque in accordance with DIN EN 60999-1 to ensure a safe electrical connection between the connecting cables and to ensure the terminals. - Page 14 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Voltage / Additive - Phase Clamps Variant 60A/100A N tap Clamps 1, 3, 4, 6, 7, 9, 10, 12 2, 11 13, 15, 27, 28 Clamps ∅ (mm) Min. Connection cross-sections (mm²) Max.
-
Page 15: Lc-Display
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 6 LC-Display 6.1 LCD- Segments The meter has an LC display with additional symbols to identify measured values and working conditions. Explanation Active tariff display OBIS code of the labor value Display of meter reading Unit for meter reading Phase control Energy direction... -
Page 16: Display Of Operation
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Display of current performance or info Abbreviation of "Day" for historical values Information content icon Info display icon 6.2 Display of operation The display test for 15 seconds when the voltage is restored. Upper display line segments and lower display line segments alternately fade in and out 3 times. - Page 17 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Variant of single tariff for current direction + A: only register 1.8.0 Double tariff variant for current direction + A: alternating display between registers 1.8.1 and 1.8.2 Variant of individual tariff for current direction -A: only register 2.8.0 Double tariff variant for current direction -A: alternating display between registers 2.8.1 and 2.8.2 The 6 register values 1.8.0, 1.8.1, 1.8.2, 2.8.0, 2.8.1 and 2.8.2 are relevant for billing.
-
Page 18: Pin
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 7 PIN 7.1 INFO PIN An optical data interface on the front is available for the end user. Its constant data rate is 9600 baud and the character encoding is 8-N-1. The transmission protocol is according to SML specification version 1.04. The interfaces work in "PUSH"... -
Page 19: Msb Pin
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter • • Firmware version Voltage L3 • • Firmware checksum Current L1 • • Error register Current L2 • Current L3 • Phase angle U-L2 to U-L1 • Phase angle U-L3 to U-L1 •... -
Page 20: Lmn Pin
DTZ541 Three-phase electricity meter 7.3 LMN PIN The MSB interface can be expanded as the LMN interface with the Holley communication adapter BAB-01. Its constant data rate is 1Mbit and the character encoding is 8-N-1. The LMN interface meets the requirements of the FNN specification sheet for basic meters, the PTB requirements for communication adapters PTB-A50.8 and the requirements of BSI TR03109. -
Page 21: Tariff Control
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 8 Tariff control For the DTZ541 with double tariff function, the tariffs may be activated and controlled via terminals 13 and 15 or via the LMN interface. Control via the LMN interface has priority over the control signal supplied to the control terminals. - Page 22 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter function is “prepared” and has been activated, the double tariff function remains in the “prepared and activated” state even after the operational readiness has been lost (loss of mains voltage) and can only be reset in accordance with Section 8.1.
-
Page 23: Operation Of The Counter With The Key
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 9 Operation of the counter with the key DTZ541 has a physical button and, optionally, an optical button in the position of the INFO interface. By entering a "short key press" and a "long key press (5s)" additional information is shown in the second line of the display. - Page 24 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter PIN- input Enter the 4 digit of the pin If the PIN is correct, the display then shows the performance If the PIN is not correct, the display shows the operating mode historical value "+ A"...
- Page 25 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter historical daily value "+ A" Activation of the delete function delete historical value "+ A" and "-A" since the last reset historical daily value "+ A" historical weekly value "+ A" to call up 730 individual daily values "+ A" second historical daily value "+ A"...
- Page 26 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Deactivating the inspection of the daily value "+ A" historical weekly value "+ A" historical monthly value "+ A" or 104 historical weekly values "+ A" can be viewed historical annual value "+ A" or 24 historical monthly values "+ A"...
- Page 27 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 730 historical daily values "-A" can be viewed second historical historical daily value "-A" all 730 daily values "-A" can be viewed Deactivating the inspection of the daily value "-A" historical weekly value "-A" historical monthly value "-A"...
- Page 28 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter historical annual value "-A" or 24 historical monthly values "-A" can be viewed Setting the deletion of historical values "+ A" and "-A" 2 historical annual values "-A" can be viewed State of the INFO PIN Activation of the delete function historical value "+ A"...
- Page 29 User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Status of the PIN input to stop displaying the additional information to set the PIN entry as "off" in order to call up the additional information again to stop displaying the additional information to call up the additional information again...
-
Page 30: Lorawan Function
DTZ541 Three-phase electricity meter 10 LoRaWAN Function This chapter describes the payload from the Holley LoRaWAN electricity meter. There are two messages in the log, “Meter Reading Message” (MRM) is sent regularly by the meter and “Meter Control Messages” (MCM) is sent by the LoRaWAN server. -
Page 31: Hex-Code Conversion
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Data record-1 from the mME counter Byte- length Content Conter number Counter Counter firmware Adapter firmware LoRaModul- firmware checksum version firmware- version Version Data record-2 from the mME counter Byte- length Second index Content 1.8.1 1.8.2... -
Page 32: Meter Control Message (Mcm)
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter Explanation from the payload: Consumption value _1.8.0: "40.2381 kWh", Consumption value _1.8.1: "40.2381 kWh", Consumption value _1.8.2: "0 kWh", Consumption value _2.8.0: "0 kWh", Consumption value _2.8.1: "0 kWh", Consumption value _2.8.2: "0 kWh", power _P : "9.7 W", power _P... -
Page 33: Meter Control Message (Mcmhdr) Defined As
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 10.2.1 Meter Control Message (MCMHDR) defined as: Bit# Part Version, Version, LowBit Send Readings Send Now Highbit Bit# Part Execution Version Bits description LoRaWAN Meter Protocol V1 01..11 Send Readings Send Readings Bit description Off, do not send any uplink packets at the defined intervals until the bit is set to 1 again. -
Page 34: Confirmed Interval
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter message (no confirmation expected). The default value is "F" (every 15 minutes) and the minimum value is "5" (every 5 minutes). If "Send Readings" is switched off, the meter readings still send the message, omitting only readings (that is, only the header with the status bits). -
Page 35: Lora Function
User Manual LoRaWAN mME DTZ541 Three-phase electricity meter 11 LoRa Function With the Holley LoRa adapter and super password, all parameters of the LoRaWAN function can be configured and the meter data can be read at any time.
Need help?
Do you have a question about the LoRaWAN DTZ541-ZDBL and is the answer not in the manual?
Questions and answers

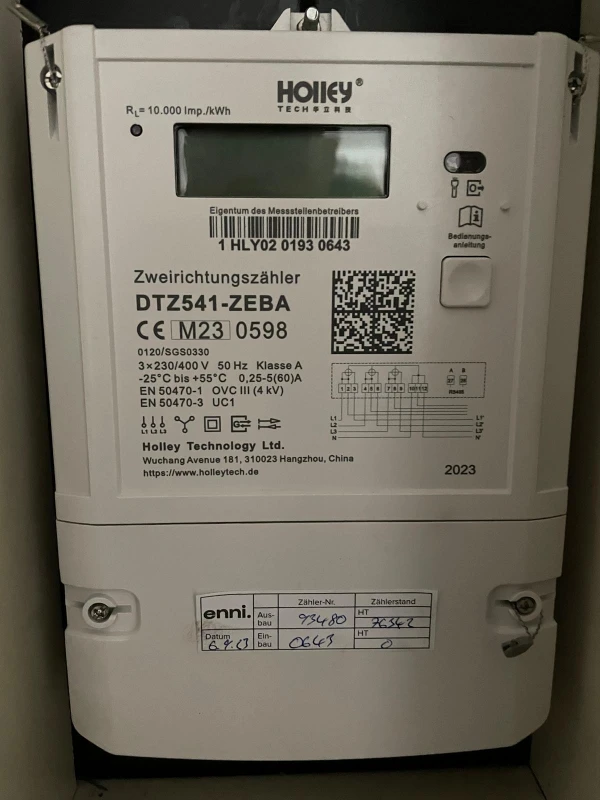

Guten Tag. Ich habe ein Halley DTS541 ZEBA-Modell installiert, der Monitor ist **** eingeschaltet, ich kann **** anders, als Messwerte zu schreiben, den Durchfluss **** zu überwachen. Wie aktiviere ich die Monitorwerte?
