Tetra Pond UVC-5 Quick Start Manual page 2

Regulating Flow to the UV:
If the water flow through the UV clarifier exceeds the
recommendations, you may put a ball valve in the tubing to restrict
and regulate the flow. Place the ball valve between the pump and the
UV clarifier unit.
Positioning and Assembly
The Tetra®Pond GreenFree® UV Clarifier is not submersible and should
be positioned outside the pond where there is little likelihood of it
sitting in puddles or falling into the pond.
It is recommended (but not necessary) that the UV clarifier is attached
to the tubing that enters external pond filter. This prevents the flow
restriction caused by the UV restricting the flow of the filter.

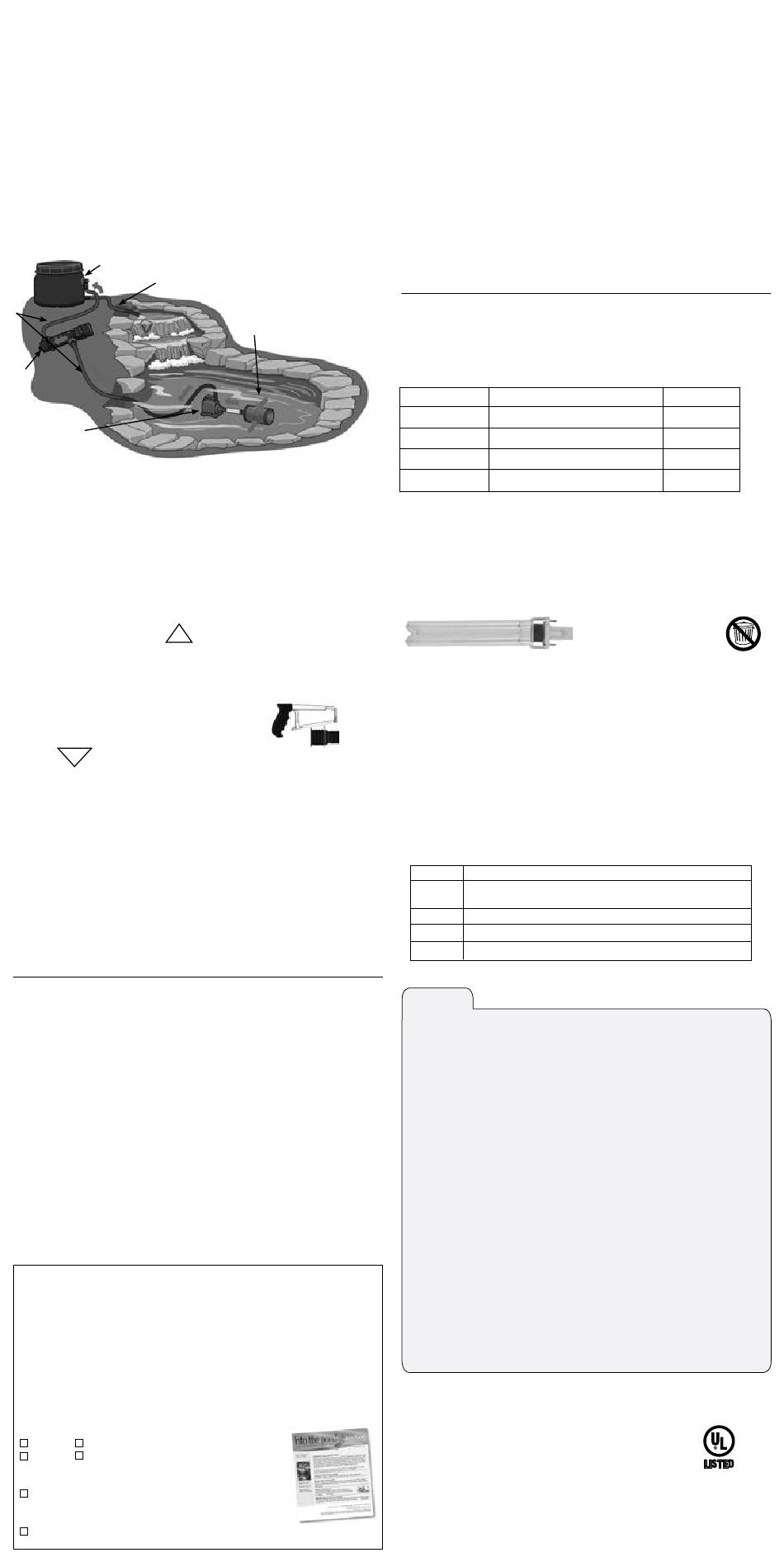

Typical Set-Up for Small & Medium Ponds
4
5
3
2
UV Bulb and Quartz Glass Tube Installation
Insert the UV-C bulb into the connector. (Note: Avoid touching the
bulb with bare hands and remove any marks using a clean cloth or
tissue. Oil from your fingers can reduce the life of your bulb.)
The quartz glass tube is positioned with three rubber O-rings in place.
Be sure O-rings are positioned properly to form a tight seal. Water
entering inside the quartz tube may cause damage to the electrical
components.
Connecting the UV Clarifier to the Pump
The inlet connection (marked in ) is the one closest to the screw cap
of the UV unit. Connect the pump tubing to this inlet.
All UVs come with 2 three-stepped adapters that fit the following
internal diameter tubing (ID):
¾ in., 1 in. and 1 ¼ in. ID
• Choose the hose adaptor size of the UV
according to the tubing used.
• Make sure that the hose adaptor for the outlet
(marked out ) is at least as large as the inlet.
- Cut the hose adaptor in the groove with hacksaw to fit the tubing
selected (if necessary).
Ensure that the gasket is in place before attaching the hose adaptor
into the unit.
• Hand-tighten the hose coupling rings. Do not use a wrench.
• Secure hoses to adaptors with hose clamps (not included).
UV Clarifier – Electrical Connection
Please read safety instructions before plugging the unit into the
electrical outlet.
• When working, a purple UV light can be seen through the viewing
window located in the UV housing.
• An operational test can only be carried out when the equipment is
fully assembled.
Seasonal Use
Summer: The unit should remain in operation 24 hours a day.
Winter: It is recommended to store the unit in a frost-free location.
THE WARRANTY DOES NOT COVER DAMAGE TO THE UV CLARIFIER
DUE TO FREEZING TEMPERATURES.
Maintenance and Care
When carrying out any maintenance, the unit must be disconnected
from the electrical circuit.
• Clean the unit at least twice a year. A clean quartz tube will allow
the UV light to be more effective in controlling algae. More frequent
cleaning may be required for ponds with severe algae growth.
Tip: Use warm vinegar to wipe the quartz sleeve for a faster clean and
efficient removal of mineral build up.
WARRANTY CARD
Please fill out this card and mail it to the address on back OR complete an
e-registration form by logging on to www.tetrawarranty.com to validate
your warranty. Thank you!
Name of Purchaser:____________________________________________
Address:_____________________________________________________
City___________________________ ST_____ Zip code:______________
E-mail Address:_______________________________________________
Date of purchase:_ ____________________________________________
United Pet Group, Inc. respects your privacy. Any and all personal
information collected here will be kept strictly confidential and will
not be sold, reused, rented, or otherwise disclosed.
Which GreenFree® UV-Clarifier did you purchase?
UVC-5 UVC-9
UVC-18 UVC-36
Electronic Newsletter
Yes, I would like to receive free e-mail updates on
water gardening, including tips, new products,
and or other helpful information.
No, I would not like to receive any e-mail updates at this time.
2. Water Garden Pump
6
1
6. Discharge Tubing
WARNING: Do not allow water to come in contact with the
electrical socket or bulb.
To disassemble:
• Always remove inlet and outlets by unscrewing the hose couplings.
• Drain the unit before cleaning.
• Carefully dismantle the unit by first unscrewing the screw cap and
removing the quartz tube.
• The quartz tube may be loosened by using a small coin or a screwdriver
and can then be carefully removed. Clean with a soft cloth and water to
avoid scratching the glass quartz tube.
To reassemble:
• Be sure that the inside of the quartz sleeve is completely dry prior
to reassembly.
1. Pre-Filter
• When reassembling, ensure that the sealing rings are properly seated
(lubricate with a small amount of silicone lubricant/grease if necessary).
3. UV-Clarifier
4. Bio-Filter
5. Tubing
Replacement Parts - Bulbs and Quartz Sleeves:
The following parts are available through your Tetra®Pond dealer/retailer:
Bulbs
- Use Tetra®Pond replacement bulbs for maximum effectiveness.
UV-Clarifier
UVC-5
UVC-9
UVC-18
UVC-36
Replacement of UV Clarifier Bulbs:
• Tetra®Pond UV Clarifier Bulb should be replaced after 8,000 hours
(about once every 11 months of operation).
• If using only 5 to 6 months a year, replace the bulb every two years.
• The bulb may continue to glow after 11 months of use, but its
effectiveness has been greatly diminished.
WARNING:
California to cause birth defects. Should bulb break, wear gloves during
clean-up. Then wash hands.
Replacement of Quartz Sleeves:
• Quartz glass tubes do not need to be replaced unless they are
damaged.
• Please handle with care, and do not leave outside in winter, since they
are fragile.
Additional Spare Parts
direct from Tetra: Please call us at 1-800-526-0650 for further
information.
Item
19354
19355
19356
19362
Warranty
THREE YEAR LIMITED WARRANTY
United Pet Group, Inc. (UPG) warrants each new Pond GreenFree® UV Clarifier
(UVC-5, UVC-9, UVC-18 and UVC-36) against defects in material or workmanship
for a period of three (3) years from the date of purchase, as follows:
It will replace or repair defective parts without any charge when the complete Pond
UV Clarifier is returned to UPG with a sales slip showing the date of purchase (Be
certain to wrap the product carefully for protection during shipment.) This limited
warranty does not cover product wear and tear, nor any deterioration suffered
through conditions caused by overloading, misuse, abuse, negligence, accident or
failure to follow the instructions. Similarly any modification made by the purchaser
to the appliance will invalidate the warranty. Bulbs should be replaced after 11
months of continuous operation, and are not covered by this warranty.
Please call customer care (800) 526-0650 for return instructions.
Repair or replacement as provided under this warranty is your exclusive remedy.
UPG shall not be liable for any incidental or consequential damages [or] for breach
of any expressed or implied warranty on this product. Any implied warranty of
merchantability or fitness for a particular purpose is limited to the duration of this
limited warranty.
Some states do not allow the exclusions or, limitation of incidental or consequential
damages, nor do they allow limitations on how long an implied warranty lasts, so
the above limitations or exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights that may vary from state to
state.
Questions? Problems? Missing Parts?
• Before returning the product, please call
our Customer Care Department at 800-526-0650,
Monday–Friday 7:30 a.m. to 5:30 p.m., Eastern USA Time,
• Or email us at consumer@tetra-fish.com
Often times, our Customer Care Department can provide
advice that will help you solve the problem.
United Pet Group, Inc. (UPG) 3001 Commerce Street Blacksburg, VA 24060-6671
UV Bulb
5 Watt UV Bulb # 19526
9 Watt UV Bulb # 19527
18 Watt UV Bulb # 19528
36 Watt UV Bulb # 19529
All fluorescent bulbs contain
mercury. Dispose of properly.
This product contains a chemical known to the State of
- The following spare parts are available
Description
UVC Adapter Set
(Multi-diameter hose inlet/outlet connector,
coupling ring and sealing ring for hose connector)
Bulb Protector for UV 5W & 9W
Bulb Protector for UV 18W & 36W
Quartz Sleeve O-ring Set (3)
(800) 526-0650 • www.tetrapond.com
® Registered Trademark of United Pet Group, Inc.
or one of its affiliates, and used under license
©2014 UPG
Quartz Sleeve
# 19530
# 19531
# 19531
# 19533
19520-901 Rev. E
