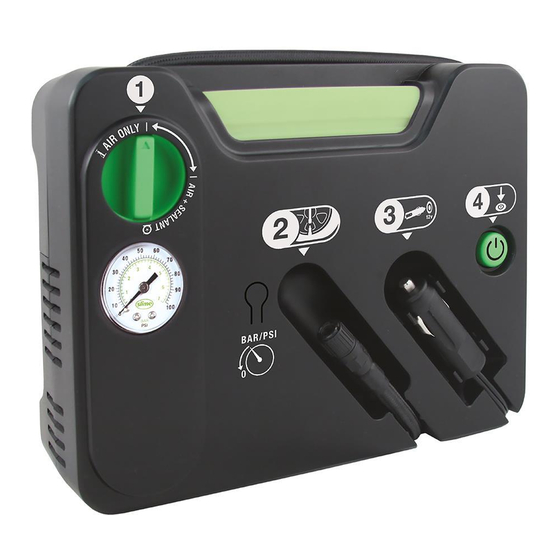

SELECT MODE
AIR OR
AIR + SEALANT
DIAL GAUGE
Measures PSI/BAR
PRESSURE RELEASE
Deflates tyre
if it has too much air
ADAPTERS
PRESTA
BALL INFLATABLES
VALVE
VALVE
DEPRESSOR*
* VALVE DEPRESSOR IS TO BE USED WITH ACCESSORY ADAPTERS (SEE PAGE 2)
CAUTION: HOT • DO NOT HOLD IN HAND WHILE OPERATING • PLACE INFLATOR ON A HARD, CLEAN
SURFACE.
1. DO NOT run vehicle while inflator is operating. You may need to be in "accessory" or "on" position.
Please make sure emergency brake is set and car is in park. Always ensure the valve connector is
fully seated to depress the core of the valve stem for proper inflation.
2. D O NOT use inflator continuously for more than 10 minutes. Allow unit to cool approximately 25
minutes between uses. Do not leave inflator unattended.
3. ALWAYS use a pressure gauge to check tyre pressure. DO NOT overinflate.
4. Soft inflatables (i.e. rafts, balls, etc.) may not have recommended pressure markings. Be careful
not to inflate items beyond their capacity.
5. While operating, never block the inflator input or output.
6. Keep inflator out of reach of children.
7. For use with 12 volt DC power outlets rated 15 amps or higher. Do not use with older 8 amp
cigarette lighter receptacles.
ATTENTION! READ ALL INSTRUCTIONS CAREFULLY
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE,
SEALANT/
AIR HOSE
PERSONAL INJURY OR PROPERTY DAMAGE.
REPLACEABLE SLIME
SEALANT CARTRIDGE
# 10180
ON/OFF
POWER SOURCE
• Plugs into 12 volt,
15 amp power outlet
• 10ft. (3m) length
PART#50129 | REV040618ART
Advertisement
Table of Contents
Related Manuals for Slime 50129
Summary of Contents for Slime 50129
- Page 1 6. Keep inflator out of reach of children. 7. For use with 12 volt DC power outlets rated 15 amps or higher. Do not use with older 8 amp cigarette lighter receptacles. ATTENTION! READ ALL INSTRUCTIONS CAREFULLY FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE, PERSONAL INJURY OR PROPERTY DAMAGE. PART#50129 | REV040618ART...
- Page 2 AIR ONLY INSTRUCTIONS: Check your tyre warranty prior to installation of this product. The AIR ONLY mode can also be used for bicycles, sports balls, rafts and other inflatables. Select AIR ONLY. NOTE: Lay Flat Tyre Repair Kit on the ground facing upward. Screw air/sealant hose onto tyre’s valve stem. Plug inflator into 12 volt accessory power outlet. Do not run vehicle while inflator is operating. You may need to be in “accessory” or “on” position. Please make sure emergency brake is set and car is in park. Push green button to turn system on. Fill to desired pressure. Turn system off and check tyre pressure. Once correct tyre pressure has been achieved, disconnect air hose and power plug.
- Page 3 Plug inflator into 12 volt accessory power outlet. Do not run vehicle while inflator is operating. You may need to be in “accessory” or “on” position. Please make sure emergency brake is set and car is in park. Push green button to turn system on. Gauge pressure will initially be high until the sealant bottle is emptied. Once bottle is empty the gauge pressure will drop and tyre inflation begins. Fill to desired pressure. Turn system off and check tyre pressure. Once correct tyre pressure has been achieved, disconnect air hose and power plug. Drive two miles with speeds less than 25 miles per hour to disperse sealant throughout the tyre, allowing it to seek out and seal the puncture. Recheck tyre pressure to verify that the puncture has been sealed. At your earliest opportunity take your vehicle to a tyre repair facility for a permanent professional repair. Inform tyre repair specialist that Slime Sealant is in the tyre. PRESSURE RELEASE The PRESSURE RELEASE ensures optimum PSI pressure. Push the area to deflate the tyre if it has been overinflated, or if there is too much air prior to inflation. Check your gauge for the desired PSI level. NOTE: Correct tyre pressure can be found in your vehicle’s owner’s manual or driver side doorjamb. SEALANT CARTRIDGE REMOVAL INSTRUCTIONS: Unwrap Lift off cartridge Rotate cartridge Pull cartidge out air/sealant hose. cover. to upright position.
- Page 4 Customer’s sole remedy under any warranty claim is limited to a Manufacturer’s coupon for a replacement product upon return of unit and proof of purchase. QUESTIONS OR COMMENTS: Call 1-888-457-5463 or visit www.slime.com ITW Global TIre Repair • 125 Venture Drive, Suite 210, San Luis Obispo, CA 93401 USA Slime is a trademark of Illinois Tool Works, Inc., registered in the U.S.
