Page 1

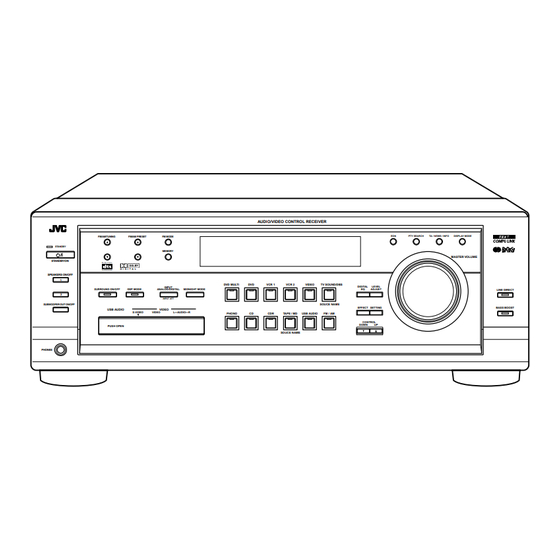

2/17/2019 RX-8010RBK/ RX-8012RSL SERVICE MANUAL AUDIO/VIDEO CONTROL RECEIVER RX-8010RBK RX-8012RSL Area Suffix Continental Europe Northern Europe CATV/DBS VCR 1 AUDIO DVD MUILTI FM/AM TV/DBS VIDEO PHONO VCR 1 VCR 2 TAPE/MD SURROUND ANALOG/DIGITAL SLEEP ON/OFF MODE INPUT AUDIO/VIDEO CONTROL RECEIVER...
Page 2
2/17/2019 RX-8010RBK/ RX-8012RSL 1. This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.
Page 3
2/17/2019 RX-8010RBK/ RX-8012RSL Disassembly method Top cover Removing the top cover (See Fig.1) Remove the four screws A attaching the top cover on both sides of the body. Remove the three screws B on the back of the body.
Page 4
2/17/2019 RX-8010RBK/ RX-8012RSL Removing each board connected to the rear side of the audio board (See Fig.5 to 11) Prior to performing the following procedure, remove the top cover and the rear panel. Tie band Cut off the tie band fixing the harness.
Page 5
2/17/2019 RX-8010RBK/ RX-8012RSL S Video Video audio board Video board board Fig.10 DSP board CN601 Fig.11 Relay board CN814 CN813 Removing the audio board CN71 (See Fig.12 and 13) power supply Prior to performing the following procedure, remove board the top cover and the rear panel.
Page 6
2/17/2019 RX-8010RBK/ RX-8012RSL Removing the main board (See Fig.14) Prior to performing the following procedure, remove the top cover, the rear panel and audio board. Cut off the tie band fixing the harness. CN811 Disconnect the harness from connector CN811 on the power supply board respectively.
Page 7
2/17/2019 RX-8010RBK/ RX-8012RSL Removing the power transformer (See Fig.17) Prior to performing the following procedures, remove the top cover. Power Power transformer supply board Unsolder the two harnesses connected to the power board transformer. Disconnect the harness from connector CN55 and CN56 on the power transformer board.
Page 8
2/17/2019 RX-8010RBK/ RX-8012RSL Front panel assembly Removing the system control board / Operation switch panel power switch board (See Fig.20 to 22) Prior to performing the following procedure, remove the top cover and the front panel assembly. Pull out the volume knob on the front side of the front panel and remove the nut attaching the system control board.
Page 9
2/17/2019 RX-8010RBK/ RX-8012RSL Adjustment method Tuner section 1.Tuner range 87.5MHz~108.0MHz AM(MW) 522kHz~1629kHz (LW) 144kHz~288kHz Power amplifier section Adjustment of idling current Measurement location B2204-B2205(Lch) , B2213-2214(Rch) Adjustment part VR787(Lch) , VR788(Rch) Attention This adjustment does not obtain a correct adjustment value immediately after the amplifier is used (state that an internal temperature has risen).
Page 10
2/17/2019 RX-8010RBK/ RX-8012RSL Self-diagnose function 1. Detection of abnormal power supply and voltage When the power is turned ON, if an abnormality is detected during the signal input at the A/D port (IC901, pin 2-5, 7) for one second continuously, the status will become STANDBY mode immediately.
Page 11
2/17/2019 RX-8010RBK/ RX-8012RSL 4. Self-diagnose To enter the self-diagnose mode, put the power plug in the socket while pressing SETTING key and UP key together simultaneously, then turn the power ON. With the UP/DOWN key operation, DSP microcomputer, ROM No.of system microcomputer as well as working status of DSP can be displayed for five seconds.
Page 12
2/17/2019 RX-8010RBK/ RX-8012RSL Description of major ICs AK4112AVF (IC551) : Digital audio receiver 1.Pin layout 2.Pin function Pin Name Function DVDD CM0/ CDTO DVDD Digital power supply pin, 3.3V DVSS CM1/ CDT1 DVSS Digital ground pin TVDD OCKS1/ CCLK...
Page 14
2/17/2019 RX-8010RBK/ RX-8012RSL 3. Pin function AK4527(1/2) Pin name Function SDTO Source select pin SDOS "L" : Internal ADC output, "H" : DAUX input ORed with serial control register if P/S="L". MCKO Clock frequency select pin OCKS "L" : MCLK, "H" : MCLK/2.
Page 15
2/17/2019 RX-8010RBK/ RX-8012RSL 3.Pin function AK4527(2/2) Pin Name Function VREFL Negative voltage reference Input pin, AVSS VCOM Common voltage output pin,AVDD/2 Large external capacitor around 2.2uF is used to reduce power-supply noise VREFH Positive voltage reference input pin,AVDD AVDD...
Page 17
2/17/2019 RX-8010RBK/ RX-8012RSL BU2092(IC402) : Port expander 1.Terminal Layout DATA CLOCK CONTROL CIRCUIT 2.Pin Function Symbol Function Pin No. Connect to GND DATA Serial Data input CLOCK Shift Clock of Data Latch Clock of Data 5~16 Q0~Q11 Parallel Data Output...
Page 18
2/17/2019 RX-8010RBK/ RX-8012RSL LA1838(IC102) : FM AM IF AMP&detector, FM MPX decoder 1. Block Diagram DECODER RF.AMP ANIT-BIRDIE MUTE BUFF STEREO P-DET AM IF PILOT 384KHz COMP S-METER AM/FM S-CLRVE S-METER IF-BUFF TUNING STEREO DRIVE DRIVE FM IF 2. Pin Function...
Page 19
2/17/2019 RX-8010RBK/ RX-8012RSL MB90088 (IC203) : On screen display controller 1.Terminal Layout AVss YOUT VOUT AVcc COUT IOUT SCLK TEST BOUT HSYNC ROUT VSYNC GOUT EXHSYN EXVSYN 2.Block Diagram Serial Input Each Control, Data SCLK Control EXHSYN H/V Separate...
Page 20
2/17/2019 RX-8010RBK/ RX-8012RSL 3.Functions Symbol I/O Function Lux signal Input terminal for Superinpause indication Composite video signal input terminal for Superinpause indication Contrast signal input terminal for Superinpause indication Analog power supply terminal AVcc IOUT Color (Lux) signal output terminal...
Page 21
2/17/2019 RX-8010RBK/ RX-8012RSL NJM4580DD (IC301) : LPF, Mic and H.phone Amp. 1.Terminal layout A OUT A -IN B OUT A +IN B -IN B +IN (TOP VIEW) 2.Block diagram INPUT OUTPUT NJU7241F33(IC411) : Voltage regulator PIN FUNCTION 1. GND 2.
Page 22
2/17/2019 RX-8010RBK/ RX-8012RSL PCM2702E-X (IC410) : Digtal / Analog converter 2. Block diagram 1.Pin layout VccP USB packet audio data DGNDC data AGNDP FIFO Low-pass WRCLK VccL VOUTL USB I/F Filter Multi-level Oversampling VBUS DGND AGNDL Delta-Sigma VCOM DGNDU...
Page 23
2/17/2019 RX-8010RBK/ RX-8012RSL SAA6588 (IC191) : RDS detector 2.Pin Function 1.Terminal Layout Symbol Function LVIN Multi-path rectifier output Multi-path detector output MPTH MPTH TCON Test control input pin TCON SCOUT Oscillator output OSCO OSCO Vref Oscillator input OSCI OSCI...
Page 28
2/17/2019 RX-8010RBK/ RX-8012RSL TC7S04FU (IC502, IC503) :CMOS Inverter IN A OUT Y TC7SET32FU (IC582) : Z-Input or gate IN B IN A OUT Y W24L010AJ-12 (IC511) : CMOS static RAM 1. Pin layout 2. Block diaglam DECODER CORE ARRAY...
Page 29
2/17/2019 RX-8010RBK/ RX-8012RSL UPD784215AGC132(IC581) : Unit CPU 1.Pin layout 2.Pin function Pin No. Symbol Function Non connect Power supply terminal Connecting the crystal oscillator for system main clock Connecting the crystal oscillator for system main clock Connect to GND...
Page 30
2/17/2019 RX-8010RBK/ RX-8012RSL VICTOR COMPANY OF JAPAN, LIMITED AUDIO & COMMUNICATION BUSINESS DIVISION PERSONAL & MOBILE NETWORK BUSINESS UNIT. 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan Printed in Japan (No.20979) 200105(V) Digitized in Heiloo the Netherlands Not for sale!
2/17/2019 RX-8010RBK/RX-8012RSL PARTS LIST [ RX-8010RBK ] [ RX-8012RSL ] * All printed circuit boards and its assemblies are not available as service parts. Area suffix E ----------- Continental Europe EN ------------ Northern Europe - Contents - Exploded view of general assembly and parts list...
2/17/2019 RX-8010RBK/RX-8012RSL Exploded view of general assembly and parts list Block No. Power trans board I/O board Power trans board Power/Fuse board Speaker board Relay board Power supply Audio Main board board board power switch board Front key &...
Page 34
2/17/2019 RX-8010RBK/RX-8012RSL Parts list (General assembly) Parts list (General assembly) Block No. M1MM Block No. M1MM Item Parts number Parts name Q'ty Description Area Item Parts number Parts name Q'ty Description Area LV10469-003A FRONT PANEL RX-8010RBK QYSBST3006Z T.SCREW H.S BKT-CHASSIS...
Page 35
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 801 QFN82CK-104 M CAPACITOR .10MF 10% 160V D 825 1SS133-T2 SI DIODE C 802...
Page 36
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Main board) Block No. 01 Item Parts number Parts name Remarks Area R 864 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W R 865 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W R 866 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W...
Page 37
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Front board) Block No. 02 Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area BK400 LV42092-001A FL HOLDER(R) D 490 SLR-342VC-T (DIRECT) BK401 LV42093-001A FL HOLDER(L) D 491 SLR-342VC-T...
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Front board) Block No. 02 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R 445 NRSA63J-103X MG RESISTOR S 422 QSW0683-001Z PUSH SWITCH (LEVEL ADJUST) R 446 NRSA63J-103X...
Page 39
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Power board) Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 701 QTE1V06-106Z E CAPACITOR C1808 QETN1CM-107Z E CAPACITOR 100MF 20% 16V C 702 QTE1V06-106Z...
Page 40
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Power board) Block No. 03 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area Q 712 KTC3200/GL/-T TRANSISTOR R 726 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W Q 761 2SD2390/OPY/-F6...
Page 41
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Power board) Block No. 03 Item Parts number Parts name Remarks Area R1793 QRE141J-183Y C RESISTOR 18K 5% 1/4W R1795 QRE141J-473Y C RESISTOR 47K 5% 1/4W R1801 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W R1802...
Page 42
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Input board) Block No. 04 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 201 QETN1HM-475Z E CAPACITOR 4.7MF 20% 50V C 309 NCS31HJ-101X C CAPACITOR C 202...
Page 43
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Input board) Block No. 04 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area CN244 QGA2501F1-04 CONNECTOR IC303 BA15218F-XE CN311 QGB2510K1-14 CONNECTOR IC304 BA15218F-XE CN313 QGB2510K1-13 CONNECTOR IC371 TC9163AF-X...
Page 44
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Input board) Block No. 04 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area R 211 NRSA63J-473X MG RESISTOR R 325 NRSA63J-471X MG RESISTOR R 212 NRSA63J-331X MG RESISTOR...
Page 45
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Input board) Block No. 04 Item Parts number Parts name Remarks Area R1321 NRSA63J-104X MG RESISTOR R1322 NRSA63J-104X MG RESISTOR R1323 NRSA63J-102X MG RESISTOR R1324 NRSA63J-103X MG RESISTOR R1329 NRSA63J-0R0X MG RESISTOR R1330 NRSA63J-0R0X...
Page 46
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (DSP board) Block No. 05 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area C 571 NCB31HK-103X C CAPACITOR C2308 NEA71EM-475X E CAPACITOR C 573 NCF31CZ-104X C CAPACITOR C2347...
Page 47
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (DSP board) Block No. 05 Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area C2601 NCB31CK-104X C CAPACITOR R 575 NRSA63J-432X MG RESISTOR C2602 NCB31CK-104X C CAPACITOR R 576...
Page 48
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (DSP board) Block No. 05 Item Remarks Item Parts number Parts name Remarks Area Parts number Parts name Area R2507 NRSA63J-473X MG RESISTOR R2222 NRSA63J-333X MG RESISTOR R2508 NRSA63J-473X MG RESISTOR R2225 NRSA63J-104X MG RESISTOR...
Page 49
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Micon board) Block No. 06 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area QCZ9104-472 C CAPACITOR 4700PF D 51 1SR35-400A-T5 DIODE C 51 QFLC2AJ-472Z M CAPACITOR 4700PF 5% 100V...
Page 50
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Micon board) Block No. 06 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area Q 903 KRC105M-T D TRANSISTOR R 967 QRE141J-103Y C RESISTOR 10K 5% 1/4W Q 904...
Page 51
2/17/2019 RX-8010RBK/RX-8012RSL Electrical parts list (Tuner board) Block No. 07 Item Parts number Parts name Remarks Area Item Parts number Parts name Remarks Area AT101 QNB0014-001 ANT TERMINAL Q 102 2SC535/BC/-T TRANSISTOR BK 1 LV31618-001A SHIELD BKT Q 103...
Page 52
2/17/2019 RX-8010RBK/RX-8012RSL < M E M O > 3-22 Digitized in Heiloo the Netherlands Not for sale!
2/17/2019 RX-8010RBK/RX-8012RSL Packing materials and accessories parts list Block No. Block No. A2~A6 (Packing) Parts list Block No. M2MM Item Parts number Parts name Q'ty Description Area QPA02503505P POLY BAG FOR INST LV20989-011A PACKING CASE RX-8010RBK LV20989-014A PACKING CASE...
Page 54
2/17/2019 RX-8010RBK/ RX-8012RSL Block diagrams Signal I/O block section Main section LVA10220-1 LVA10221-1 CN731 CN732 LVA10221-2 Q761 L ch Q763 RY831 SPK1 CN244 CN242 S Video LVA10219-5 Q762 RY832 SPK2 R ch Q764 CN200 CN204 CN206 LVA10220-2 Video LVA10219-4...
Page 55
2/17/2019 RX-8010RBK/ RX-8012RSL Video section Video input section LVA10219-3 LVA10219-4 DVD F TV/DBS DATA TV/DBS IC 203 DATA/CLK VCR1 REC MON Y/C OUT VCR1 P.B Y/C SEP SOUTCE IC 202 SELECTOR VCR1 VCR2 REC IC 201 IC 371 MON Y/C IN VCR2 P.B...
Page 56
2/17/2019 RX-8010RBK/ RX-8012RSL Tuner section System control & FL section LVA10009 LVA10218-1 IC 191 FL DISPLAY D400 TUNER AM/FM DET RF 101 IC102 SYSTEM CONTROLLER MW RF & OSC IC 400 T111 IC102 DATA Audio input section VIDEO AUDIO...
