Panasonic ES-RT51 Service Manual

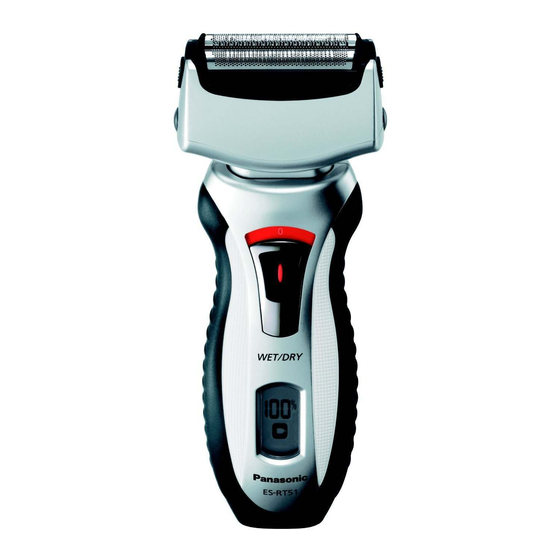

Rechargeable shaver

Hide thumbs Also See for ES-RT51:

Download this manual

Please file and use this manual together with the service manual for Model No. ES7109, ES7102 and

ES7101, Order No. SD0709E54CE.

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Exploded View and Replacement Parts List ------------ 3

Model No.

North America

PAGE

bution is a violation of law.

Order Number SD1006U42AE

Rechargeable Shaver

ES-RT51

ES-RT31

PAGE

Page 1 TABLE OF CONTENTS PAGE PAGE 1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Exploded View and Replacement Parts List ------------ 3 © Panasonic Electric Works Co., Ltd. 2010. All rights reserved. Unauthorized copying and distri- bution is a violation of law.
Page 2 1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.
Page 3 3 Exploded View and Replacement Parts List Model No. : ES-RT51 Exploded View for ES-RT51...
Page 4 Model No. : ES-RT51 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-RT51 WES8044X7158 PROTECTIVE CAP 1 [BG] WES9085PC OUTER FOIL 1 (only for USA) WES9085C OUTER FOIL 1 (only for CANADA) WESRT60S0047 OUTER FOIL FRAME...
Page 5 Model No. : ES-RT31 Exploded View for ES-RT31...
Page 6 Model No. : ES-RT31 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES-RT31 WES8044X7158 PROTECTIVE CAP 1 [BG] WES9085PC OUTER FOIL WESRT60S0047 OUTER FOIL FRAME 1 [BG] WES9064PC INNER BLADE WESRT60L1007 MOTOR ASSEMBLY 1 [BG] WES7047H3268 FOIL RELEASE BUTTON 2 (2PCS/PK), [BG] WES7046L1086...
