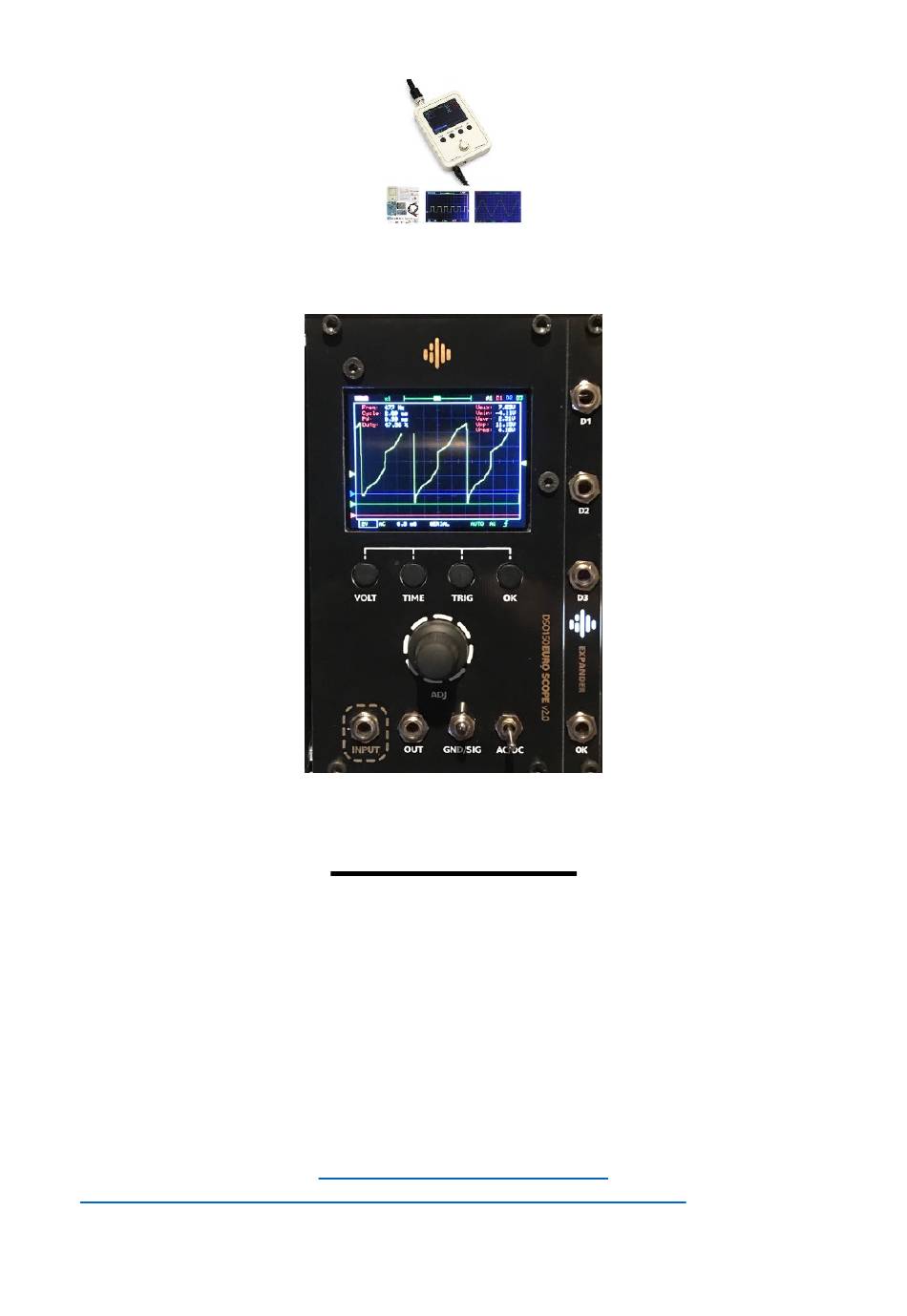

Plum Audio - DSO 150 EuroScope v2.0 - Build Guide
Deign by Shay Shezifi
10.02.19
!
Jye Tech DSO 150
Eurorack Conversion Kit MKII
Build Guide
DSO 150 Is a cheap mini oscilloscope from JYE TECH.
This conversion kit lets you the ability to convert it to Eruorack module and contains
two parts:
- 14 Hp Panel
- Conversion Board
- Optional: Expander 2Hp PCB+Panel
This is an easy DIY project, just follow this instructions guide.
Assembling Video Playlist:
https://www.youtube.com/watch?
v=Akz4jSZyOQc&list=PL2KBIbSMnGOh_Mu7Z_c3bYFIhDCGHZpcL
Advertisement
Related Manuals for JYE Tech DSO 150
Summary of Contents for JYE Tech DSO 150
- Page 1 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 Jye Tech DSO 150 Eurorack Conversion Kit MKII Build Guide DSO 150 Is a cheap mini oscilloscope from JYE TECH. This conversion kit lets you the ability to convert it to Eruorack module and contains two parts: ...
-
Page 2: Bill Of Materials
Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 Bill Of Materials Part/Value Source Notes DSO150 Eurorack Pusherman panel mk2 DSO150 Conversion Pusherman Board mk2 Original Dso150 Banggood There’s other places to buy this... - Page 3 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 0.33uF – Tantalum Mouser Mouser Part: 581-TAJR334K020R Capacitor (SMD 0805) 0.1uF – Ceramic C2,C3, Tayda Capacitor <25v (SMD Mouser 0603/0805) AliExpress 10uF Electrolytic Mouser Capacitor (SMD 4mm dia) <25v...
- Page 4 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 Phase 1: Assembling DSO 150 KIT Basically, you need to follow the instructions in the user manual that come with your DSO150 DIY Kit you need to do only the steps below...
- Page 5 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 Phase 2: Assembling Conversion Board Assembling Video Part 3: https://youtu.be/UtAiYVECAHI 1. Solder all conversion board components (Regulator, Capacitors, Resistors, Opamp, Diodes, Power Header, 3 Pin headers), Short with jumper 2 top pins. ...
- Page 6 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 2. Put in place interface parts (do not solder them yet) - Thonkiconns - Toggle Switches (SW2, SW3) Connect the board to power source and check for 9v (+/- 10%) at J2 ...
- Page 7 (BNC Connector). The round pad Need to be wired to test signal tone (J8 @ DSO 150 Main Board). 2. Mount the conversion board to the DSO150 mainboard with 2 3M 6mm Standoffs spacers, Do Not forget to put in place the pin headers...
- Page 8 The test signal tone is normalised to the input jack if the jumper set to “Test Tone”, so you don’t need to plug anything to the audio input for calibration, just connect your module to a power supply and follow the DSO 150 manual calibrations instructions (after calibration you can move the jumper to bottom position).
- Page 9 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 5. Mount the panel to DSO150’s Mainboard with two 3M 12mm-16mm ...
- Page 10 Plum Audio - DSO 150 EuroScope v2.0 - Build Guide Deign by Shay Shezifi 10.02.19 Enjoy Your New DSO 150 EuroScope v2.0! www.plum-audio.com...
