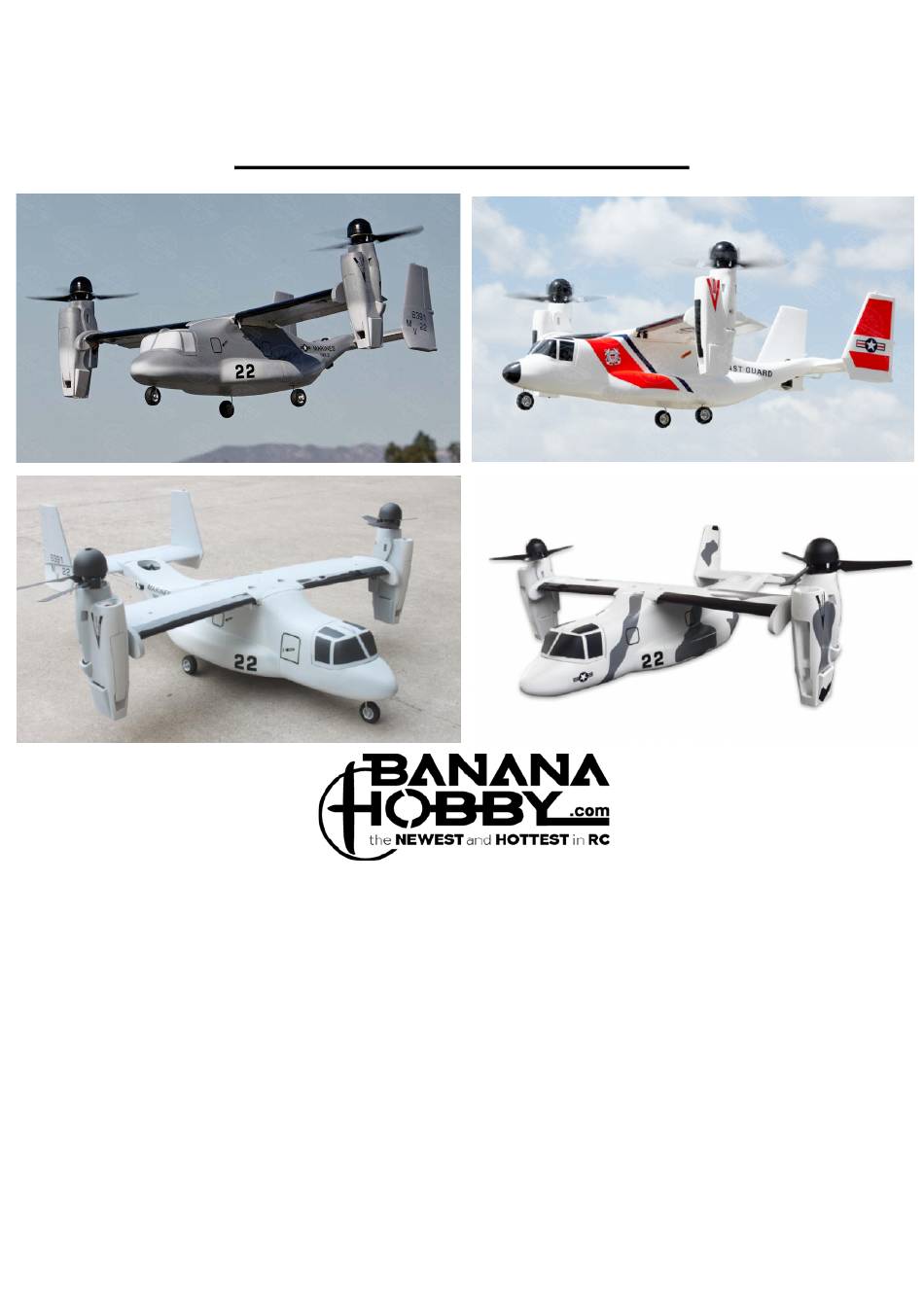

BLITZRCWORKS V-22 OSPREY
PILOT'S OPERATING MANUAL
Manual Revision 2.1
Manual Revised: August 2019, V.2.1
Banana Hobby would like to thank you for your purchase of the all-new V-22 VTOL Osprey!
This is a very exciting time in our hobby, and we present to you, the first RTF/ARF V-22
with VTOL capabilities! Advanced technology allows this RC replica to be operated on a
basic 5 channel transmitter with a toggle switch or slider that permits VTOL flight to forward
flight transition. It's the first of its kind to have breakthrough stability in hover and forward
flight modes. Plus, great performance and scale appearance! The RTF/ARF models come
partially assembled to allow for a quick and easy build. Please read the instructions below.
Happy flying!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLITZRCWORKS V-22 OSPREY and is the answer not in the manual?

Questions and answers

Related Manuals for Banana Hobby BLITZRCWORKS V-22 OSPREY

Summary of Contents for Banana Hobby BLITZRCWORKS V-22 OSPREY

  • Page 1 Manual Revision 2.1 Manual Revised: August 2019, V.2.1 Banana Hobby would like to thank you for your purchase of the all-new V-22 VTOL Osprey! This is a very exciting time in our hobby, and we present to you, the first RTF/ARF V-22...

  • Page 2: Table Of Contents

    Table of Contents Safety Notices ................................... 1 Model Specifications ................................ 2 Package Contents ................................2 Assembly and Pre-Flight Check ............................2 Function Check ................................. 6 Center of Gravity Check ..............................9 Flight ....................................10 Maintenance ................................... 11 Spare Parts List ................................12 1: Safety Notices This product is not a toy.

  • Page 3: Model Specifications

    2: Model Specifications (ARF) • Wingspan: 700mm (Without Motor Nacelles) • Length: 848mm • Weight: 1150g (Without Battery) • Motor: (2) 3510 brushless motors, (1) 2520 brushless motor (EDF) • Battery: 4S 2200MAH - 2800MAH (Flight time 3-7 minutes, varies on battery/flying style) •...
  • Page 4 The FCB will have the wires from the model pre-connected, leaving only those for the receiver and the motors (match RM to RM and LM to LM). Your Banana Hobby V-22 wires should be labeled with tab names on the wires for proper configuration. Be sure to identify them all correctly.
  • Page 5 NOTE: Rear Motor to ESC Wire Colors may be reversed Connector Identification Chart when plug is in the correct orientation. This is normal. Connector Details Meaning R-Motor Right Motor L-Motor Left Motor Fan-Motor Tail EDF Motor Elevator-Servo Tail Elevator Servo Aileron-Servo Wing Aileron Servo L-Rotation...
  • Page 6 4.5 Install the landing gears as shown below. NOTE: Landing gear is pressure fitted. If you decide to use them, simply press the landing gears into their respective slots. 4.6 Install the Elevator pushrod included with your V-22. NOTE: There may be a larger mounting slot for the pushrod on the servo arm and control horn.

  • Page 7: Function Check

    5: Function Check Standard pre-flight checks, make sure to follow these procedures: 5.1 Check if the propeller has been installed properly. 5.2 Lower throttle settings (right stick for Mode 1 or left stick for Mode 2) and then power on your transmitter.
  • Page 8 VTOL Mode NOTICE: Motor Nacelles will move forward and backward in VTOL mode. Standard Flight – Airplane Mode Internal FCB Unit is still active for stabilization. 5.7 When applying throttle, the left and right propellers will rotate as shown in the photo below. If the direction is incorrect, please turn everything off and switch two of the three wires between the ESC and motor.
  • Page 9 5.8 Double check the nacelle rotation by using the CH. 5 function. Be sure the Nacelle's achieve proper rotation levels. 5.9 Check channels 1, 2 and 4 for proper response. Be sure the control surfaces are neutral when not in use. Remember, make sure the surfaces are not reversed! 5.10 Double check the entire fuselage assembly as well as the tail section prior to flight.

  • Page 10: Center Of Gravity Check

    6: Center of Gravity Check The following illustration provides details for the Center of Gravity (CG). The correct CG range is between 5-30mm aft of the center of motor nacelle as shown in the photo below. If using a battery with a larger/smaller capacity, please adjust the CG by adjusting the position of Li-PO battery.

  • Page 11: Flight

    7: Flight If you are an experienced pilot, flight can be achieved indoors or outdoors due to the V-22’s VTOL capabilities. We suggest to choose a room measured at 20ftx20ftx20ft for VTOL mode ONLY. An outdoor flying area with calm weather is best for maiden flights. WARNING: Please organize the wires after the battery is put into the fuselage to avoid any movement issues with the motor nacelles.

  • Page 12: Maintenance

    8: Maintenance 8.1 To power down, make sure to unplug the battery first before turning off the transmitter. Doing so will help to prevent the receiver from potentially connecting with another system. ALWAYS unplug the aircraft battery FIRST before powering down the transmitter! 8.2 Check the propellers for any damage and to be sure they are still secured.

  • Page 13: Spare Parts List

    9: Spare Parts List Part Part Name Description Photo Number 15201 Fuselage Main Fuselage Body 15202 Main Wing Main Wing Vertical Stabilizer and 15203 Tail Section Horizontal Stabilizer (Part listing may vary) Left and Right Motor Left and Right Compartments 15204 Motor (Additional parts may...
  • Page 14 15206 Canopy Painted Canopy Landing Gear 15207 Front and Main Gear Set Left and Right Blade Set 15208 Propeller (three pieces each side) Propeller Aluminum Propeller 15209 Collet Collet 15210 Tail EDF Tail EDF Set Rotating Motor 15211 Rotating Axis Parts Axis...
  • Page 15 14.8V 2200mah 25C 15212 Li-Po Battery Lithium Polymer Battery Brushless D3510-KV800 (Main 15213 Motor Motors) Tail Brushless D2627-KV2600 (Tail 15214 Motor Motors) With 180mm Lead (For 15215 9g Servo Aileron) With 320mm Lead (For 15216 9g Servo Elevator) 15217 Brushless ESC...
  • Page 16 17g Servo for Rotating 15218 17g Servo Axis Flight Onboard Flight 15219 Controller Controller/Stabilizer 15220 Decals Decal Sheet...
