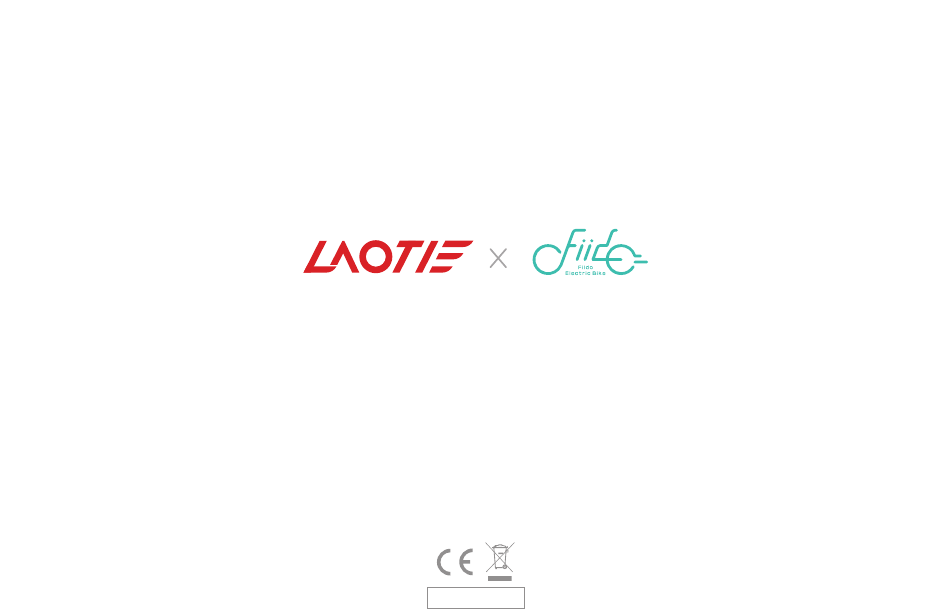

- Page 1 D4s Pro Electric Bike User Manual Made in China...
- Page 2 D4s Pro Electric Bicycle Catalogue 1．Note 2．Instruction Illustration 3．Installation Instruction 4．Folding instructions 5．Specifications...
- Page 3 1．Note This manual includes important safety performance and service information. Please make sure you have read the following warnings before the first time you use our product. a) If you lend your electric bicycle to other people, please let the user read this manual, it could be helpful to decrease the risk of accident. b) Please wear the suitable and safe helmet before riding, please wear the clothes with fluorescent and reflective stripes when you ride at night.

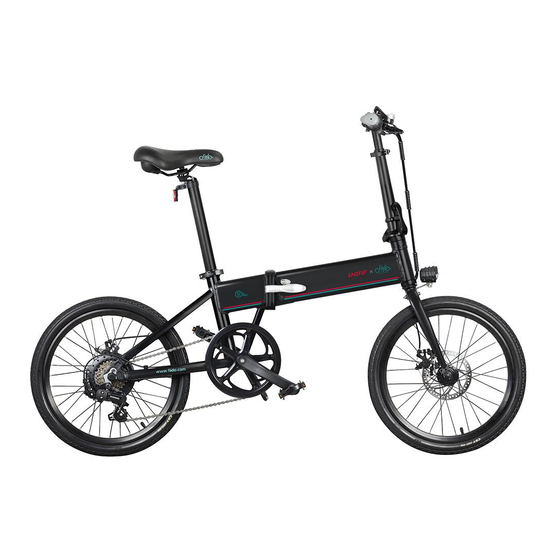

- Page 4 2． Instruction Illustration 1.Seat tube 5.Valve 9.Controller box 13.Crank 17.Folding system 2.Quick lock 6.Folding system 10.Chain 14.Handle bar 18.Headlight 3.Brake disc 7.Battery box 11.Chain wheel 15.Quick lock 19.Brake disc 4.Motor 8.Charge port 12.Pedal 16.Stem...
- Page 5 １ 1.Brake power off system 10.Speed 4.Power on/off button(Long press on or off) 7.Power off brake 2.Light/horn button 11.Electric assist gear 5.Power adjustment 8.Speed-up rotating handle 3.Horn 12.Use mileage 6. Speed regulation 9.Battery Level (Note:After the car is stationary, it does not run for 10 minutes to enter the sleep mode and automatically shut down) 13.Battery charging port (located below the main beam of the frame) 14.Pedal...
-
Page 6: Installation Instruction
3．Installation Instruction 1.Unfold the frame,lock the frame folding handle,and lock the frame folder safety clasp. 2. Fold the riser to the upper end,lock the riser folding handle,adjust the riser safety hook to the tightening state,and adjust the position of the T handle. 3.Open the clip on the seat tube clamp and insert the seat tube into the position within the marking line on the seat tube. -
Page 7: Folding Instructions
4．Folding instructions Step 1. Open the quick lock on the head end, to let the handle be perpendicular to the care frame. Step 2. Open the quick lock on the Stem, lower the riser,as well as locking the quick lock. Step 3. -
Page 8: Specifications
5．Specifications Name Specification Brand LAOTIE X FIIDO Model D4s Pro Pure Electric System Support Max Load weight 120kg Maximum Speed 25km/h Maximum Range Power assisted models up to 90KM Battery High quality lion battery 36V 11.6Ah Battery adaptation DC 42V 2A...
