- Page 1 STINSON OWL-LITE ARROW BOARD MODEL NO. TC12-3060 USER MANUAL April 30, 2019...
-
Page 2: Table Of Contents
Contents GENERAL DESCRIPTION ……………………………………………………………………………………………………………………..3 MODEL TABLE ………………………………………………………………………………………………………………………………….4 INSTALLATION ………………………………………………………………………………………………………………………………….5 CAB CONTROLLER ……………………………………………………………………………………………………………………………..8 ARROW BOARD CONTROLLER…………………………………………………………………………………………………………….9 OPERATING INSTRUCTIONS ………………………………………………………………………………………………………..9 TROUBLE SHOOTING....………………………………………………………………………………………………………… 9 SPECIFICATION………………………………………………………………………………………………………………………………… 12 SPARE PARTS …………………………………………………………………………………………………………………………………12 WARRENTY …………………………………………………………………………………………………………………………………15 Figure 1 Installation Electrical ........................6 Figure 2 Terminal Block Wiring ........................7 Figure 4 Cab Controller .......................... -
Page 3: General Description

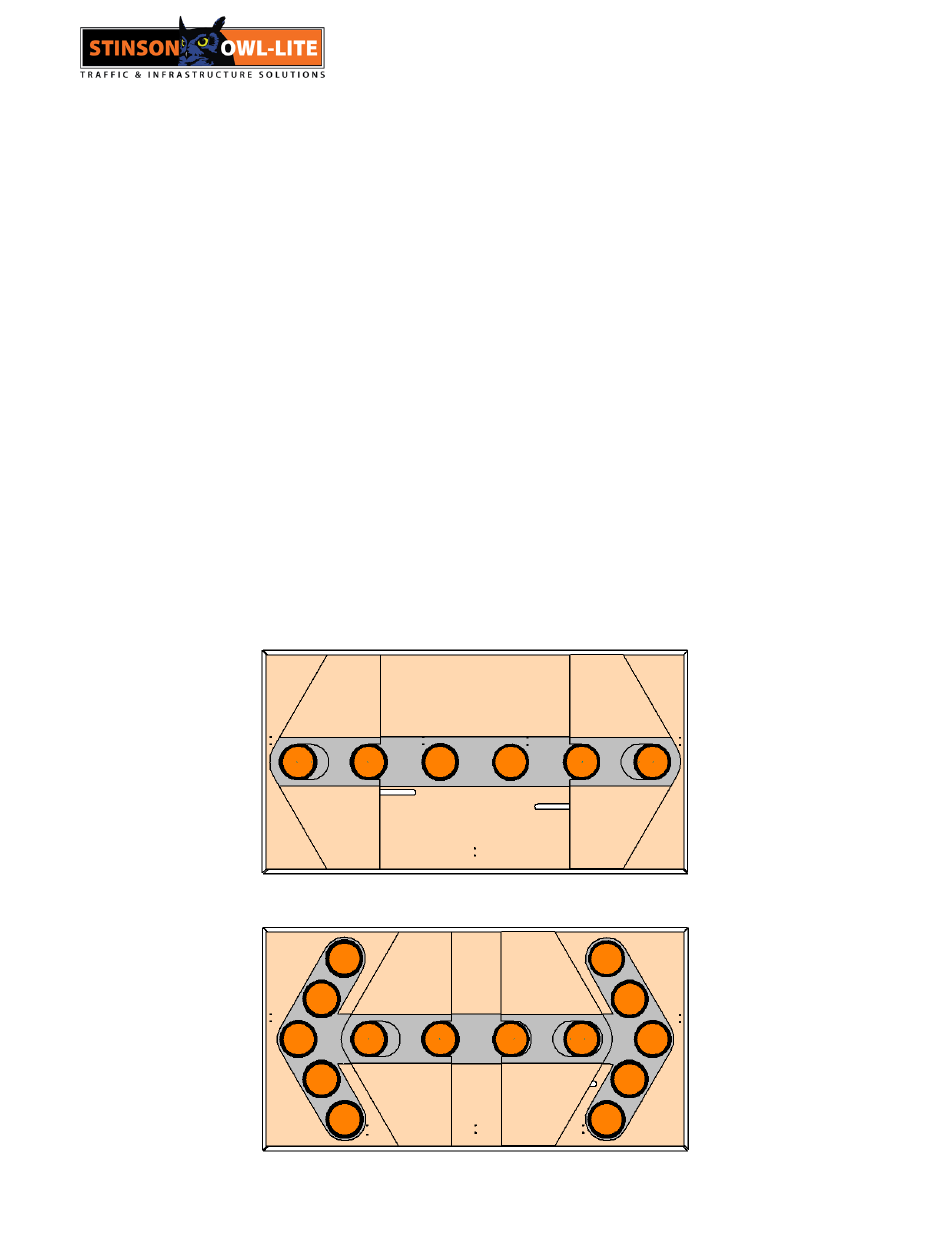

GENERAL DESCRIPTION Stinson Arrow Board model no. TC12-3060 conforms to MOT specification for TC12 Arrow Boards The standard configuration is a roof rack system allowing the Arrow Board to stand up (vertically) while deployed or lay flat (horizontally) via a motor driven actuator. The actuator is driven via an up/down switch on the Cab Controller. -
Page 4: Model Table
A Cable, Cab Controller and Up/Down Actuator are typically supplied. Standard cable lengths are 30 ft. For custom cable lengths please contact Customer Service Stinson Equipment will factory install the rack. For rack dimensions and drawings, please see Stinson Customer Service. 1-800-561-6639 AUTO2 and MAN versions are typically vertically installed in a fixed position. -
Page 5: Installation
DESCRIPTION MODEL NO. CAB CONTROLLER FOR AUTO1 TC12-3060 BEACON SWITCH AVAILABLE CAB CONTROLLER FOR AUTO2 CAB CONTROLLER FOR MAN TC12-4848 Table 2 CAB CONTROLLERS INSTALLATION The electrical installation is shown in figure 1. For field installations, the user shall provide necessary AWG cable. - Page 6 Figure 1 Installation Electrical April 30, 2019...
- Page 7 Figure 2 Terminal Block Wiring April 30, 2019...
-
Page 8: Cab Controller
CAB CONTROLLER The top row of toggle switches control Arrow Board LEDs and actuators. To activate the LEDs the BAR switch is moved to the ON or to the UP position. The bar row is now activated. The center LED will flash approximately 40-50 times per second. The left and right LEDs and actuators can now be deployed by moving the left and right toggle switches to the UP or ON position. -
Page 9: Arrow Board Controller
ARROW BOARD CONTROLLER The Arrow Board Controller is located inside the Arrow Board. Signals from the Cab Controller activate actuator relays and Arrow Board LEDs. The on and off timing of the LEDs is controlled by electronic circuitry. A photo sensor is located on the printed circuit board. A clear window located on the rear panel of the Arrow Board allows light to illuminate the photo cell. - Page 10 For replacement parts, please see parts list. You can contact our customer service for assistance in securing a damaged component. SYMPTON CAUSE The Cab Controller does not operate LEDs or actuators. There is no LED indication on the The Arrow Board is not connected to the Cab Controller Battery or the Battery polarity is reversed.
- Page 11 Table 3 TROUBLE SHOOTING GUIDE Figure 4 Fuse Legend April 30, 2019...
-
Page 12: Specification
SPECIFICATION See Stinson Customer Service for specification details 1-800-561-6639 nvironmen Figure 5 Outline DWG SPARE PARTS See Stinson Customer Service for spare part service 1-800-561-6639 April 30, 2019... - Page 13 April 30, 2019...
- Page 14 Figure 6 BOM April 30, 2019...
-
Page 15: Warrenty
The costs of labour associated with corrections under this warranty shall be reimbursed at a rate deemed reasonable by STINSON if such labour is not performed by STINSON factory approved personnel. Tampering with the serial number or posted safety and operating instructions may constitute a breech of this warranty. - Page 16 130 Creditstone Road Concord Ontario Canada L4K 1P2 Ph ( 905 ) 669-2360 Fax ( 905 ) 669-3537 Company Address Phone Product Serial # Date Purchased 130 Creditstone Road Concord Ontario Canada L4K 1P2 Ph ( 905 ) 669-2360 Fax ( 905 ) 669-3537 Company Address Phone...
