- Page 1 Schaerer Coffee Art C User Manual | 03.2021 | v04 Models: SAP Material #: 040381-00051EUS 1340900015 040381-00052EUS 1340900016 040381-00053EUS 1340900017 040381-00071EUS 1340900023...
- Page 2 www.schaererusa.com Copyrights Published by: SEB Professional North America, Tustin California Version: Version 04 / March 2021 Designed and edited by: SEB Professional North America, Tustin California © Copyright: SEB Professional North America, Tustin California All rights reserved, including translation into other languages. This manual may not be copied, photocopied or distributed, in whole or in part, by any means, nor transmitted electronically, without the publisher’s written consent.
- Page 3 www.schaererusa.com Cautions & Warnings Cautions & Warnings USE CAUTION WHILE OPERATING AND CLEAN- ING THE COFFEE ART PLUS MACHINE WARNING: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE SIDE OR BACK PANELS FROM THIS MACHINE. NO USER SERVICE- ABLE PARTS INSIDE. REFER SERVICING TO AUTHORIZED SERVICE PERSONNEL ONLY.
-
Page 4: Table Of Contents
www.schaererusa.com Table of Contents Table of Contents Table of Contents Introduction Machine Overview Machine Accessories Utility Hook-Up Requirements Operation General Operation Tips During Operation Maintenance Daily Cleaning Hopper Cleaning Error Messages How to Get Help Warranty Information User Manual | 03.2021 | v04... -
Page 5: Machine Overview

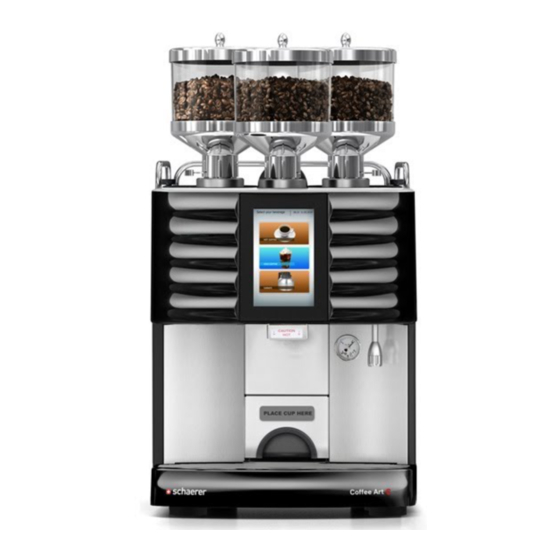

www.schaererusa.com Introduction | Machine Overview Machine Overview Machine General Overview Three Bean Hoppers up to 1 kg (2.2 lbs.) each Cleaning Tablet Funnel Behind center hopper Service Card Reader 7” Touch Screen Buttons for Hot Water Only for Models: 040381-00052EUS 040381-00053EUS Coffee dispensing spout Hot water spout... - Page 6 www.schaererusa.com Introduction | Machine Overview Touch Screen Time and date indicator Quick Menu. ON / OFF Icon Quick Menu Quick Menu: Access to machine information User Manual | 03.2021 | v04 - 6 -...
- Page 7 www.schaererusa.com Introduction | Machine Overview Touch Screen Blend and beverage type selection Service Menu icon Notes: 1. This icon may be hidden; press & hold the blank area to bring up the icon. 2. When machine is off this icon is called Quick Menu. Go back icon Service Menu Cleaning: Initial the cleaning process...
- Page 8 The cleaning tablet funnel is located behind front center hopper. Use only Schaerer Cleaning Tablets (Item # 9610000116) during the daily cleaning procedure. Refer to pages 17-20 for daily cleaning instructions. Coffee Dispensing Spout(s) The high capacity second coffee dispensing spout can accommondate large tall (64oz) thermos.
- Page 9 www.schaererusa.com Introduction | Machine Overview Grounds Bin The grounds bin is located below the coffee spout. It holds the used grounds which are disposed of after each coffee is brewed. The bin slides straight out from the machine and must be emptied periodically or when prompted on the display.
-
Page 10: Machine Accessories
www.schaererusa.com Introduction | Machine Accessories Machine Accessories User Manual Daily Cleaning Instructions Large Cleaning Brush (Item #3370067409) Coffee Pure Cleaning Tablet (Item #9610000116) To order cleaning supplies please call Parts Town 888.957.1518 or visit https://www.partstown.com User Manual | 03.2021 | v04 - 10 -... -
Page 11: Utility Hook-Up Requirements
www.schaererusa.com Utility Hook-Up Requirements Utility Hook-Up Requirements 2” Side Clearance 3” Rear Clearance 8” Top Clearance 17" 22" 33" 4” Clearance 4” 3” Diameter Access The receptacle (NEMA L6-20R), Hole Located Rear Center of Machine water filter and scale inhibitor can be located either under the counter or top of counter behind 1”... - Page 12 www.schaererusa.com Utility Hook-Up Requirements Under Grounds Kit Requirements DRAFT_1.ai 1 6/16/2017 11:57:29 AM DRAFT_1.ai 1 6/16/2017 11:57:29 AM 3” REAR CLEARANCE Notes: * 3” Diameter access hole is only required if any of the utility hook-ups are located under the counter. * Electrical cord maximum length is 3 feet.
-
Page 13: General Operation
www.schaererusa.com Operation | General Operation General Operation Introduction This chapter describes the basic functions of the coffee machine. Read the instructions carefully to ensure smooth routine operation. Filling Bean Hoppers Only use whole beans in the bean hoppers! Never reach with your hands into the bean hoppers when the machine is switched on. - Page 14 www.schaererusa.com Operation | General Operation Switching the Coffee Machine to Standby Mode If the coffee machine is not used for longer periods, i.e. overnight, it can be switched to standby mode. In this mode, the boiler is not heated and no beverages are available.
-
Page 15: Tips During Operation
www.schaererusa.com Operation | Tips During Operation Tips During Operation Always run the daily cleaning procedure During peek hours, you can dispense into a when prompted by the machine display. carafe or container. Refer to pages 17-20 for details. Empty the grounds bin regularly and when Periodically wipe the machine exterior thor- prompted by the machine display. - Page 16 User Manual | 03.2021 | v04 - 16 -...
-
Page 17: Daily Cleaning
► ► ► Item #3370067409 Item #9610000116 • Use only Schaerer cleaning sup- • When the “Start cleaning” mes- • Press and hold (3-5 seconds) plies for this procedure. sage appears on the screen, fol- the lower left corner of the touch low the machine prompts to initial screen to bring up service menu. - Page 18 • Put back metal shield and slide • Lift dome lid and drop in one coffee grounds from brew unit and coffee grounds bin back into Schaerer cleaning tablet. Close surrounding areas into drip tray. Do place. lid after dropping tablet.
- Page 19 Maintenance | Daily Cleaning Daily Cleaning (Coffee Art C - Duel Dispense) Read and follow the instructions carefully before you begin the daily cleaning procedure. This procedure should be performed on a daily basis or when prompted by the machine display.
- Page 20 • Put back metal shield and slide • Lift dome lid and drop in one coffee grounds from brew unit and coffee grounds bin back into Schaerer cleaning tablet. Close surrounding areas into drip tray. Do place. lid after dropping tablet.
- Page 21 www.schaererusa.com Maintenance | Hopper Cleaning Weekly/As Needed Hopper Cleaning Read and follow the instructions carefully before you begin the hopper cleaning procedure. This procedure should be performed on an as needed basis. Do not clean the bean hoppers in the dishwasher. Do not use abrasive cleaning products.
- Page 22 www.schaererusa.com Maintenance | Hopper Cleaning User Manual | 03.2021 | v04 - 22 -...
-
Page 23: Error Messages
www.schaererusa.com Error Messages Error Messages Display Message Cause Remedy ► Insert grounds container. • The grounds container was removed Grounds container missing (cleaning program, emptying, etc.) If the message persists, call for service. • The limit switch is defective. ► Empty the grounds container and reinsert it. Empty grounds container •... - Page 24 www.schaererusa.com Error Messages Display Message Cause Remedy • Electrical problem between the sensor and ► Call for service. Crit. coffee temp. PC board. • Temperature sensor issue. • Electrical problem between the sensor and ► Call for service. Crit. hot water temp. PC board.
-
Page 25: How To Get Help
www.schaererusa.com How to Get Help How to Get Help Hours of Business Normal Hours During normal business hours, a SEB Professional representative will answer your call directly. In case all lines are busy, please leave a message on our voice mail system according to the instructions that you hear on the voice mail. - Page 26 User Manual | 03.2021 | v04 - 26 -...
-
Page 27: Warranty Information
• Daily cleaning should be performed according to the instructions provided with each machine. Tablets used during the cleaning procedure must be Schaerer Cleaning Tablets. SEB Professional North America reserves the right to rescind warranty coverage in the event that cleaning instructions are not proper followed. - Page 28 www.schaererusa.com Warranty Information The service technician will make an on-site assessment of whether or not a repair is covered under warranty. If the customer has questions about warranty coverage or disputes the technician’s decision that a service call is not covered under manufacturer’s warranty, please contact SEB Professional North America at 888.989.3004 to discuss warranty coverage.
- Page 29 www.schaererusa.com Notes Notes User Manual | 03.2021 | v04 - 29 -...
- Page 30 www.schaererusa.com Notes Notes User Manual | 03.2021 | v04 - 30 -...
