Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAfETy
ELECTRICAL SAfETy
1.1.
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
‰
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets
and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. You
must also read and understand the following instructions concerning electrical safety.
ensure that cables are always protected against short circuit and overload.
9
Regularly inspect power supply cables and plugs for wear or damage and check all connections
9
to ensure that none are loose.
ensure that the voltage marked on the appliance matches the power supply to be
9
used and that the plug is fitted with the correct fuse - see fuse rating at right.
dO NOT use worn or damaged cables, plugs or connectors. Have any faulty item repaired or
8
replaced immediately by a competent electrician.
It is recommended that this heater is wired directly to a fused isolator switch. If, however, a plug
9
is fitted, the following applies:
Fit a new plug according to the following instructions (UK only).
9
a) Connect the GReen/YelloW earth wire to the earth terminal 'e'.
b) Connect the BRoWn live wire to the live terminal 'l'.
c) Connect the BlUe neutral wire to the neutral terminal 'n'.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected,
that the cable restraint is tight.
1.2. GENERAL SAfETy
WARNING! ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
‰
equipment.
Familiarise yourself with the application, limitations and potential hazards of the cleaning tank.
9
WARNING! disconnect the cleaning tank from the mains power before changing accessories, servicing or performing any maintenance.
‰
Maintain the cleaning tank in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
locate the cleaning tank in a suitable work area. ensure that the tank stands on a firm level surface. Keep the area clean and tidy and
9
free from unrelated materials. ensure that the area is well ventilated and has adequate lighting.
Keep the cleaning tank away from heat sources such as heater, sparks, open flames etc.
9
ensure that there are no flammable or combustible materials near the work area.
9
dO NOT use the cleaning tank where there are flammable liquids, solids or gases (e.g. paint solvents).
8
In case of fire in the unit, dO NOT attempt to remove parts, or move the tank. The lid is fused and will close automatically to extinguish
9
the flames.
In case of fire in tank, dO NOT attempt to move unit or remove parts from tank. The lid is fusible and will automatically close
9
extinguishing fire.
When cleaning parts ensure that nothing in the tank, including any parts basket, is in a position that would prevent the lid
9
from closing fully if and when the fusible link activates.
dO NOT use any solvent with a flash point below 140°F. We recommend you use Sealey degreasing Solvent (AK25), contact your local
8
stockist for details.
WARNING! only to be used with water soluble cleaning agents.
‰
WARNING! Always wear approved eye or face protection when operating the cleaning tank.
‰
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
Wear appropriate protective clothing.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from the work area.
9
Avoid accidental starting of the pump by ensuring the unit is unplugged from the mains power when not in use.
9
dO NOT use the cleaning tank for any purpose other than that for which it is designed.
8
dO NOT use cleaning tank in wet or damp locations or areas where there is condensation.
8
dO NOT allow untrained persons to operate the cleaning tank.
8
© Jack Sealey limited

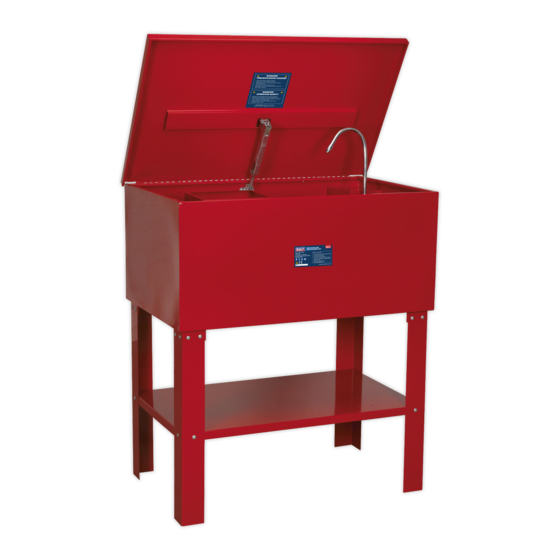

PARTS CLEANING TANK ExTRA dEEP 136LTR
Model no:
Wear protective
gloves
Original Language Version
SM40d.V2
Recommended fuse rating
3 Amp
SM40d.V2 Issue 2 (HF) 15/06/18
