Page 1: Table Of Contents
Ver. 1.1 ＬＶ５６００/ＬＶ７６００ Quick Manual TABLE OF CONTENTS Main unit ・・・・・・・・ 30 Front Panel ・・・・・・・ 2 Multi display Rear Panel ・・・・・・・ 3 Call the Layout（Single setting）・・・・ 31 Basic Setup Call the Layout（Simul setting）・・・・ 32 Measurement Screen ・・・・・・・ 5 Others INPUT Setting ・・・・・・・...

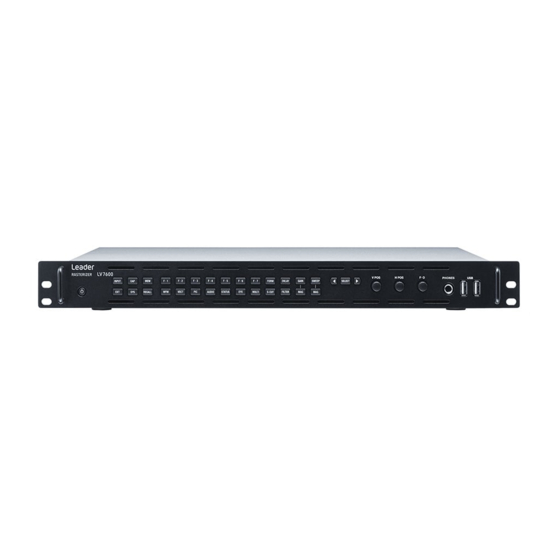

Page 2: Front Panel
ＬＶ５６００/ＬＶ７６００ Quick Manual LV5600 Front Panel V / H position F・D (Function Dial) LCD display Turn to specify a numeric value or to move cursors. In most cases, press to reset Function Key the value to its default value. Mode Key...
Page 3: Rear Panel
ＬＶ５６００/ＬＶ７６００ Quick Manual LV5600 Rear Panel LV5600‐SER05/SER06 IP input Monitor output LV5600‐SER01 / SDI/TMDS(HDMI) SER02 LV5600‐SER03 Digital audio input/output SDI input LV5600‐SER03 Analog audio input/output SDI output SDI input through or test pattern (LV5600‐SER24 LV5600‐SER27 TSG option) ID / IRIS / Tally input/output Standard EXT Sync input Ethernet Preset / Remote...
Page 4  LV5600-SER05 10GbE IP input SMPTE ST 2022-6/SMPTE 2110-20  LV5600-SER06 25GbE IP input SMPTE ST 2022-6/SMPTE 2110-20 ※Option to select either LV5600-SER01 or LV5600-SER02. ※Option to select either LV5600-SER05 or LV5600-SER06.  ＬＶ５６００ License options (Sold separately)  LV5600-SER24 SDI Test signal generator ...
Page 5: Measurement Screen
VPOS HPOS VIDEO WAVEFORM The display of video waveform. displays the waveform of the selected line frame. Line select display, YCbCr display, RGB display, pseudo‐composite display can be selected. VECT VECTOR The display of vector. It can show Line select display, vector marker display, pseudo‐composite, 5‐bar display and CIE chromaticity diagram display (LV5600‐SER23,LV7600‐SER23) PICTURE The display of picture. It can show Monochrome display, marker display, line select display, CINE LITE II, and focus assist (LV5600‐SER25,LV7600‐SER25). AUDIO (LV5600‐SER03,LV7600‐SER03) AUDIO The display of audio. It can show Lissajous, surround, meter, status and Loudness for the signal which is chosen. (Without installing LV5600‐SER03, only meter display available, the other functions are not available.) STATUS STATUS Please press the STATUS button to check the status. It can show event log, data dump and phase difference. EYE PATTERN (LV5600‐SER02) The display of eye pattern. (Without installing LV5600‐SER02, EYE key is not available non‐functional By mode switching, you can check the Jitter by this within this...
Page 6: Input Setting
SDI IN SETUP1 SYS menu, the instrument displays the format in red or an INPUT FORMAT window in the center of the screen. If this occurs, check the settings on the tab, the input signal, and payload ID. SDI IN SETUP1 Formats are displayed in red in the following cases. ・ When the link order is incorrect in 2 sample interleave of 3G (DL) ‐4K or 3G (QL). ・ When the payload ID is not appropriate. The INPUT FORMAT window is displayed in the following cases. ・ When the format of the signal set in "SDI IN SETUP1“ is not matching the input settings in multilink signal. About Payload ID In LV5600 / LV7600, format information is identified by analyzing the SYNC etc. of the input signal, but the payload ID is used for items that cannot be identified by the input signal. For LV5600, either the payload ID of the input signal or the payload ID set on Setup2 can be specified. (It can be set by USE / Not USE of Payload ID SDI IN SETUP2 item of Setup2. ) SDI IN SETUP2 The payload ID that can be set on the LV5600 / LV7600 are as follows. ： Square / 2 Sample Interleave Division ： Interlace / Segmented Frame（PsF） i/PsF Slect Color System ： YCbCr422 / YCbCr444 / RGB444 / XYZ444 Pixel Depth ：...
Page 7: Basic Setting (No.1)
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Basic setting WFM VECT AUDIO STATUS MULTI (No.1) S‐CUT F･D RECALL INPUT VPOS HPOS F･2 ＞ F･3 (SYSTEM SETUP) ＞ (PREV TAB)or (NEXT TAB) can change the tab display) F･2 GENERAL Rotating ＞blue frame to match the item ＞press and check marker or item can be chosen ＞ F･D F･D After setting ＞ F･1 (COMPLETE) GENERAL ●Preset Overwrite When registering presets, select whether to enable overwriting or not. You can prevent presets from being overwritten by disabling Preset Overwrite Disable / Enable...
Page 8: Basic Setting (No.2)
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Basic Setting WFM VECT AUDIO STATUS MULTI (No.2) S‐CUT F･D RECALL INPUT VPOS HPOS ＞ (SYSTEM SEUP) ＞ Use to set up ＞ (PREV TAB) or (NEXT TAB) can change F･2 F･2 F･3 CAPTURE&DISPLAY the tab ＞ Rotating ＞ According to the item you want to set the blue frame ＞ Press (COMPLETE) ＞ Finish F･1 F･D F･D...
Page 9: Function Operation
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Function Operation WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Normally, the function menu is displayed, but disappears when the key of the currently selected mode is pressed. In addition, it can be set to automatic OFF in the GENERAL tab of the SYS menu. Selection function If there are multiple items, press the function key while the pull‐up menu is displayed to switch the items. It is also possible to select directly using a mouse or touch panel. Example of changing the waveform color from WHITE to CYAN ① Press F.4. ⑤ Press F.4 while the pull‐up menu is displayed. ② A pull‐up menu appears. ⑥ It changes from YELLOW to CYAN. ③ Press F.4 while the pull‐up menu is displayed. ⑦ If you do not press F.4, the pull‐up menu disappears ④...
Page 10: Settings For Quick Manual
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Settings for AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS Quick Manual The explanations after this page follow the settings below. Make the following settings in of SYS < F2 . F･2 GENERAL Function Menu ●Mode Key Direct Single Multi/Single Common ●Auto Off Set the time from the last key operation until the function menu disappears automatically. Off / 1 / 2 / 3 / 4 / 5 / 10 / 20 / 30 / 60 [sec] On‐screen Menu ●Auto Off Set the time from the last key operation until the menu display on the screen used for mouse / touch panel operation disappears automatically. Off / 1 / 2 / 3 / 4 / 5 / 10 / 20 / 30 / 60 [sec] ●Operation Key Set On / Off of the operation menu key used for mouse / touch panel operation displayed on the screen. OFF / ON Confirm the settings with F1 (COMPLETE).
Page 11: Waveform Display
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI Waveform display (No.1) S‐CUT F･D RECALL INPUT VPOS HPOS Waveform display color setting (e.g. change to Multi‐color) ・ Press (WAVEFORM) to display the waveform. F･1 (WFM INTEN/CONFIG)＞ F･4 (WFM COLOR) ‐ Select MULTI. Note: If F1 is other than (WFM INTEN / CONFIG), press (WAVEFORM) key twice F･1 Waveform display matrix setting (e.g. Set waveform mode to RGB) ・ F･7 F･1 (up manu)＞...
Page 12 ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI Waveform display (No.2) S‐CUT F･D RECALL INPUT VPOS HPOS Display size variable setting ・ Press (WAVEFORM) to display the video waveform. Note: If the EXTERNAL SYNC waveform is displayed, press F1 (WFM INTEN / CONFIG)> F1 = OFF> F7 (up menu) F･1 F･1 F･7 to return to the normal video waveform display. F･2 Set F2 (GAIN / FILTER)> F2 (GAIN MAG) to X1. Set F1 (GAIN VARIABLE) to VARIABLE. F･2 F･1 Note: When F2 is other than (GAIN / FILTER), press WF (WAVEFORM) twice. F･2 The waveform is scaled by turning FD (FUNCTION DIAL) or the flywheel of the mouse. F･D Press FD (FUNCTION DIAL) to return to X1.
Page 13: Vector Display
ＬＶ５６００/ＬＶ７６００ Quick Manual Vector Display (no.1) F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS COLOR BAR 100% 75% setting ・Press (VECTOR SCOPE) to display the vector scope. VECT F･7 F･2 Change (COLOR SYSTEM)> (COLOR BAR) to 100% or 75% Note: If is not (COLOR SYSTEM), press, (VECTOR SCOPE) twice. F･7 VECT Input 75% COLOR BAR Set COLOR BAR 100% Set COLOR BAR 75% (Off target) VECTOR SCALE Setting ・ Press (VECTOR SCOPE) to display the vector scope. VECT Change (VECTOR SCALE)> (VECTOR SCALE) to AUTO / BT.601 / BT.709 / DCI / BT.2020.
Page 14: Vector Display
ＬＶ５６００/ＬＶ７６００ Quick Manual Vector Display F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (no.2) S‐CUT F･D RECALL INPUT VPOS HPOS Variable scale display setting ・ Press (VECTOR SCOPE) to display the vector scope. VECT Set (VECTOR SCALE)> (VARIABLE SCALE) to ON. F･2 F･5 Note: If is not (VECTOR SCALE), press (VECTOR SCOPE) twice. F･2 VECT F･3 Set (up menu)> (VECTOR GAIN)> (GAIN VARIABLE) to VARIABLE. F･7 F･1 If you need more than 2 times magnification, change F2 (GAIN MAG) to X5 and F3 (GUIDE DISPLAY) to ON. F･2 F･3 The center position can be moved with (VPOS) / (HPOS).
Page 15: (For Uhdtv / Hlg Color Bar)
ＬＶ５６００/ＬＶ７６００ Quick Manual Vector Display F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (no.3) S‐CUT F･D For UHDTV / HLG color bar RECALL INPUT VPOS HPOS １．Input the UHDTV color bar (ARIB STD‐B66). ２．Set the vector scope to 75%. ・ Press Vec (VECTOR SCOPE) to display the Vector scope. VECT ・ Switch F7 (COLOR SYSTEM)> F2 (BAR) to 75%. F･2 F･7 F･2 Note: If F2 is not (COLOR SYSTEM), press VE (VECTOR SCOPE) twice. VECT ３．Variable scale display ON and ARIB CHECK MARKER setting ・ Press (up menu). F･7 ・...
Page 16 ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 CIE DIAGRAM display WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS ＞ (VECTOR DISPLAY) ＞ CIE DIAGRAM F･1 (VECT INTEN/CONFIG)＞ F･1 VECT Color triangle setting F･2 F･2 F･1 (TRIANGLE2) ＞ Yellow standard scaler can be displayed (CIE DIAGRAM SCALE) ＞ (TRIANGLE1), Triangle standard name display F･2 F･5 F･4...
Page 17: 5Bar Gamut Display
ＬＶ５６００/ＬＶ７６００ Quick Manual 5BAR Gamut display F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS The 5BAR gamut display can display RGB and composite gamut errors separately. 5BAR Display F･1 Change VE (VECTOR)> F1 (VECT INTEN / CONFIG)> F1 (VECTOR DISPLAY) to 5BAR. F･1 VECT F･1 Note: If you press VEC (VECTOR) and F1 is not (VECT INTEN / CONFIG), press VEC (VECTOR) twice. VECT VECT 5BAR Display 5BAR setting In Stat (STATUS)> F5 (STATUS SETUP), change the tab to Error setup and set as below. F･5 STATUS ERROR SETUP3...
Page 18: Picture Display
ＬＶ５６００／ＬＶ７６００ Quick Manual Picture display F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Japanese subtitle display function Japanese subtitles can be simply displayed on the picture. F･1 Set PIC (PICTURE)> F1 (PIC CONFIG)> F5 (SUPER IMPOSE)> F1 to ARIB. F･5 F･1 Note: ● If you press PIC (PICTURE) and F1 is not (PIC CONFIG), F･1 press PIC (PICTURE) twice. ● When the input format is 3G‐B, F5 (SUPER IMPOSE) is not F･5 displayed. HD / SD / ANALOG / CELLULAR can be selected with F2 (FORMAT). F･2 これはリーダー電子株式会社 F･2 You can select 1/2 with F2 (LANGUAGE).
Page 19: Cinelite（% Display
(%DISPLAY SETUP) F･2 ・ F･1 (MEASURE NUMBERS)： Measurement point setting to display, P1, P1+P2, P1+P2+P3 ・ F･2 (MEASURE POSITION)： Select the measurement point to move the cursor, use to move cursor VPOS HPOS ・ F･3 (MEASURE SIZE)：measurement size choose, 1x1(1 Pixel), 3x3 (3x3 Pixel averaging, 9x9 (9x9 Pixel averaging) ・ F･4 (UNIT SELECT)： Brightness level value display setting, Y%, RGB%, RGB255, CV, CV(DEC), HDR (*HDR→With option for LV5600‐SER23(HDR), HDR setting for ON is available.) ・ F･6 (SELECT CH)：display channel switch CINELITE ADVANCE FUNTION F･4 ＞ F･2 (CINELITE/HDR) ＞ (CINELITE ADVANCE) ＞ ON ＞ Measurement points set on CineLite screen ＞ P1 to P3 and REF as vector waveform screen and video signal markers can be displayed in conjunction with the waveform screen.
Page 20: Cinezone
ＬＶ５６００/ＬＶ７６００ Quick Manual Cine Zone F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS The cine zone has three functions. 1. The gradation display function, which replaces the brightness level of the picture with the color and displays. It shows the brightness distribution. 2. Saturation is understood by the function that sets a threshold for the brightness level and displays the part above or below it. 3. The search function displays the set brightness level in green and you can see the set brightness from the picture. [mV] Level Specified level 100% Thrishold 50% Green Threshold Blue 0%...
Page 21: Focus Assist
ＬＶ５６００/ＬＶ７６００ Quick Manual Focus Assist F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5600‐SER25, LV7600‐SER25) S‐CUT F･D RECALL INPUT VPOS HPOS The focus assist display highlights the amount of detected edges to make it easier to check the focus. (Note: This is not displayed when PICTURE MODE is FULL FRM.) Focus assist display Focus assist setting Press Pic (PICTURE)＞ F4 F･4 (FOCUS) １．Display mode selection F1 (SIZE) (Display size is selected.) F･1 FIT/REAL/x2 ２．Focus Assist ON / OFF F2 (FOCUS ASSIST) (Set the focus assist display on and off.) F･2 ON/OFF ３．Detection sensitivity selection F3 (SENSITIVE) (Sets the detection edge sensitivity.)
Page 22: Hdr Display
ＬＶ５６００／ＬＶ７６００ Quick Manual HDR display （no.1） F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5600‐SER23, LV7600‐SER23) S‐CUT F･D RECALL INPUT VPOS HPOS HDR system setting ・Select SYS (SYSTEM)> F1 (SIGNAL IN OUT)> HDR and set HDR MODE to HLG, PQ, S‐Log3, C‐Log, or Log‐C F･1 ＨＤＲ according to the input signal. ・Ref.Level is the level setting at the boundary between HDR and SDR. Select a fixed value or put a check mark in VARIABLE to enable variable range. (The variable value can be changed by PIC > F2 (CINELITE / HDR)> F2 (CINEZONE SETUP)> F4 (REF [%]).) F･2 F･2 F･4 ・Range can be selected from Narrow and Full.
Page 23 ＬＶ５６００/ＬＶ７６００ Quick Manual HDR display （no.2） F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI (LV5600‐SER23, LV7600‐SER23) S‐CUT F･D RECALL INPUT VPOS HPOS HDR ZONE display ・After setting HDR System, set PIC (PICTURE)> F2 (CINELITE / HDR)> F1 (CINEZONE DISPLAY) to CINEZONE. F･2 F･1 F･2 Note: If you press PIC (PICTURE) and F2 is not (CINELITE / HDR), press PIC (PICTURE) twice. ・ Turn on F4 (HDR ZONE). F･4 ・ When F2 (CINEZONE SETUP) is pressed, UPPER, REF, and LOWER values are displayed in the upper left. F･2 ・ The threshold of UPPER can be changed by changing F2 (UPPER). Areas that exceed the threshold are ...
Page 24: Audio
ＬＶ５６００/ＬＶ７６００ Quick Manual AUDIO F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS (LV5600‐SER03, LV7600‐SER03) Press (AUDIO) AUDIO AUDIO mapping setting F･7 Note: If F7 is not (MAPPING), press Au (AUDIO) twice. AUDIO Set Target in Au (AUDIO)> F7 (MAPPING). F･7 TARGET ・INPUT： EMB AUDIO： Measurement of embedded audio for SDI INPUT EXT AUDIO： Measurement of external audio for DIGITAL AUDIO INPUT ANALOG：...
Page 25: Status
ＬＶ５６００/ＬＶ７６００ Quick Manual STATUS F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS Press (STATUS). STATUS Note: ・ If the display is different from the below even if you press Sta (STATUS), press sta (STATUS) twice. STATUS STATUS ・For 4 screens, change the DISPLAY setting. Set IN (INPUT)> F7 (DISPLAY) to SINGLE. F･7 INPUT ●SIGNAL Displays as “DETECT” or “NO SIGNAL” to check whether the SDI signal is connected or not In the case of "NO SIGNAL", the following items are not displayed. ●FORMAT/SUB IMAGE FORMAT It shows the signal format. Usually, it is the blue one. If you put the incorrect signal format, it will be shown in red. Also SDI input cannot be processed. ●Freq (Frequency deviation) Display Interface sampling frequency deviation Normally it is displayed in light blue, but by turning on Frequency Error on the ERROR SETUP 1 tab, It turns red when it exceeds ±...
Page 26: Payload Id/Srlive Metadata Display
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Payload ID display AUDIO STATUS WFM VECT MULTI SR Live Metadata display F･D RECALL S‐CUT INPUT VPOS HPOS PAYLOAD display setting PAYLOAD can be displayed by pressing Sta (STATUS)> F4 (ANC PACKET)> F1 (PACKET F･4 F･1 STATUS ANALYSYE)> F2 (PAYLOAD ID). F･2 ※Note: If you press Sta (STATUS) and the STATUS screen is not displayed, or if (ANC PACKET) is STATUS F･4 not displayed on F4 , press Sta (STATUS) twice. STATUS HLG / PQ Colorimetry BT.2020 / BT.709...
Page 27: Event Log
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 EVENT LOG AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS This can be displayed by (STATUS)> (EVENT LOG). F･1 STATUS In the event log, the events that have occurred are displayed in a list. Note: ・ If the STATUS screen is not displayed by pressing Sta (STATUS), press Sta twice and then F1 STATUS F･1 STATUS (EVENT LOG). ・The event detection target is for all the channels of from currently selected A to D. However, when measuring 3G‐B‐DS, 3G (DL) ‐4K, 12G, only events currently detected will be detected. ・ F･1 (LOG)Setting for START・STOP ・...
Page 28: Phase Difference Measurement
ＬＶ５６００/ＬＶ７６００ Quick Manual Phase difference measurement F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS Phase difference measurement Setting (Not including 12G‐SDI) ＞ F･2 (SDI ANALYSIS)＞ F･2 (EXT REF PHASE) STATUS As a reference signal for phase difference measurement can be selected from (REF SELECT) EXT or SDI F･1 F･7 EXT REF is Black Burst or Tri‐level Sync on EXT REF and SDI is SDI signal applied on SDI A input signal. ＞ (SELECT CH) ＞Choose When the System setting is SD / HD / 3G‐A / 3G‐B‐DL, F･6 I N P U T...
Page 29: Av Phase (Lip Sync)
ＬＶ５６００/ＬＶ７６００ Quick Manual AV PHASE F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI (Lip Sync) F･D RECALL S‐CUT INPUT VPOS HPOS AV PHASE setting AV PHASE (Lip Sync: Video and Audio delay) can be confirmed by inputting a lip sync pattern and measuring it. The test pattern can be output from the LV5600‐SER24, LV7600‐SER24 TSG option or our sync generator LT4600A / LT4610 / LT4611 (with LT4611SER22). A delay occurs when the test pattern is transmitted via a microwave or IP line. AV phase measurement can be performed by Sta (STATUS)> F2 (SDI ANALYSIS or SDI / IP ANALYSIS)> F3 F･2 F･3 STATUS (AV PHASE). Note: If you press Sta (STATUS) and the STATUS screen does not appear, press Sta twice, then F2 (SDI STATUS F･2 STATUS ANALYSIS or SDI / IP ANALYSIS) and then F3 (AV PHASE). F･3 F･1 You can change the scale max value setting with F1 (SCALE MAX).
Page 30: Eye
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS （LV5600‐SER02） Switching between EYE and JITTER ＞ (EYE/JITTER INTEN/CONFIG) ＞ (EYE/JITTER) select EYE or JITTER display F･1 F･1 F･1 Note: If F1 is not (EYE / JITTER INTEN / CONFIG), press EYE (EYE) twice. EYE display JITTER display （Note: The EYE function display of LV5600 and LV7600 is only compatible with SDI INPUT1. SDI INPUT2‐4 are not supported.） Filter setting （GAIN/FILTER/SWEEP）＞（FILTER） (EYE)＞ F･2 F･3...
Page 31 F･1 F･2 F･3 F･4 F･5 F･6 F･7 Layout Settings WFM VECT AUDIO STATUS MULTI (single) S‐CUT F･D RECALL INPUT VPOS HPOS Layout system settings ・DISPLAY setting: Set IN (INPUT)> F7 (DISPLAY) to SINGLE. F･7 INPUT ＊ The user layout can be freely changed with the mouse by adding layout options (LV5600‐SER26, LV7600‐SER26). Please refer to P33 and after for layout changes. Note: The layout called with this setting is the factory setting. If the layout settings have been changed individually, the corresponding layout will be called. Format TIME INPUT How to use the registered layout VECT settings USER 1 Press M and F1 to select F･1 STATUS MULTI LAYOUT USER 1‐6. Format...
Page 32: Call The Layout（Simul Setting
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Layout Settings WFM VECT AUDIO STATUS MULTI (SIMUL) S‐CUT F･D RECALL INPUT VPOS HPOS Layout system settings ・DISPLAY setting: Set IN (INPUT)> F7 (DISPLAY) to SIMUL. F･7 INPUT ・When the System setting is SD / HD / 3G‐A / 3G‐B‐DL and INP > F7 (DISPLAY) is SIMUL setting, F･7 INPUT The layout changes depending on ON / OFF of INP > F1 to F4 (A to D). F･1 F･4 INPUT How to use the registered layout settings F･1 Press M and F1 to select LAYOUT USER 1‐6. MULTI Example 1 INPUT （A）...
Page 33: Screen Capture
AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS １．Screen capture settings Change the display tab to CAP with SYS (SYSTEM)> F2 (SYSTEM SETUP)> F3 (NEXT TAB). F･3 CAPTURE&DISPLAY F･2 Use FD (FUNCTION DIAL) to set Capture Mode to “Screen” and select the file type to save to USB memory F･D F･1 from FILE TYPE “BMP”, “BSG” . At the end of the setting, press F1 (COMPLETE) to confirm. BMP ： The saved data can be confirmed on the PC. BSG ： The saved data can be read and displayed on the LV5600 and LV7600 main units. (PCAP is a mode to capture IP packet when LV5600SER05 is installed.) ２．Perform screen capture ・Display the screen to be captured. ・Press CA (CAPTURE). (When you press CA , the display screen is captured in the internal memory.) ・Select the following with F3 (DISPLAY). F･3 REAL: Displays the current input signal HOLD: View the captured data. Video waveforms, vectors and eye patterns are displayed in cyan. BOTH: The brightness of the current input signal and the capture data is halved, and they are displayed in layers. ３．Save to USB memory ・Insert the USB memory. The USB memory is recognized and U is displayed in the upper right of the screen. ・Press F6 (USB MEMORY)> F3 (STORE) to save to a USB memory. F･6 F･3 ４．Capture data display of USB memory ・Captured data saved in USB memory in BSG format can be returned...
Page 34: Frame Capture
ＬＶ５６００/ＬＶ７６００ Quick Manual Frame Capture F･1 F･2 F･3 F･4 F･5 F･6 F･7 WFM VECT AUDIO STATUS MULTI S‐CUT F･D RECALL INPUT VPOS HPOS １ Frame capture settings ・ Change the display tab to CAP with SYS (SYSTEM)> F2 (SYSTEM SETUP> F3 (NEXT TAB). F･3 CAPTURE&DISPLAY F･2 ・ Use FD (FUNCTION DIAL) to select Capture Mode as Video Frame (SDI Code Value) or Video Frame F･D (Converted). Check the FILE TYPE (DPX, TIFF, FRM) and Transport Frame Number (1 Frame, 16 Frame) required to F･1 save to the USB memory and press F1 (COMPLETE) to confirm at the end of the setting. ・Video Frame (SDI Code Value ): Capture frame data. ・Video Frame (Converted ): Capture frame data. When saving in DPX or TIFF format, the black level is offset to 0. ・DPX: ...
Page 35: Signal Output Settings
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Signal Out‐put AUDIO STATUS WFM VECT MULTI F･D RECALL S‐CUT INPUT VPOS HPOS (LV5600‐SER24,LV7600‐SER24) ＞ F･1 (SIGNAL IN OUT) (NEXT TAB) ＞Choose F･2 F･3 (PREV TAB), SDI OUT Use ＞ Output Mode ＞Mode: Test Signal F･D Set the Test Signal item using FD according to the output signal. F･D At the end of the setting, press F1 (COMPLETE) to confirm.
Page 36: Preset Register / Delete
ＬＶ５６００/ＬＶ７６００ Quick Manual F･1 F･2 F･3 F･4 F･5 F･6 F･7 Preset WFM VECT AUDIO STATUS MULTI Register / Delete S‐CUT F･D RECALL INPUT VPOS HPOS This is a function to register up to 60 panel settings. All items except Ethernet, remote, RS‐422/485, camera ID, date setting are registered. To register / delete settings, press M. . Use FD to select the preset number to register / delete. F･D F･2 F･3 To register, press F2 (STORE) on the registration screen. (Delete with F3 (DELETE).) Enter the registered file name by pressing F1 (COMENT INPUT). F･1 The input method is as follows, use function key and or mouse to control. F･D 入。 (CLEAR ALL) : Delete all the word F･1 F･2 (DELETE ): Delete the character on the cursor F･3 (INSERT) : Insert the selected character at the cursor position ...
Page 37: Change Layout－Basic
ＬＶ５６００/ＬＶ７６００ Quick Manual Change Layout – basic ‐ (LV5600‐SER26) You can change the lay out from each of the measurement screen (WFM, VECT, PIC, AUDIO, STATUS, EYE) (only one), and MULTI measurement screen (USER1～6) Use mouse from the front panel to set up ＞ Display the screen you want to change the layout. From WFM, VECT, PIC, MULTI (USER1) ＞ Right‐click the mouse on the screen ＞ Layout Layout Setup window Item window (ex: WFM,VECT,PIC and so on) Layout procedure Here, three basic examples and application examples are introduced. Basic example P.38 Procedure for changing the layout of MULTI (USER1) (adding audio items, etc.) ① Display of layout screen ② Item change from TIME to DATE in the upper right of the screen ③ Overlay the vector waveform on the picture ④ Add audio item ⑤ Add TIME to STATUS item ⑥ Confirm changes Application example P.40 Procedure to change the layout of MULTI (USER1) (simultaneous display of VECT and CIE charts) ① Display of layout screen ②...
Page 38: Change Layout（General）－Example
ＬＶ５６００/ＬＶ７６００ Quick Manual Change Layout（General） ‐ example ‐ (LV5600‐SER26,LV7600‐SER26) (example) change the layout from MULTI (USER1) (add audio item) ① Show the layout screen ② Item change from TIME to DATE in the upper right of the screen ③ Place vector display on picture display ④ Add audio measurements display ⑤ Add TIME to STATUS item display ⑥ Complete Before ② TIME → DATE ③ move VECTOR ④ add AUDIO ⑤ add TIME After...
Page 39: Change Layout (Process) －Example
ＬＶ５６００/ＬＶ７６００ Quick Manual Change Layout (process) ‐ example ‐ (LV5600‐SER26,LV7600‐SER26) ① Display of layout ② Change TIME at the upper right of F･1 a. Long Press ＞Press the screen to DATE (LAYOUT user1) MULTI (There are six layouts of USER 1 to USER 6 for multi a. Click the TIME item in the upper right of the screen display) and select it. b. Select LAYOUT of the window displayed by right (The color and letters of the TIME item frame change click on the measurement screen and display the to light blue, Select item in Layout Setup window to layout screen TIME.) b. Layout Setup window ＞ Choose LAYOUT DELETE key ＞ delete TIME c. Add Item ＞ Click on the DATE item in the tab. d. Change the size of DATE ＞Use the mouse to decide the place.
Page 40: Change Layout (General) －Example1
ＬＶ５６００/ＬＶ７６００ Quick Manual Change layout (general) ‐ example1 ‐ (LV5600‐SER26,LV7600SER26) (example) MULTI(USER1) How to change the layout? (Show VECT and CIE chart at the same time) ① Show the display ② Delete all the items ③ Add VECT item ④ Add CIE item ⑤ Finish Before MULUTI (USER1) Delete all the items, then add VECT and CIE Chart. ④ CIE ③ VECT After...
Page 41: Change Layout (Process) －Example1
ＬＶ５６００/ＬＶ７６００ Quick Manual Change layout (process) ‐ example 1 ‐ (LV5600‐SER26,LV7600‐SER26) ① Show the layout screen ② Delete all items ＞ Choose USER 1 F･1 a. Press MULTI a. Click the DELETE item at the bottom left of the (LAYOUT SELECT) (There are six multi displays from USER 1～USER 6) screen. The item displayed will disappear each time B. Right click on the measurement screen to display you click it. Click a few times to delete all displayed the window, select LAYOUT and display the layout items. screen. Choose LAYOUT ③ Add VECT ④ Add CIE chart ⑤ Finish a. Add Condition ＞ VECT tab ＞ choose VECT a. Add Condition ＞ VECT tab ＞ choose CIE Right‐click on the layout screen...
Page 42: Change Layout (General) －Example2
ＬＶ５６００/ＬＶ７６００ Quick Manual Change layout (general) ‐ example2 ‐ (LV5600‐SER26,LV7600‐SER26) (example) How to change EYE layout display? (EYE display and Jitter at the same time) ① Layout screen display ② Delete EYE/JITTER ③ EYE or Jitter item choose／add ④ Show Format, Input, Time item ⑤ Finish ② EYE/JITTER Before ④ add Format ④ add Input ④ add Time ③ EYE measure ③ Jitter measure After...
Page 43: Change Layout (Process) －Example2
ＬＶ５６００/ＬＶ７６００ Quick Manual Change layout (Process) ‐ example 2‐ (LV5600‐SER26,LV7600‐SER26) ① Layout screen display ② Delete EYE/JITTER item a. Click the TIME item in the upper right of the screen a. Press to show the screen b. Select LAYOUT of the window displayed by right and select it.(The color and letters of the TIME item click on the measurement screen and display the frame change to light blue, Select item in Layout Setup layout screen window to TIME. ) b. Layout Setup window ＞ Use DELETE key to delete Choose LAYOUT EYE/JITTER ③ choose／add ④ Format, Input, Time ⑤ Finish EYE and JITTER item item display a. Right click on the layout screen, SAVE. a. Add Condition ＞ EYE tab ＞ EYE ＞...
Page 44: Change Enhanced Layout －Basic
ＬＶ５６００/ＬＶ７６００ Quick Manual Change Enhanced layout ‐ basic ‐ (LV5600‐SER26,LV7600‐SER26) Enhanced layout is an extended function that can simultaneously lay out display measurement screens of up to 4 ch in one screen. You need mouse to use this function. Basic settings Enhanced layout display １． System setting F･1 (SIGNAL IN OUT) ＞ SDI IN SETUP1 SDI SYSTEM：2K Set up SD/HD/3G‐A/3G‐B‐BL ２． INPUT Setting INPUT SDI IN SETUP1 tab F･7 (DISPLAY)：SIMUL (A~D) ： Turn on the channel you want to display. F･1 F･2 F･3 F･4 ３．...
Page 45: Change Enhanced Layout －General
ＬＶ５６００/ＬＶ７６００ Quick Manual Enhanced layout ‐ General ‐ (LV5600‐SER26,LV7600‐SER26) With Enhanced Layout display in Basic setting, Enhanced layout is cleared all at once An example procedure for setting the layout as below. SDI B input block SDI C input block SDI A input block SDI D input block Enhanced layout measurement screen Enhanced layout screen Follow these steps as below １．Clear all the screen of enhanced layout and all the settings ２．SDI A input block setting ① SDI A input setting for PICTURE, WFM, VECTOR ② SDI A input setting for FORMAT, INPUT, TALLY‐1, TALLY‐2, TALLY‐EXT, LABEL‐1, LABEL‐2 ３．SDI B～SDI D block setting ① SDI A input for PICTURE ② SDI A input for FORMAT, INPUT, TALLY‐1, TALLY‐2, TALLY‐EXT, LABEL‐1 ４．Audio meter setting ５．Final Check→Finish...
Page 46: Change Enhanced Layout －Basic
ＬＶ５６００/ＬＶ７６００ Quick Manual Change enhanced layout – process ‐ (LV5600‐SER26,LV7600‐SER26) １．Show the enhanced screen and clean all setting Use mouse to right click ＞ Layout screen ＞ choose Enhanced layout screen ＞Choose Enhanced layout ＞ Next, delete parameter on enhanced layout ＞ALL CLEAR ２．SDI A input block setting SDI A input block setting is from Main item. Each place of item and size as below. ① SDI A input for PICTURE, WFM, VECTOR item setting ＞Layout‐1 Mode：PICTURE MODE ＞Layout‐2 Mode：WFM ＞Layout‐3 Mode：VECTOR Layout Main ＞＞click LAYOUT‐1 ＞move the window to the PICTURE place LAYOUT‐2 (WFM), LAYOUT‐3(VECTOR) as well ② Item setting for FORMAT, INPUT, TALLY‐1, TALLY‐2, TALLY‐EXT, LABEL‐1, LABEL‐2 On SDI A input ＞＞ click FORMAT, INPUT...
Page 47 ＬＶ５６００/ＬＶ７６００ Quick Manual Change enhanced layout ‐ process ‐ (LV5600‐SER26,LV7600‐SER26) ３．SDI B～SDI D Input Block Setting SDI B～SDI D Input block setting ＞ Sub item ＞Setting Each item and size are as follow. ① SDI B～SDI input PICTURE item setting ＞＞LAYOUT‐1 (SDI B Input PICTURE) Sub1 Layout ＞＞LAYOUT‐1 (SDI C Input PICTURE) Sub2 Layout ＞＞LAYOUT‐1 (SDI D Input PICTURE) Sub3 Layout Click ＞ SDI B～SDI D input ＞ PICTURE ＞Setting ② SDI B～SDI D input, TALLY‐1, TALLY‐2,TALLY‐EXT,LABEL‐1 item setting ＞...
Page 48: Display Assignment
ＬＶ５６００/ＬＶ７６００ Quick Manual Display Assignment （LV5600‐SER26,LV7600‐SER26） For display assignment, inputs 1 to 4 (BNC) can be freely assigned to measurement circuits A to D. BNC 1 BNC 1 Measuring circuit A BNC 2 WFM/PIC/VECT BNC 1 →Measuring circuit A BNC 3 /STATUS/EYE BNC 4 BNC 2 Measuring circuit B WFM/PIC/VECT BNC 2 →Measuring circuit B /STATUS/EYE BNC 3 Measuring circuit C WFM/PIC/VECT BNC 3 →Measuring circuit C /STATUS/EYE BNC 4 Measuring circuit D WFM/PIC/VECT BNC 4 →Measuring circuit D /STATUS/EYE Default setting: BNC1 to BNC4 are display assigned to circuits A to D. BNC 1 BNC 1 Measuring circuit A BNC 2 WFM/PIC/VECT BNC 1 → Measuring circuit A BNC 3 /STATUS/EYE BNC 4...
Page 49: Display Assignment －Basic
ＬＶ５６００/ＬＶ７６００ Quick Manual Display Assignment – basic ‐ (LV5600‐SER26,LV7600‐SER26) In display assignment display, one input signal can be assigned to multiple display channels no matter SDI signal or IP signal. Notice： LV5600‐SER26 is required SDI System must be SD/HD/3G‐A/3G‐B‐DL For IP Stream, SER05 10G IP INPUT is necessary Basic setting １． System setting (SIGNAL IN OUT) ＞ SDI IN SETUP1 F･1 ・SDI SYSTEM：Setting for 2K SD/HD/3G‐A/3G‐B‐BL ・Display Assignment：Setting (SDI1～4, IP Stream1～4) for display channel (Input‐A～D) ２． INPUT setting INPUT SDI IN SETUP1 tab (DISPLAY)：SIMUL F･7 F･2 F･3 F･4 F･1 (A～D): turn on the channel which you want to display...
Page 50: Display Assignment －Wfm
ＬＶ５６００/ＬＶ７６００ Quick Manual Display Assignment ‐ WFM ‐ (LV5600‐SER26,LV7600‐SER26) Setting overview １．SYSTEM Setting ＞display channel Input‐A, Input‐B ＞ INPUT1 ２．INPUT Setting ＞display channel Input‐A, Input‐B ＞ 2 display screen ３．WFM Setting ＞display channel Input‐A ＞ COLOR MATRIX ＞ COMPOSITE How to setting? ① System Setting ＞ (SIGNAL IN OUT) ＞ F･1 SDI IN SETUP1 ・SDI System：2K SD/HD/3G‐A/3G‐B‐DL ・Display Assignment：Input‐A (SDI 1), Input‐B (SDI 2) F･D to setting ＞ (COMPLETE) ＞ Finish F･1...
Page 51: Display Assignment －Pic
ＬＶ５６００/ＬＶ７６００ Quick Manual Display Assignment ‐ PIC ‐ （LV5600‐SER23/26, LV7600‐SER23/26） Setting overview １．SYSTEM Setting ＞display channel Input‐A, Input‐B ＞ INPUT1 ２．SYSTEM Setting ＞display Input‐A ＞ HDR Mode ＞ HLG setting ３．INPUT Setting ＞display channel Input‐A, Input‐B ＞ 2 display screen ４．PIC Setting ＞display channel Input‐A ＞ HDR ZONE display ＞ ON How to setting? ① System Setting ＞ (SIGNAL IN OUT) ＞ F･1 SDI IN SETUP1 ・SDI System：2K SD/HD/3G‐A/3G‐B‐DL...
Page 52: Operation Kay
ＬＶ５６００/ＬＶ７６００ Quick Manual Operation Key With the operation keys, frequently used items (waveform format, gain and vector gain, etc.) can be easily changed with the soft keys (icons) using the mouse or touch panel. ・Operation key setting It is set on GEN of SYS > F2 (SYSTEM SETUP) F･2 GENERAL Set the Auto Off function of the On‐screen Menu to Off. Turn on the Operation Key. When using the touch panel, select Enable of Touch Panel. Confirm the setting with (COMPLETE). F･1 ・Operation key operation Press (WAVEFORM) to display the waveform. The operation key is displayed at the bottom right of the screen. Click it with the mouse or touch panel. FORM： Waveform and vector format changes OVLAY： Change waveform overlay settings FILTER： Change waveform filter settings GAIN： Waveform and vector gain change GAIN‐MAG： Waveform and vector scaling SWEEP： Change waveform sweep SWEEP‐MAG： Set the horizontal magnification SHORT CUT： Various function assignments such as cursor and capture. ・ Operation key setting OPERATION KEY Change the display tab to Ope Kay with SYS > F2 (SYSTEM SETUP)> F3 (NEXT TAB). F･2 F･3 F･1...
Page 53 ＬＶ５６００/ＬＶ７６００ Quick Manual IP No.1（LV5600‐SER05, LV7600‐SER05）１．Use display assignment to switch from SDI signal to IP signal. （SIGNAL IN OUT）＞ (SYSTEM) ＞ F･1 SDI IN SETUP1 ・SDI SYSTEM: Set to 2K, SD / HD / 3G‐A / 3G‐B‐BL. ・Display Assignment：Set the signals to be measured (IP Stream1 to 4) to the display channels (Input‐A to D). ・When setting IP Stream 1 to Input A Set Input A of Display Assignment to IP Stram1. F･1 Press COMPLETE. SDI IN SETUP1タブ 2. ST2110 settings when IGMP is not JOIN to PTP (1) IP SETUP （SIGNAL IN OUT）＞ (SYSTEM) ＞ F･1 IP SETUP1 ・Type :ST2110 ・Redundancy Mode：Off ・Video, Audio, ANC: No check marks IP SETUP1 tab F･1 Press COMPLETE. (2) IP address setting in IP STATUS (STATUS) ＞ F･2 SDI/IP ANALYSIS＞...
Page 54 ＬＶ５６００/ＬＶ７６００ Quick Manual IP No.２（LV5600‐SER05, LV7600‐SER05 ） 2. ST2110 settings when IGMP is JOIN to PTP (1) IP SETUP （SIGNAL IN OUT）＞ F･1 (SYSTEM) ＞ IP SETUP1 ・Type :ST2110 ・Redundancy Mode：Off ・Set the Destination Address and Destination Port of video and audio respectively. F･1 Press COMPLETE. ・ With these settings you can see the decoded video and audio. ・ PTP status, a timing between PTP and video / PTP and audio can be measured. IP SETUP1 tab ●Packet Jitter (STATUS) ＞ F.2 SDI/IP ANALYSIS＞ F.4 IP＞ F.2 Packet Jitter F･2 F･4 F･2 STATUS Information about each stream being decoded Numerically displays maximum, minimum, and ...
Page 55 ＬＶ５６００／ＬＶ７６００ Quick Manual URL：https://www.leader.co.jp email: sales@leader.co.jp ※Product specifications are subject to change without notice. Ver. 1.1 作成年月日 2020年1月21日営業技術...
