Sempre GT-WS-08s Operating Instructions Manual

Digital radio-controlled weather station
Hide thumbs
Table of Contents

Advertisement

Quick Links

11/13

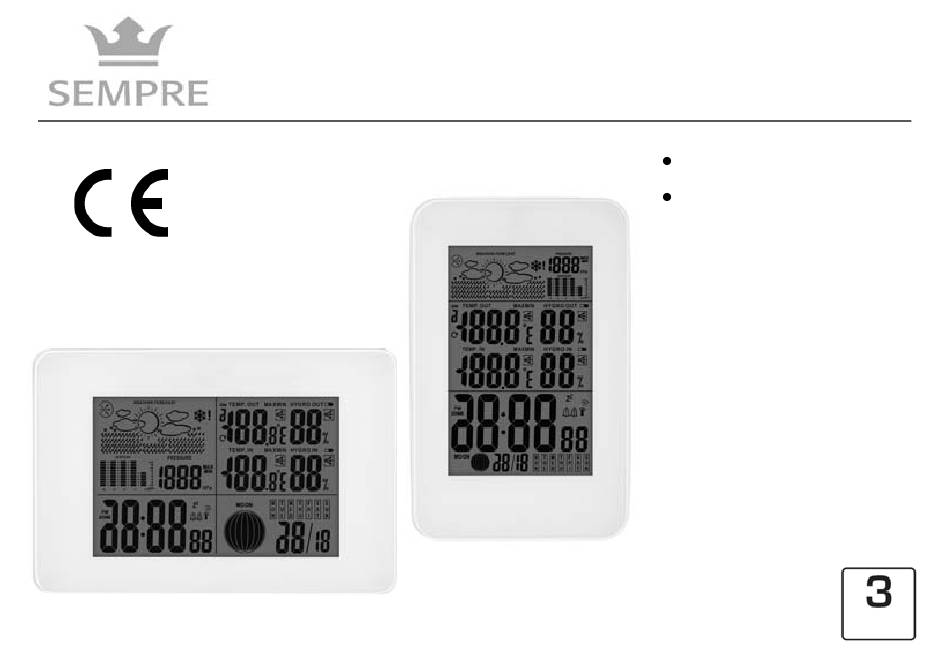

Digital radio-controlled weather station
Operating instructions
Warranty
Base station:
GT-WS-08s
GT-WS-08w
GT-WS-09s
GT-WS-09w
Radio sensor:
GT-WT-02
YEARS
WARRANTY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT-WS-08s and is the answer not in the manual?

Questions and answers

Summary of Contents for Sempre GT-WS-08s

  • Page 1 Digital radio-controlled weather station Operating instructions Warranty Base station: GT-WS-08s GT-WS-08w GT-WS-09s GT-WS-09w Radio sensor: GT-WT-02 YEARS WARRANTY 11/13...

  • Page 2: Table Of Contents

    Contents Safety ................4 Contents of delivery .
  • Page 3 Contents Weather data ..............31 Temperature and humidity .

  • Page 4: Safety

    Safety Please read carefully through the following information and keep these instructions, in case you need to refer to them later. If you pass the product on to someone else, please also include these instructions. Designated use The weather station - comprised of the base station and radio sensor - displays various weather data (air pressure, temperature, etc.) from the vicinity.
  • Page 5 This device is not intended for use by persons (including children) with limited physical, sen- sory or mental abilities or lacking experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions for use of the device from this person in advance.
  • Page 6 Rubberized areas as safeguarding against slip are located at the stud of the base station. As the furniture/floor surfaces are made of diverse materials and are treated with diverse care products, it cannot be entirely ruled out that some of these materials contain components, which could attack and soften the rubber lining.

  • Page 7: Contents Of Delivery

    Contents of delivery Weather station, comprised of the base station and radio sensor 2 batteries type LR6 (AA) / 1.5 V (base station) 2 batteries type R03 (AAA) / 1.5 V (radio sensor) Operating instructions with warranty Quick Reference Guide This is what the weather station offers Weather station Precise time through reception of a time indicator signal...
  • Page 8 Weather trend display and temperature trend display Current and historical air pressure trend display Symbols for the weather forecast Moon phase display Battery control display Sensor Temperature display in °C/°F Humidity display Range of up to 100 metres (in open space)

  • Page 9: Overview Of Weather Station

    Overview of weather station Base station - view from front and top Display, see page 26 Illuminate display / activate alarm repeat function...
  • Page 10 Base station - right side view Display stored MIN and MAX data Set values (reduce) Start radio reception manually Set values (increase) Switch alarm function on and off Activate setting mode Save entered settings Query weather data from the existing radio sensors...
  • Page 11 Base station - back Set air pressure at location (reduce) Activate setting mode for air pressure Set air pressure at location (increase) Battery compartment With the other type of weather station, the BARO buttons are on the left side.
  • Page 12 Radio sensor Battery compartment Change degree of measurement for temperature Accelerate radio transmission to Set sensor number base station manually (transmission channel)

  • Page 13: Initial Use

    Initial use Inserting batteries Proceed in the order shown and first insert the batteries into the radio sensor and only afterwards into the base station. Only this way, can the weather station function fault- lessly. Radio sensor 1. Remove the battery compartment lid on the back of the radio sensor.
  • Page 14 - Do not use any rechargeable batteries, as their voltage is too low (only 1.2 V instead of 1.5 V). This influences the measuring precision, among other things. - Preferably use alkaline batteries instead of zinc carbon batteries. Alkaline batteries last longer, particularly with low outdoor temperatures.

  • Page 15: Setting Air Pressure

    4. Keep the CHANNEL button pressed on the base station until the display for weather data OUT flashes. The base station will now access the weather data for all available radio sensors. Base station 1. Fold open the battery compartment lid. 2.

  • Page 16: About The Time Signal

    2. Using the BARO- / BARO+ buttons, set the air pressure. Pay attention to what is shown in the display. 3. Then, press SET/BARO again. If you keep the BARO- / BARO+ pressed, the values move forward more quickly. About the time signal General The radio-controlled clock that is integrated into the weather station receives its radio signals from the time indicator signal MSF.

  • Page 17: Start Radio Reception Manually

    Start radio reception manually When the batteries are inserted in the base station, all indications will briefly been shown in the display. The display will also briefly illuminate and sound a beep tone. After this, the device switches to receiving, whereby the radio wave number shows the quality of the reception: The more radio waves are displayed, the better the reception.

  • Page 18: Set Time And Date Manually

    Set time and date manually 1. Keep the MODE/SET. pressed until the year flashes in the display. 2. Using the +/ or -/ /ZONE buttons, set the year. 3. Press the MODE/SET. button to save the setting. The month flashes in the display. 4.

  • Page 19: Start Radio Reception Manually

    With the 12-hour format, the afternoon hours are identified in the display with PM. 12. Using the +/ or -/ /ZONE buttons to set the required time format. 13. Press the MODE/SET. button to save the setting. In the display, the zone setting (+11/-11) flashes. 14.

  • Page 20: Select Location

    If the reception was not successful, the reception symbol disappears after several minutes and the time in the display continues to run normally. With successful reception, the radio-controlled alarm clock sets itself to the time of the time signal transmitter. If you have already carried out manual time and date settings, these are automatically adjusted.
  • Page 21 General The base station and radio sensor exchange data through a radio frequency. Therefore, the location is crucial to the range of the radio connection. Please note: The maximum allowable distance between the base station and the sensor is 100 metres. However, this range is only possible with "direct visible contact".
  • Page 22 Regarding the radio reception between the time signal transmitter and the base station, please note the following points: Preferably set up the base station near a window. Keep a distance to televisions, PCs and monitors. Base stations of cordless telephones should also not be in the direct vicinity of the weather station.
  • Page 23 Base station DANGER When installing on a wall, please ensure that no electric cables, gas and water pipes are not buried beneath the wall surface before drilling any holes.
  • Page 24 The base station can be stood up or suspended. The base station has a fold-down stand (A) and two suspension loops (A) for this purpose. The stand has three locking positions. Preferably set up or suspend the base station near a window. This is usually the best recep- tion site.
  • Page 25 Radio sensor Stand or suspend the radio sensor at a location where it is protected from direct weather influences (rain, sun, wind, etc.). Suitable locations are e.g. below a canopy or in a carport.

  • Page 26: Displays

    Displays Base station...

  • Page 27: Radio Sensor

    Display, see page 26 Date and day of week display, see page 28 Moon phase display, see page 39 Date and alarm time display, see page 28 Air pressure display, see page 35 Weather forecast, see page 34 Radio sensor Symbol for radio link be- tween base station and Temperature...

  • Page 28: Time Functions

    Time functions Time and date 12-hour format Symbol for radio reception from time Time zones signal transmitter Time in hours, minutes + seconds Current day of week Day and month...

  • Page 29: Alarm Function

    Alarm function You can set two different alarm times with the base station For example, you can be woken up in the morning and after your afternoon nap, by activating both alarms. 1. Select the required alarm time by pressing the MODE/SET. button (A1 or A2). 2.
  • Page 30 Press 3x: A1 and A2 are active is displayed Press 4x: A1 and A2 are no longer active is extinguished End alarm At the set time, you will be woken up by an alarm signal, whereby the signal will increase in intensity, the longer the alarm sounds.

  • Page 31: Weather Data

    Weather data Temperature and humidity This area is divided into two parts in the display. The top section OUT [OUTSIDE] shows the val- ues measured by the radio sensor, the bottom section IN [INSIDE ] shows the data recorded by the base station.
  • Page 32 Current transmission channel to the base station Stored maximum and minimum values Trend for temperature, see page 31 Battery replacement display, see page 39 Trend for humidity, see page 31 Humidity in % Degree of measurement for temperature °C or °F Temperature Indication that the sensors are automatically queried sequentially (only if more than one sensor is being used)
  • Page 33 Display area Base station Stored maximum and minimum values Trend for temperature, see page 34 Battery replacement display, see page 39 Trend for humidity, see page 34 Humidity in % Degree of measurement for temperature °C or °F Temperature With the MIN/MAX button, you can obtain a display of the highest and lowest values for the last 24 hours in relation to the temperature and humidity.

  • Page 34: Weather Trend

    Press 1x: the MAX values are displayed Press 2x: the MIN values are displayed Press 3x: normal display The MIN and MAX values are automatically deleted each night at 12:00 a.m. The weather station also has a frost alarm. For additional information on this, see page 37.

  • Page 35: Air Pressure

    Air pressure The trend of the air pressure within the last 12 hours is displayed in the form of a bar dia- gram. The scale goes from -1 (1 hour ago) to -12 (12 hours ago). Next to the bar diagram, the current air pressure is displayed in hPA (hectopascals). Press the MIN/MAX button in order to have the highest stored value during the last 12 hours displayed.

  • Page 36: Weather Forecast

    Weather forecast After initial operation, the details regarding the weather forecast cannot yet be used for approx. 12 hours, as the weather station needs this time to gather and evaluate the weather data. The weather forecast results from the gathered weather data and the measured changes in air pressure.
  • Page 37 cloudy rainy Frost warning - When the radio sensor measures a tem- perature of between + 1 °C and -1 °C, a risk of frost exists and a snowflake symbol flashes. If the temperature falls below -1 °C for a constant period of time, the snowflake symbol is displayed steadily.
  • Page 38 If the symbols for the weather forecast start to flash and the air pressure falls, this is an indication of weather deterioration, e.g. because of a storm front closing in. However, the requirement for a correct display is that you have set the air pressure at your loca- tion, see page 15.

  • Page 39: Moon Phases

    Moon phases The displayed moon phases are automatically updated with the date full moon waning moon new moon new moon waxing moon full moon Other functions Switch light on Press the LIGHT/SNOOZE button in order to switch on the display lighting for several seconds.

  • Page 40: Change Degree Of Measurement For Temperature

    When the symbol for the battery change is displayed, the inserted batteries in the base station (symbol next to IN)/radio sensor (symbol next to OUT) need to be replaced with new ones. Then, proceed as described from page 13 . Please note: The battery replacement display for the radio sensors (symbol next to OUT) indicates the battery replacement for the respective displayed channel number.

  • Page 41: Reset Weather Station

    Reset weather station If obviously incorrect values are being displayed, you should reset the weather station to its fac- tory settings. 1. Remove the batteries from the weather station and reinsert them. When the batteries are inserted in the base station, all indications will briefly been shown in the display.

  • Page 42: Have Time Displayed In A Different Time Zone

    Have time displayed in a different time zone The requirement for this is that you have also entered the time in a second time zone, see from page 18. 1. Press the -/ /ZONE button if you intend to have the time in a second time zone displayed. Next to the time, ZONE is displayed.
  • Page 43 In the western hemisphere, it is earlier than in Europe and in the eastern hemisphere, it is later. In the diagram, each vertical line represents one our more or one hour less (-). For example, if you intend to set the time for a country that is 7 hours east of your location, you must enter +7 (hours) as a value.

  • Page 44: Faults And Rectification

    Faults and rectification Faults Possible causes and rectification The MSF signal for the time cannot be - Check the location, see page 20. received. - Start the radio reception manually, if necessary, see page 17. - Set the time manually, see page 18. The temperature display of the sensor - Check whether the sensor is exposed to direct sun- appears too high.

  • Page 45: Technical Data

    - The values are above/below the measurement range, display instead of the measured values see "Technical data". for temperature/humidity. Technical data Base station: GT-WS-08s / GT-WS-08w / GT-WS-09s / GT-WS-09w Batteries: 2 x LR6 (AA) / 1.5 V / max. 41 mA Measurement range of the temperature 0 °C to +50 °C...

  • Page 46: Cleaning

    Sensor: GT-WT-02 Batteries: 2 x type R03 (AAA) / 1.5 V / max. 10 mA Measurement range of the temperature: -15 °C to +60 °C Transmission frequency 433 MHz Range: max. 100 metres (in open space) As our products are constantly being further developed and improved, design and technical changes are possible.

  • Page 47: Disposal

    Disposal Dispose of the packaging in an environmentally appropriate manner. The appliance must not be disposed of with household waste. If the appliance should no longer usa- ble, remove the batteries from the appliance. Ask the local waste removal association about the necessary disposal measures.

  • Page 49: Warranty Card

    Warranty card YEARS WARRANTY Productname: Radio-controlled weather station Please send your completed Warranty Card to: Base station: GT-WS-08s GT-WS-08w GT-WS-09s Globaltronics Service Centre GT-WS-09w c/o Bridges London Radio sensor: GT-WT-02 PO BOX 1125 Bromley Date-Code: 11/13 BR1 9TW Product no.:...
  • Page 50 Warranty card Model: Base station: GT-WS-08s, GT-WS-08w, GT-WS-09s, GT-WS-09w, Radio sensor: GT-WT-02 The appliance has been manufactured with the greatest care. The warranty period is three years from the date of purchase. Please retain the sales receipt as proof of purchase as without it the warranty claim cannot be processed.
