Sealey AUTO SERVICE LINE TA125 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS,
AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO
DO SO MAY CAUSE DAMAGE, OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY.
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a
recycle centre and disposed of in a manner which is compatible with the environment.
When the product is no longer required, it must be disposed of in an environmentally protective way.
Take to your local recycling centre to be disposed of properly.
Do not incinerate battery as it may explode when exposed to fire.
Do not attempt to open battery.
WARNING! Suitable only for automotive circuits. Not suitable for 110 - 230V applications.
p
1. SAFETY INSTRUCTIONS
Observe standard workshop safety procedures when using the TA125.

WARNING!
p
WARNING! DO NOT exceed
p
Ensure vehicle ignition is switched OFF before connecting or disconnecting TA125.

Keep the work area clean, uncluttered and ensure there is adequate lighting. Keep tools and other

items away from the engine, and ensure you can see the battery and working parts of engine clearly.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.

Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery. Contain or tie back

long hair.
Keep children and unauthorised persons away from the working area.

DO NOT disassemble. TA125 must be checked by qualified service personnel only.

DO NOT get TA125 wet or use in damp or wet locations or areas where there is condensation.

DO NOT use TA125 for any purpose other than for which it is designed.

DO NOT pull by the cables to free from the fuse terminals.

DO NOT operate TA125 if damaged.

When not in use store in a safe, dry, childproof location.

WARNING!
p
possible conditions and situations that may occur. It must be understood that common sense and
caution are factors which cannot be built into this product, but must be applied by the operator.
2. INTRODUCTION / SPECIFICATION

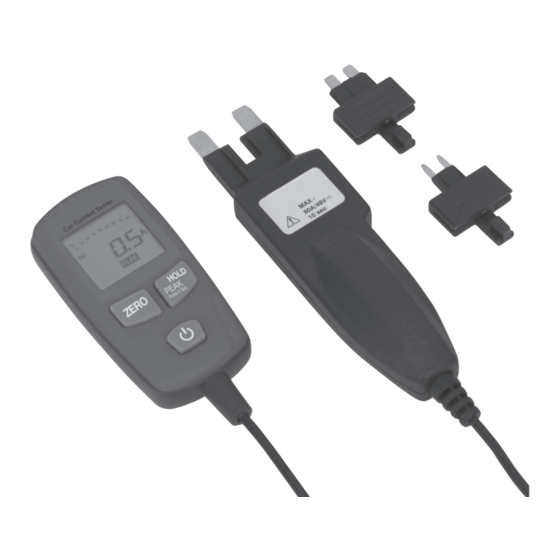

Fast, accurate and safe current measurement at the
fuse box. Ideal for fault-finding on car and commercial
vehicle electrical circuits. Includes hold and peak
functions for detecting current surges.
Features large LCD display with digital and
graphical current read out. Plugs straight into
the vehicle's fuse board and supplied with
Mini, Standard and Maxi style blade adaptors.
Range: ....................... 0-80A - 0-48V
Accuracy: ................... ± 2% reading + 4 digits
Fuse Type: ................. Mini, Standard, Maxi
Max Load: .................. 80A/48V for Max 10sec
Operating Temp: ........ 0°C to 50°C (32°F to 122°F)
Storage Temp: ........... -20°C to 60°C (-4°F to 140°F)
Relative Humidity: ...... <70% operating, <80% storage
Operating Altitude: ..... 7000ft (2000 meters) maximum
Environmental Protection.
The Fuse blade may become hot during testing. Allow to cool before removing.
Maximum Load: 80A/48V for Max 10sec.
The warnings, cautions and instructions referred to in this manual cannot cover all
INSTRUCTIONS FOR:
CURRENT TESTER 80A
MODEL NO: TA125
TA125 Issue No: 1 - 11/11/08
